Product Details

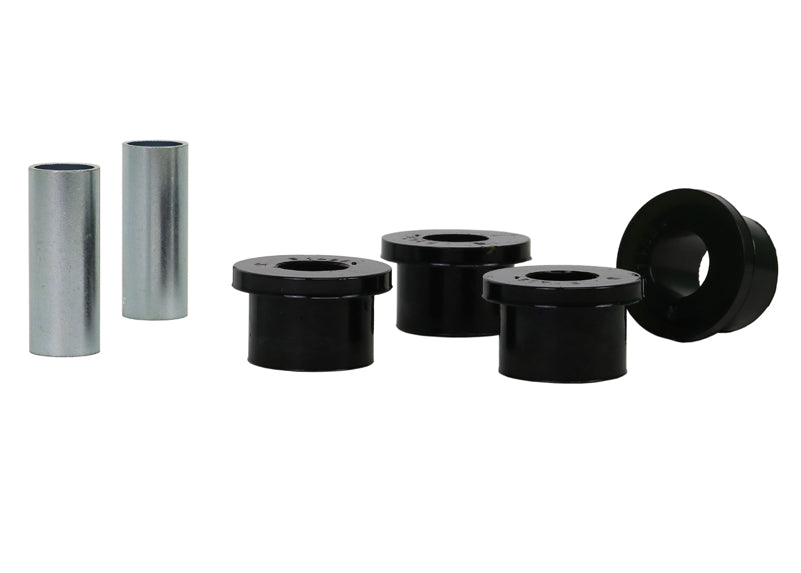

This Whiteline Front Lower Inner Front Control Arm Bushing Kit fits the 1989-2000 Suzuki Swift. It goes on the front of the vehicle. It is listed for the SA/MA chassis. The part number is W51458. In the box: 4 bushings and 2 tubes.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Expect a difficult job of about 2 hours. Plan on a wheel alignment afterward. To go with it on the Swift, see 12mm Adjustable Front Camber Bolts, Rear Control Arm Lower Inner Front Bushing, and Front Sway Bar Link Lower Bushing.
Features
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Install guide: Whiteline packs an install guide with it.
- Material: Polyurethane construction.
Specifications
| Part Number | W51458 |
| Part Name | Control Arm Bushings |
| Vehicle | 1989-2000 Suzuki Swift |
| Chassis Code | SA/MA |
| Bushing 1 Inner Diameter | 16.2 mm |
| Bushing 1 Outer Diameter | 33.4 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
