Product Details

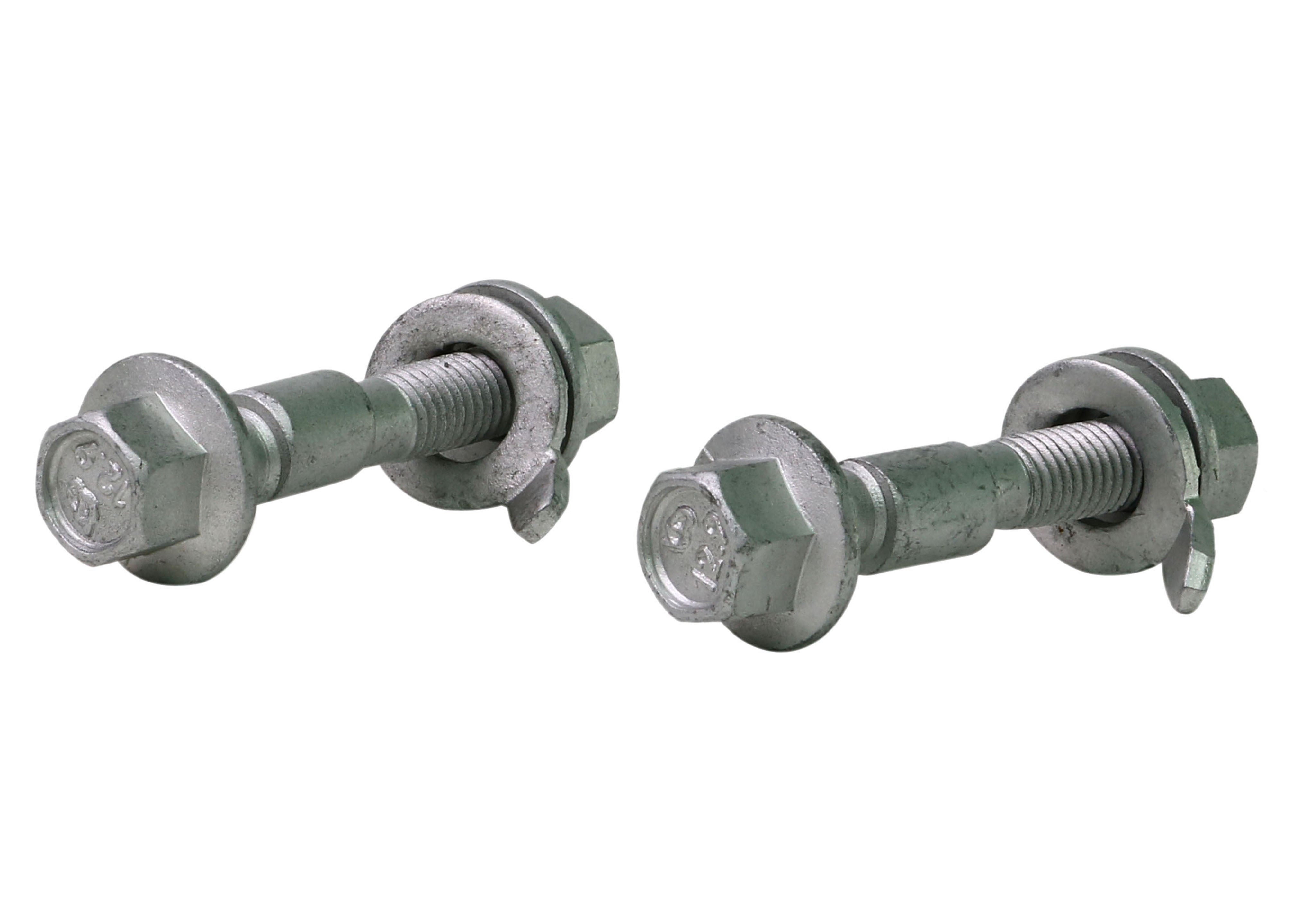

These Whiteline 12mm Adjustable Front Camber Bolts fit the 1990-1994 Suzuki Swift GS, GT (EA/SA). In the box: 2 bolts. Whiteline's note for this fit: Adds +/- 0.75 degrees Camber. Position: front. Part number KCA412.

Camber is how far the top of the wheel leans in or out when you look at the car from the front, and it decides how the tire meets the road. Many cars leave little or no room to change it at the factory. A camber bolt replaces a standard mounting bolt with an adjustable one, so an alignment shop can move the setting into a better range.

Installation is rated difficult, with about 1 hour of work listed. An alignment is required after installation. To go with it on the Swift, see Front Sway Bar Link Lower Bushing, Rear Control Arm Lower Outer Bushing, and Front Lower Inner Front Control Arm Bushing Kit.

Features

  • Locking washer: The teeth on the lock washer keep the bolt from turning once it is tightened.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Camber adjustment: Designed to optimize camber alignment and offset the effect of body roll and tire roll in corners.
  • Install guide: Whiteline packs an install guide with it.
  • Hardware: The matching nuts are included.
Specifications
Part Number KCA412
Part Name Camber Bolt
Vehicle 1990-1994 Suzuki Swift GS, GT
Chassis Code EA/SA
Adjustable Yes
Bolt Thread Diameter 12 mm
Color Gray
Installation Difficulty Difficult
Installation Time (hrs) 1
Kit Contents 2 Bolts
Nut Included Yes
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds +/- 0.75 Degree Camber

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1990SuzukiSwiftFWDAdds +/- 0.75 Degree Camber
1991SuzukiSwiftFWDAdds +/- 0.75 Degree Camber
1992SuzukiSwiftFWDAdds +/- 0.75 Degree Camber
1993SuzukiSwiftFWDAdds +/- 0.75 Degree Camber
1994SuzukiSwiftFWDAdds +/- 0.75 Degree Camber
