Product Details

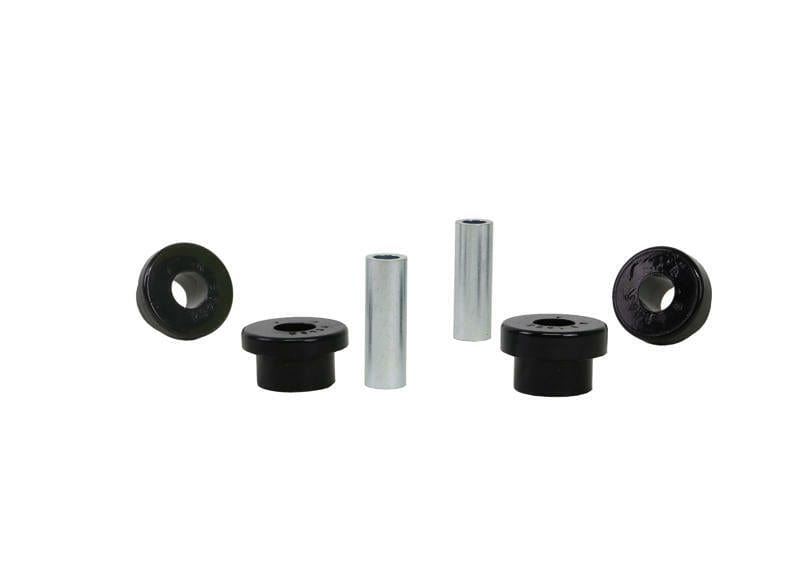

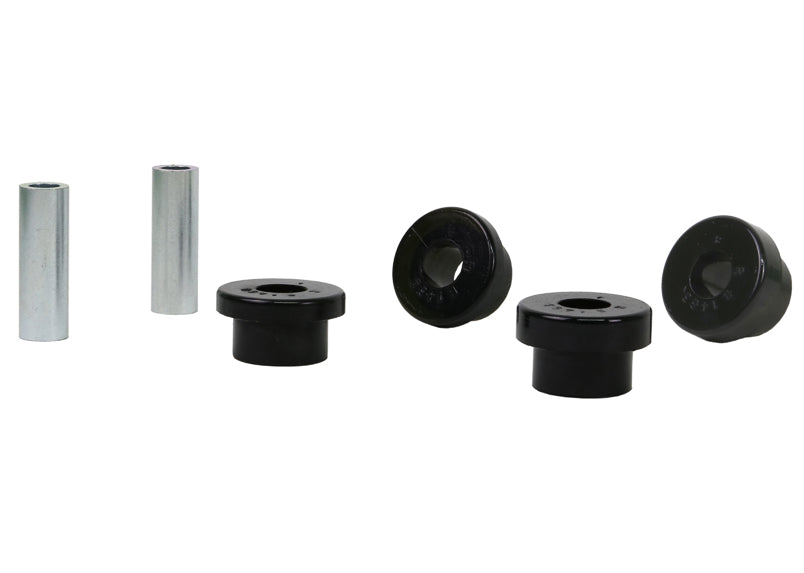

This Whiteline Rear Control Arm Lower Outer Bushing fits the 1989-1990 Suzuki Swift GLX (SA). The part number is W61463. This part is for the rear of the vehicle. The kit contains 4 bushings and 2 tubes.
Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.
Installation is rated moderate, with about 3 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the Swift, see 12mm Adjustable Front Camber Bolts, Front Lower Inner Front Control Arm Bushing Kit, and Front Sway Bar Link Lower Bushing.
Features
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Corrosion protection: The hardware is plated to stand up to road conditions.
- Material: Made from polyurethane.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
Specifications
| Part Number | W61463 |
| Part Name | Control Arm Bushing |
| Vehicle | 1989-1990 Suzuki Swift GLX |
| Chassis Code | SA |
| Bushing 1 Inner Diameter | 10.2 mm |
| Bushing 1 Outer Diameter | 30.5 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
