Product Details

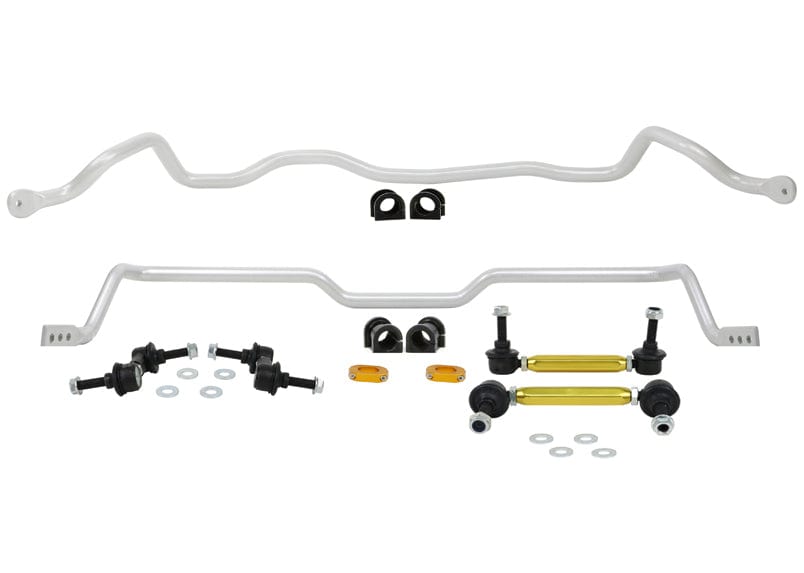

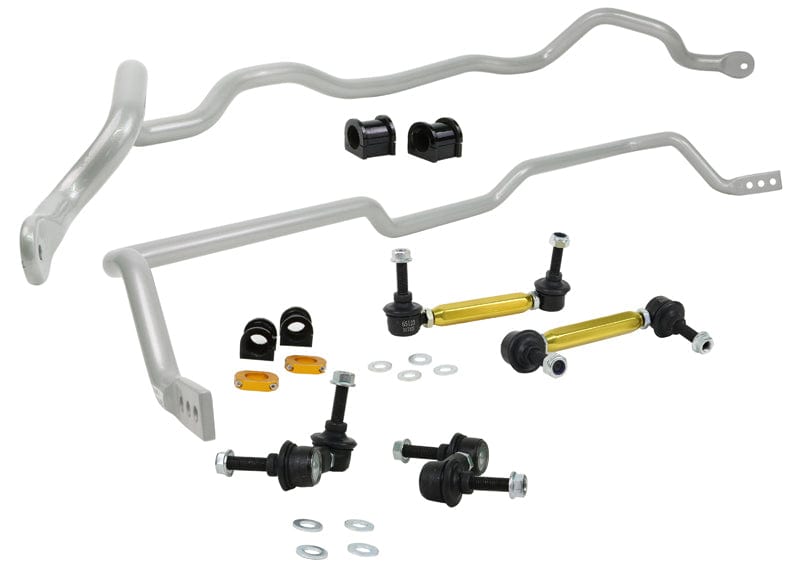

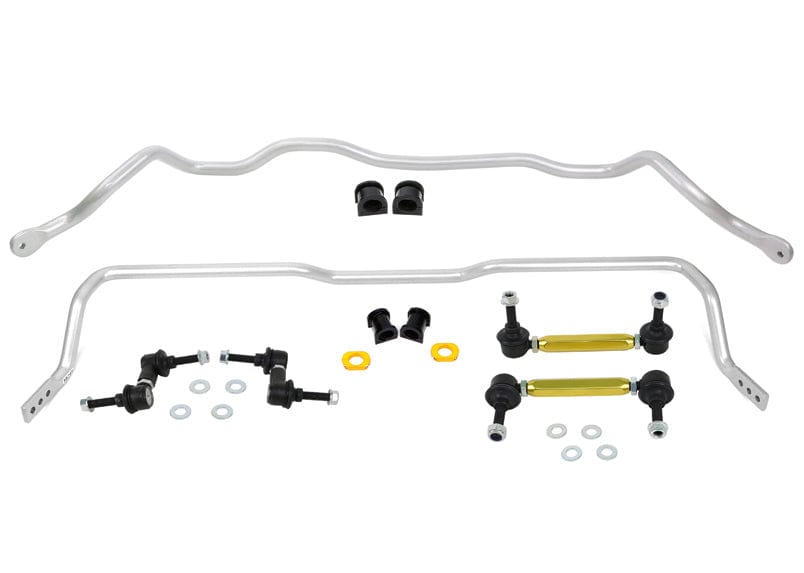

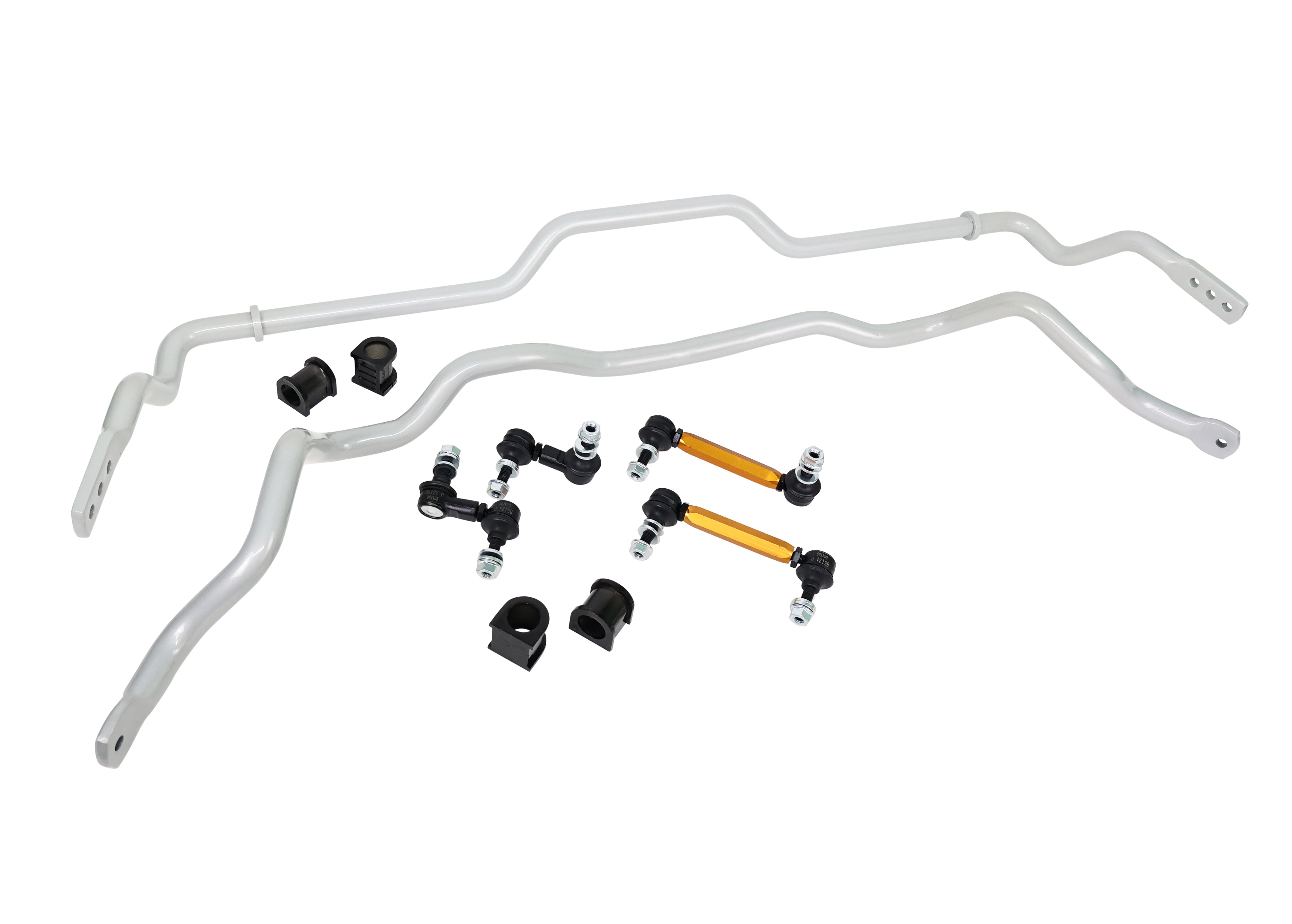

Engineered to 'Activate More Grip', BMK009 is a packaged solution to your 2006 Mitsubishi Lancer Evolution SE (CS) designed to improve performance and enhance the driving experience of your vehicle. Boasting a 26mm front sway bar and 24mm 3 point adjustable rear sway bar, the kit is completed with high quality Sway Bar Links and mounting accessories that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this Whiteline Sway Bar Kit.
Standard Features
- DIY Lateral locks prevent shifting or sideways movement of the sway bar under lateral (cornering) loads.
- Install guide included providing detailed instructions on how to install your new Whiteline purchase.
- Manufactured from high quality alloy and include heavy duty steel ball joint ends ensuring maximum strength and durability.
- Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
- Whiteline Sway Bar Mounts utilize the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication & performance.
- Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
- Whiteline Sway Bars are principally designed to reduce body roll or sway while cornering.
- By eliminating flex associated with original equipment, these high strength links are engineered to improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
- Protective E-Coat coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
- Eliminate sway bar preload during installation and allow for on-car length adjustment of up to 25mm center to center.
- Take control with multi-point adjustment that allow the driver to fine tune vehicle characteristics to suit their driving preference or conditions.
- Forged ends ensure maximum strength and performance of the sway bar at the sway bar link mounting point.
- Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
- PTFE lining provides an extraordinary low coefficient of friction eliminating the need to lubricate the bushing.
- Featuring premium anodized alloy materials, Whiteline alloy products are anodized providing a long-lasting protective barrier to corrosion and wear but they look great too.
- Heavy duty ball joints adjust and rotate to any angular combination for ease of fitment and optimum performance.
Specifications
| Part Number | BMK009 |
| Part Name | Sway Bars |
| Vehicle | 2006 Mitsubishi Lancer Evolution SE |
| Chassis Code | CS |
| Bushing Material | Polyurethane |
| Sway Bar Adjustable - Front | No |
| Sway Bar Diameter - Front | 26 mm |
| Sway Bar Included - Front | Yes |
| Sway Bar Links Included - Front | Yes |
| Grade Type | Performance |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 4 |
| Kit Contents | 2 Sway Bars, 4 Links, 4 Bushings, 2 Lateral Locks, 8 Washers |
| Sway Bar Adjustable - Rear | Yes |
| Sway Bar Diameter - Rear | 24 mm |
| Sway Bar Included - Rear | Yes |
| Sway Bar Links Included - Rear | Yes |
| Wheel Alignment Required | No |
| Notes | Sway bar Front 26mm (Non Adjustable) and Rear 24mm (3 point adjustable). Contains BMF48, BMR65XZ, KLC139 and KLC102 - essential to Activate more grip |
Vehicle Fitment
- 2006 Mitsubishi Lancer Evolution SE (CS)
