Product Details

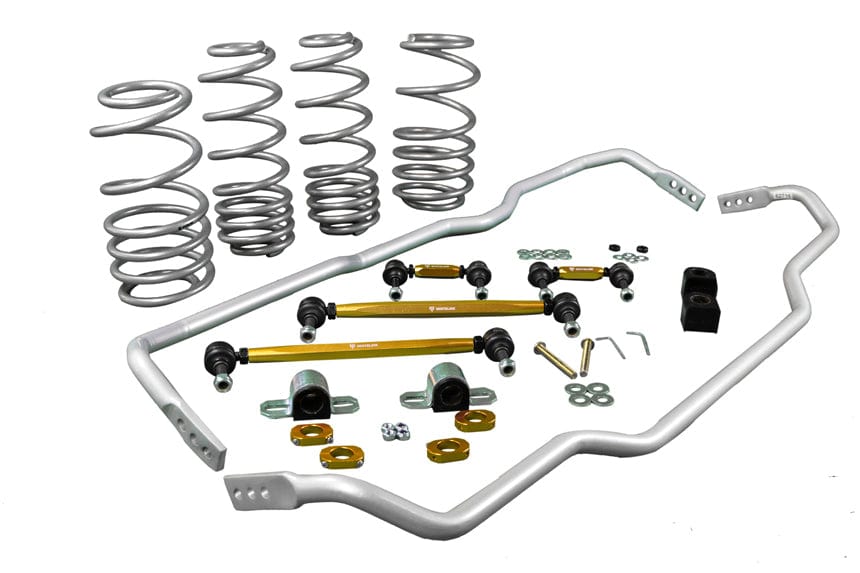

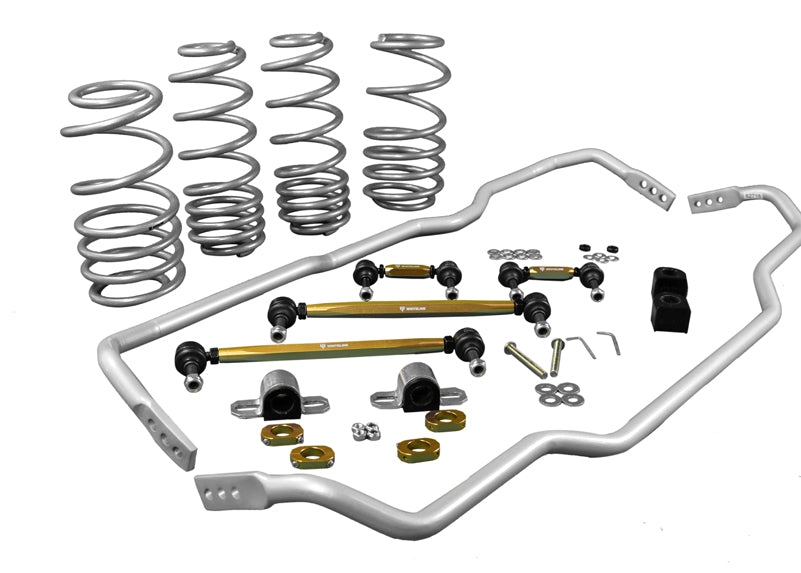

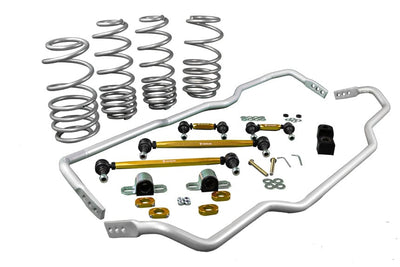

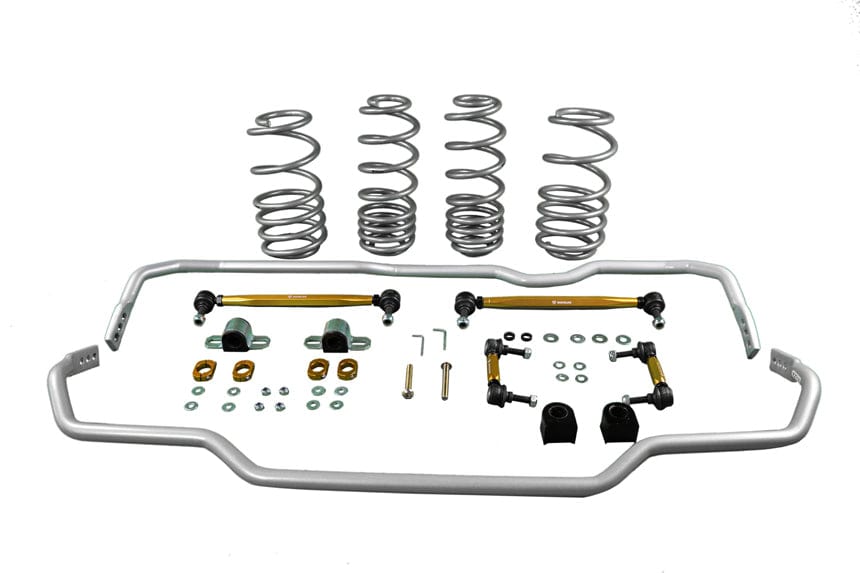

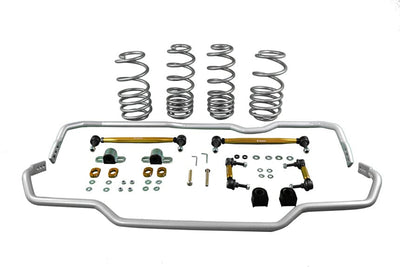

This Whiteline Grip Series Front and Rear Performance Suspension Kit fits the 2010-2013 Volkswagen Golf/GTI (5K). You receive 4 springs, 2 sway bars, 4 links, 4 bushings, 2 saddles, 4 lateral locks, 2 bolts, 18 washers, and 4 nuts. The part number is GS1-VWN003. It goes on the front and rear of the vehicle. Application note: Vehicle sway bar and lowered spring kit: contains WSK-VWN003 and BWK002.

A matched set of springs, bars, links, and hardware takes the guesswork out of changing how a car handles. Because the parts are chosen to work together, ride height and roll control come out balanced from front to rear.

Installation is rated difficult, with about 8 hours of work listed. Plan on a wheel alignment afterward. We also list Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front Steering Rack And Pinion Mount Bushing for the Golf/GTI.

Features

  • Spring steel: European made, cold rolled spring steel.
  • Construction: The body is made from high-grade alloy for strength without added weight.
  • Lateral locks: Lateral locks keep the bar centered under cornering load.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
  • Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
Specifications
Part Number GS1-VWN003
Part Name Suspension Kit
Vehicle 2010-2013 Volkswagen Golf/GTI
Drivetrain FWD
Chassis Code 5K
Spring Rate - Front 234 PPI
Sway Bar Adjustable - Front Yes
Sway Bar Diameter - Front 24 mm
Sway Bar Included - Front Yes
Sway Bar Links Included - Front Yes
Installation Difficulty Difficult
Installation Time (hrs) 8
Kit Contents 4 Springs, 2 Sway Bars, 4 Links, 4 Bushings, 2 Saddles, 4 Lateral Locks, 2 Bolts, 18 Washers, 4 Nuts
Spring Rate - Rear 200 PPI
Sway Bar Adjustable - Rear Yes
Sway Bar Diameter - Rear 24 mm
Sway Bar Links Included - Rear Yes
Wheel Alignment Required Yes
Notes Vehicle sway bar and lowered spring kit - contains WSK-VWN003 and BWK002 - essential to Activate more grip

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2010VolkswagenGolfFWDVehicle sway bar and lowered spring kit - contains WSK-VWN003 and BWK002 - essential to Activate more grip
2010VolkswagenGTIFWDVehicle sway bar and lowered spring kit - contains WSK-VWN003 and BWK002 - essential to Activate more grip
2011VolkswagenGolfFWDVehicle sway bar and lowered spring kit - contains WSK-VWN003 and BWK002 - essential to Activate more grip
2011VolkswagenGTIFWDVehicle sway bar and lowered spring kit - contains WSK-VWN003 and BWK002 - essential to Activate more grip
2012VolkswagenGolfFWDVehicle sway bar and lowered spring kit - contains WSK-VWN003 and BWK002 - essential to Activate more grip
2012VolkswagenGTIFWDVehicle sway bar and lowered spring kit - contains WSK-VWN003 and BWK002 - essential to Activate more grip
2013VolkswagenGolfFWDVehicle sway bar and lowered spring kit - contains WSK-VWN003 and BWK002 - essential to Activate more grip
2013VolkswagenGTIFWDVehicle sway bar and lowered spring kit - contains WSK-VWN003 and BWK002 - essential to Activate more grip
