Product Details

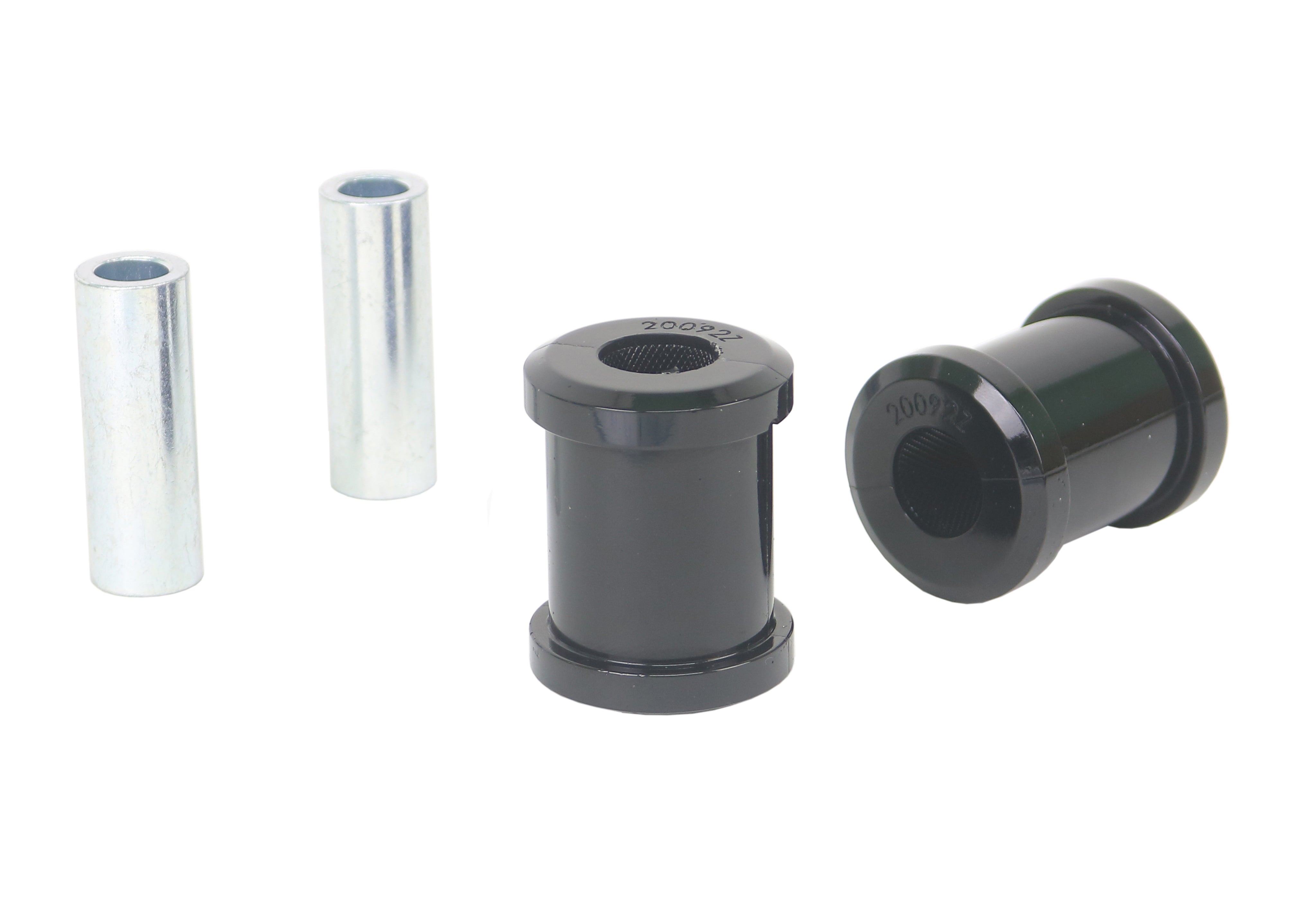

This Whiteline Rear Upper Rearward Control Arm Bushing Kit fits the 2017-2020 Fiat 124 Spider. Placement: rear. The kit contains 2 bushings and 2 tubes. Part number W63619.
Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.
Installation is rated moderate, with about 2 hours of work listed. An alignment is required after installation. Working on the same car? We also list Front Upper Control Arm Bushing Kit, 26mm Sway Bar Mount Bushing Kit, and Front Essential Vehicle Bushing Kit for the 124 Spider.
Features
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Install guide: An install guide comes in the box.
- Material: The part is made of polyurethane.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
| Part Number | W63619 |
| Part Name | Control Arm Bushings |
| Vehicle | 2017-2020 Fiat 124 Spider |
| Chassis Code | Type 348 |
| Bushing 1 Inner Diameter | 12.3 mm |
| Bushing 1 Length | 55 mm |
| Bushing 1 Outer Diameter | 35.9 mm |
| Bushing 2 Inner Diameter | 12.3 mm |
| Bushing 2 Length | 55 mm |
| Bushing 2 Outer Diameter | 35.9 mm |
| Bushing Quantity | 2 |
| Grade Type | Performance |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 2 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Outside Diameter | 35.9 mm |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
