Product Details

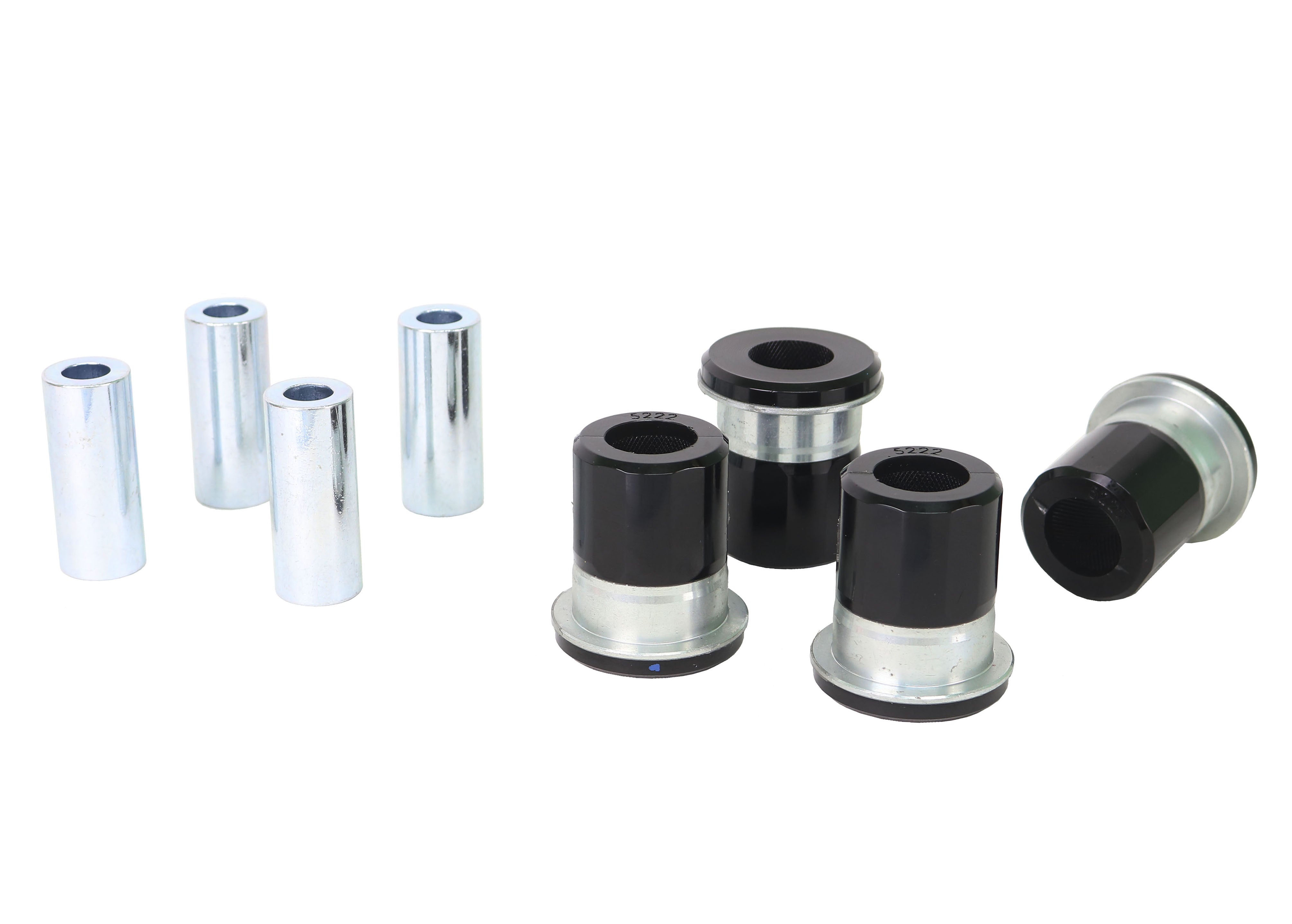

This Whiteline Front Upper Control Arm Bushing Kit fits the 2017-2020 Fiat 124 Spider. Part number W56412. Position: front. It is listed for the Type 348 chassis. Included: 4 shell bushings and 4 tubes.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Whiteline rates the install as difficult and lists about 2 hours. An alignment is required after installation. To go with it on the 124 Spider, see 26mm Sway Bar Mount Bushing Kit, Rear Outer Trailing Arm Bushing Kit, and Front Shock Absorber to Control Arm Bushing Kit.
Features
- Grease: Molybdenum disulfide grease is included to help the parts last.
- Easy to fit: Designed for an easy install with ordinary shop equipment.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
- Material: Polyurethane construction.
- Install guide: Step-by-step installation instructions come with it.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
Specifications
| Part Number | W56412 |
| Part Name | Control Arm Bushings |
| Vehicle | 2017-2020 Fiat 124 Spider |
| Chassis Code | Type 348 |
| Bushing 1 Inner Diameter | 12.3 mm |
| Bushing 1 Outer Diameter | 45.3 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Inside Diameter | 14.3 mm |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2 |
| Kit Contents | 4 Shell Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Outside Diameter | 45.3 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
