Product Details

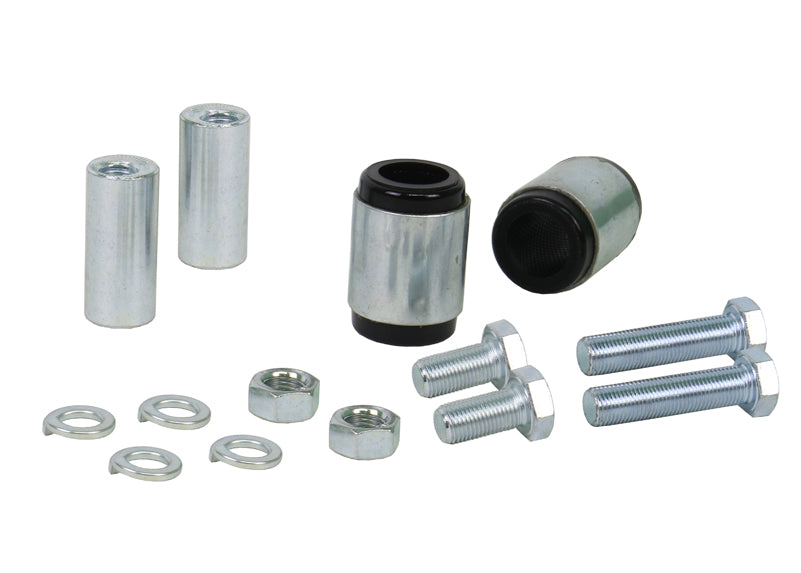

Made to fit the 2011-2017 Chrysler 200, the Rear Upper Inner Bushing Offset Camber Kit from Whiteline. The kit contains 2 shell bushings and 2 tubes. It goes on the rear of the vehicle. It is listed for the JS/CUSW chassis. Part number KCA329. Whiteline's note for this fit: Adds +/- 0.5 degrees Camber.
Most factory control arm bushings are centered and fixed. An offset one is built so the arm sits at a slightly different angle, which changes camber, and the firmer material stops that setting drifting under load.
Expect a moderate job of about 3 hours. An alignment is required after installation. To go with it on the Chrysler 200, see Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Rear Bushing, and Adjustable Front Sway Bar Link.
Features
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Bonded design: The bushing is bonded for extra strength under heavy loads.
- Material: Made from polyurethane.
- Corrosion protection: Plated finish keeps rust off the hardware.
- Finish: Powder coat finish guards the metal against chips and corrosion.
- Install guide: Whiteline packs an install guide with it.
Specifications
| Part Number | KCA329 |
| Part Name | Bushing Camber Kit |
| Vehicle | 2011-2017 Chrysler 200 |
| Chassis Code | JS/CUSW |
| Drivetrain | AWD/FWD |
| Bushing 1 Inner Diameter | 12 mm |
| Bushing 1 Outer Diameter | 36.5 mm |
| Bushing 2 Outer Diameter | 36 mm |
| Bushing Quantity | 2 Shell Bushings |
| Grade Type | Performance |
| Inside Diameter | 12 mm |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Shell Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Outside Diameter | 36.5 mm |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Adds +/- 0.5Degree Camber |
