Product Details

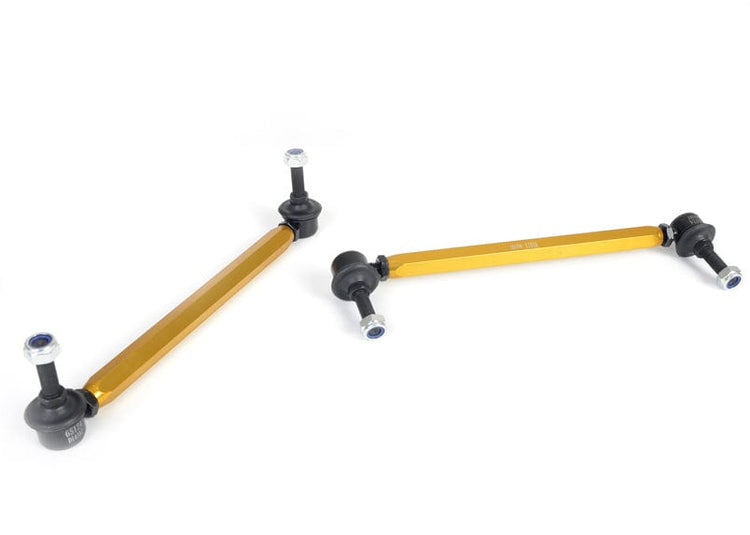

This Whiteline Adjustable Front Sway Bar Link fits the 2011-2014 Chrysler 200 Touring (JS). It goes on the front of the vehicle. Whiteline part number: KLC163. The kit contains 2 links.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Whiteline rates the install as moderate and lists about 1 hour. It does not require a wheel alignment. To go with it on the Chrysler 200, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front Control Arm Lower Inner Rear Bushing.

Features

  • Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
  • Ball joints: Steel ball joint ends are built for heavy loads and free movement.
  • Install guide: Written install instructions are included with the part.
  • Construction: The body is made from high-grade alloy for strength without added weight.
  • Pre-greased: Joints arrive pre-greased and ready to install.
  • Preload-free setup: The length can be set on the car to remove preload from the sway bar.
Specifications
Part Number KLC163
Part Name Sway Bar Link
Vehicle 2011-2014 Chrysler 200 Touring
Chassis Code JS
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 270-295 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Length 270-295mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2011Chrysler200FWDLength 270-295mm. Bolt Diameter 10mm.
2012Chrysler200FWDLength 270-295mm. Bolt Diameter 10mm.
2013Chrysler200FWDLength 270-295mm. Bolt Diameter 10mm.
2014Chrysler200FWDLength 270-295mm. Bolt Diameter 10mm.
