Product Details

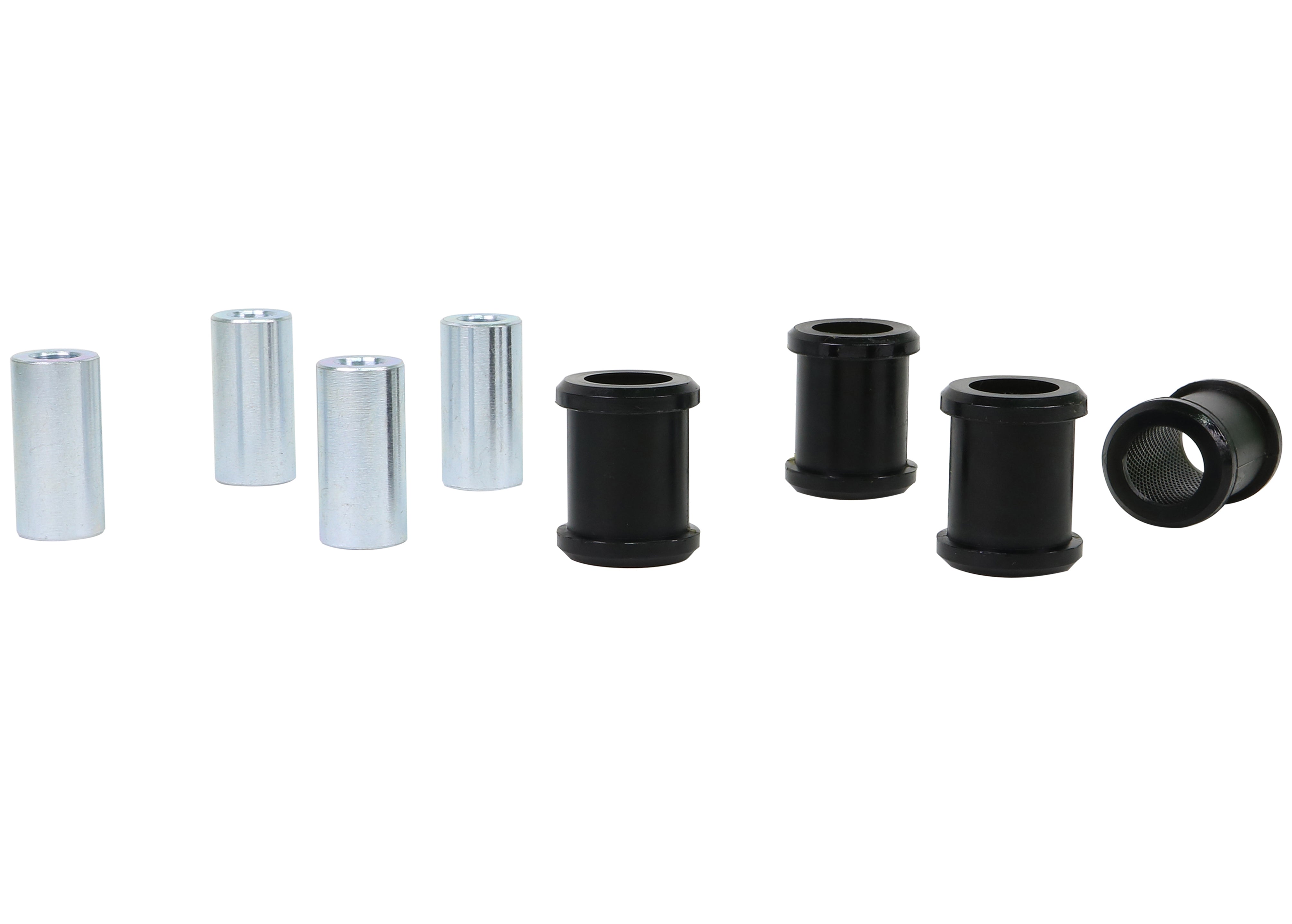

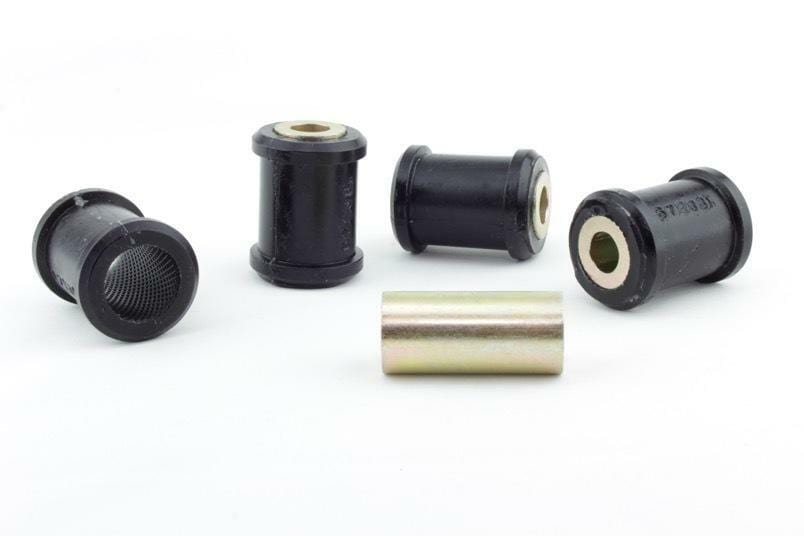

This Whiteline Rear Lower Trailing Arm Bushing fits the 2006-2015 Mazda MX-5 Miata Grand Touring, Sport (NC). Order it as part number W63386. Application note: Rear bushing located in hub. It goes on the rear of the vehicle. In the box: 4 bushings, 4 tubes, and grease.

Every time the wheel moves, the trailing arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as moderate and lists about 3 hours. Plan on a wheel alignment afterward. We also list Adjustable Rear Sway Bar Link, Adjustable Sway Bar Vehicle Link Kit, and Adjustable Front Sway Bar Link for the MX-5 Miata.

Features

  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Finish: The metal parts are powder coated for durability.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Material: Polyurethane construction.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
Specifications
Part Number W63386
Part Name Trailing Arm Bushing
Vehicle 2006-2015 Mazda MX-5 Miata Grand Touring, Sport
Drivetrain RWD
Chassis Code NC
Bushing Color Black
Bushing Material Polyurethane
Color Black
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 4 Tubes, Grease
Material Polyurethane
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Rear bushing located in hub

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2006MazdaMX-5 MiataRWDRear bushing located in hub
2007MazdaMX-5 MiataRWDRear bushing located in hub
2008MazdaMX-5 MiataRWDRear bushing located in hub
2009MazdaMX-5 MiataRWDRear bushing located in hub
2010MazdaMX-5 MiataRWDRear bushing located in hub
2011MazdaMX-5 MiataRWDRear bushing located in hub
2012MazdaMX-5 MiataRWDRear bushing located in hub
2013MazdaMX-5 MiataRWDRear bushing located in hub
2014MazdaMX-5 MiataRWDRear bushing located in hub
2015MazdaMX-5 MiataRWDRear bushing located in hub
