Product Details

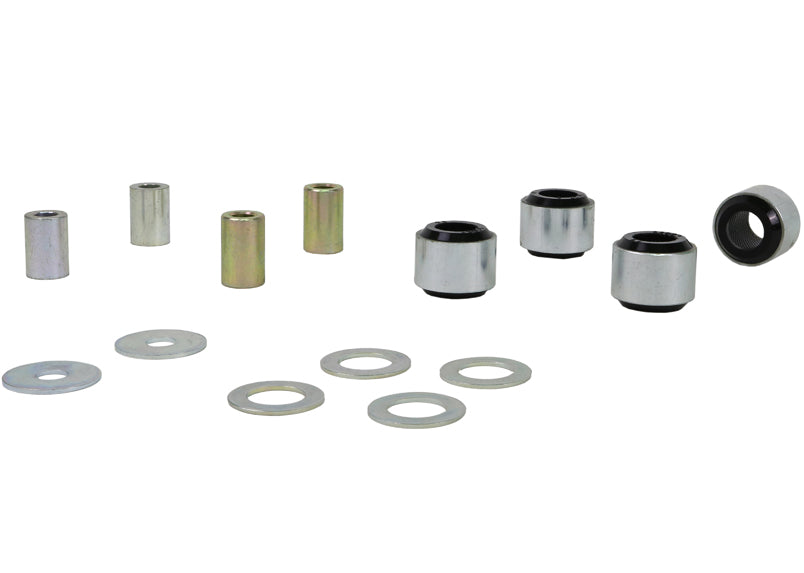

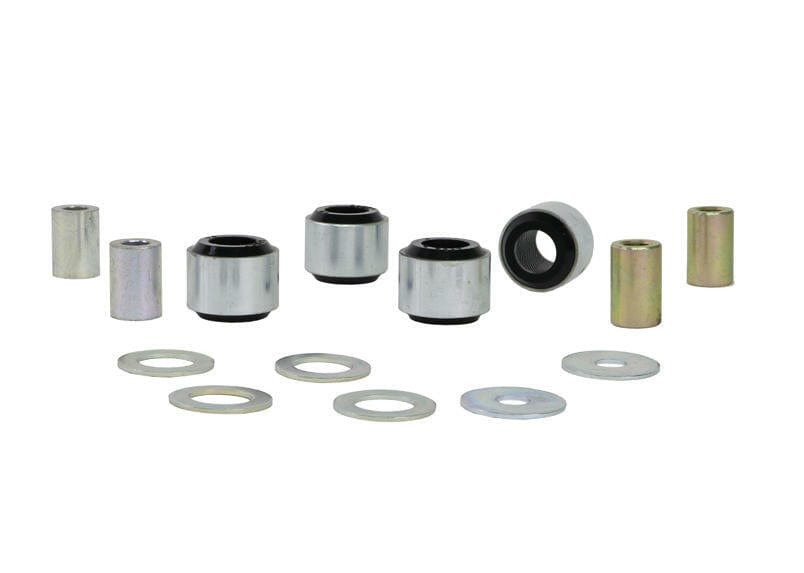

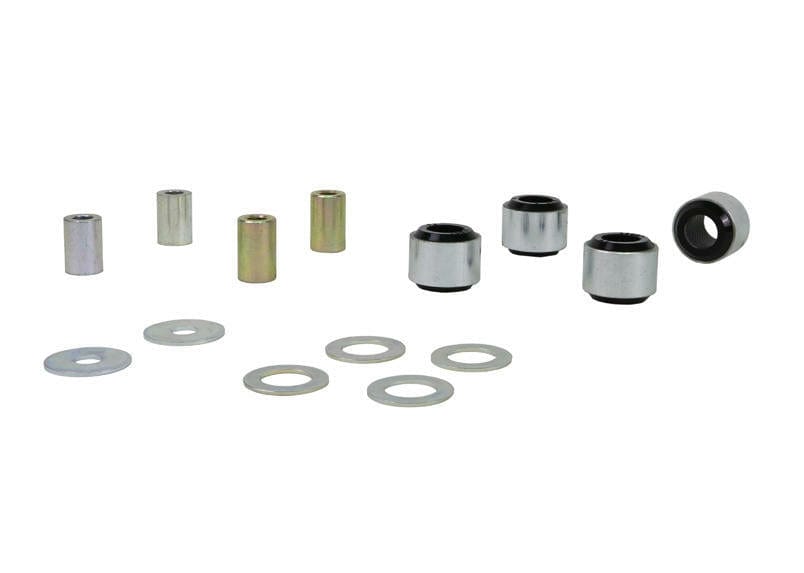

This Whiteline Rear Toe Link Bushing fits the 2006-2008 Dodge Magnum SRT8 (LX). Chassis code: LX. Order it as part number W63345. Placement: rear. In the box: 4 shell bushings, 4 tubes, and 6 washers.

Link bushings are small, but they hold a rear wheel or axle in position. Replacing worn ones removes play, which brings back the intended alignment and calms the rear end. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated moderate, with about 4 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the Magnum, see Front and Rear Sway Bar Kit, Rear Trailing Arm Lower Front Bushing, and Rear Subframe Mount Bushing.

Features

  • Bonded design: The bushing is bonded for strength where loads are highest.
  • Install guide: Instructions for fitting are packed in the box.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Finish: The metal is powder coated, which resists corrosion and wear.
Specifications
Part Number W63345
Part Name Toe Link Bushing
Vehicle 2006-2008 Dodge Magnum SRT8
Drivetrain RWD/AWD
Chassis Code LX
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 40.3 mm
Bushing 2 Inner Diameter 12.2 mm
Bushing Quantity 4 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 4
Kit Contents 4 Shell Bushings, 4 Tubes, 6 Washers
Material Polyurethane
Mounting Hardware Included No
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2006DodgeMagnumRWD
2006DodgeMagnumAWD
2007DodgeMagnumRWD
2007DodgeMagnumAWD
2008DodgeMagnumRWD
2008DodgeMagnumAWD
