Product Details

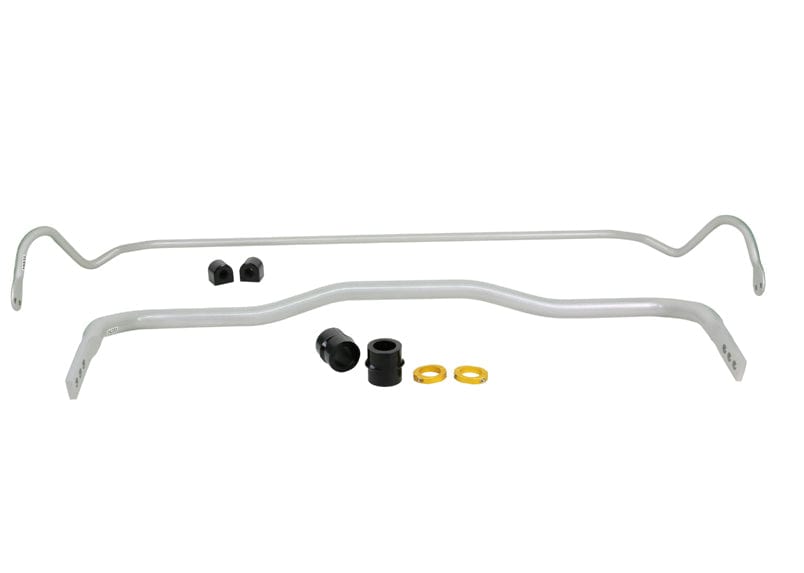

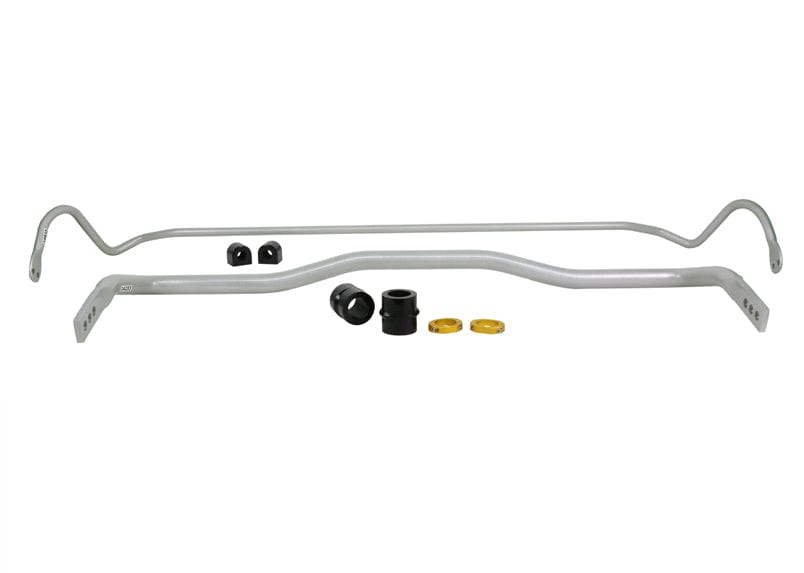

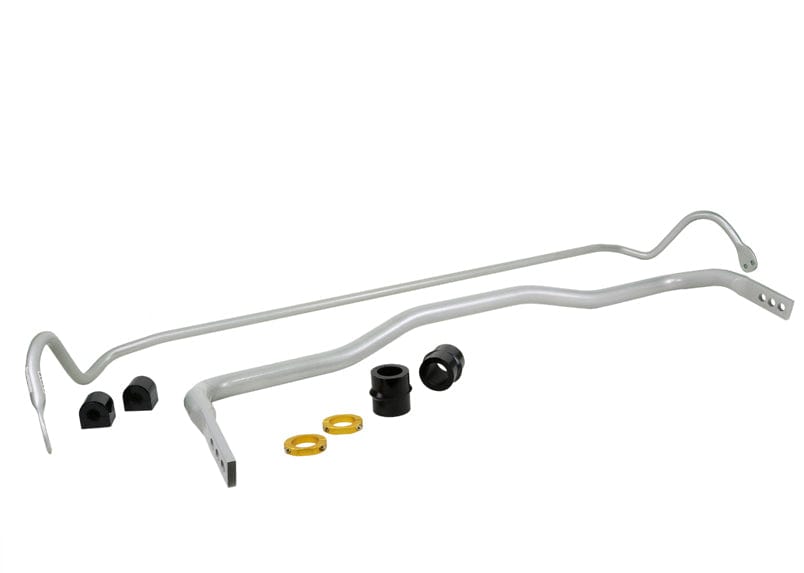

This Whiteline Front and Rear Sway Bar Kit fits the 2005-2008 Dodge Magnum R/T, SE, SXT (LX). Included: 2 sway bars, 4 bushings, and 2 lateral locks. Placement: front and rear. Application note: Contains BCF12Z and BCR15Z. Whiteline part number: BCK003.

Body roll shifts load onto the outside tires, and a sway bar is the most direct way to limit it. Fitting stiffer bars at both ends keeps the platform flatter through a corner and lets the car turn in with less lean, and having a front and rear pair designed to work together keeps the balance predictable. The bar is adjustable, so the stiffness can be changed to suit the car and the road.

Expect a moderate job of about 3 hours. It does not require a wheel alignment. Other Whiteline parts we list for the Magnum: Rear Subframe Mount Bushing, Rear Trailing Arm Lower Front Bushing, and Front Lower Radius Arm Bushing.

Features

  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • PTFE lined: A PTFE lining lowers friction so the bushing needs no lubrication.
  • Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
  • Bar mounts: The mount bushings have a knurled bore and grease-holding lips.
  • Rigid design: A stiffer design than the factory part gives a more immediate response.
Specifications
Part Number BCK003
Part Name Sway Bars
Vehicle 2005-2008 Dodge Magnum R/T, SE, SXT
Drivetrain RWD/AWD
Chassis Code LX
Bushing Material Polyurethane
Sway Bar Adjustable - Front Yes
Sway Bar Diameter - Front 33 mm
Sway Bar Included - Front Yes
Sway Bar Links Included - Front No
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Sway Bars, 4 Bushings, 2 Lateral Locks
Sway Bar Adjustable - Rear Yes
Sway Bar Diameter - Rear 18 mm
Sway Bar Included - Rear Yes
Sway Bar Links Included - Rear No
Wheel Alignment Required No
Notes Contains BCF12Z and BCR15Z

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005DodgeMagnumRWDContains BCF12Z and BCR15Z
2005DodgeMagnumAWDContains BCF12Z and BCR15Z
2006DodgeMagnumRWDContains BCF12Z and BCR15Z
2006DodgeMagnumAWDContains BCF12Z and BCR15Z
2007DodgeMagnumRWDContains BCF12Z and BCR15Z
2007DodgeMagnumAWDContains BCF12Z and BCR15Z
2008DodgeMagnumRWDContains BCF12Z and BCR15Z
2008DodgeMagnumAWDContains BCF12Z and BCR15Z
