Product Details

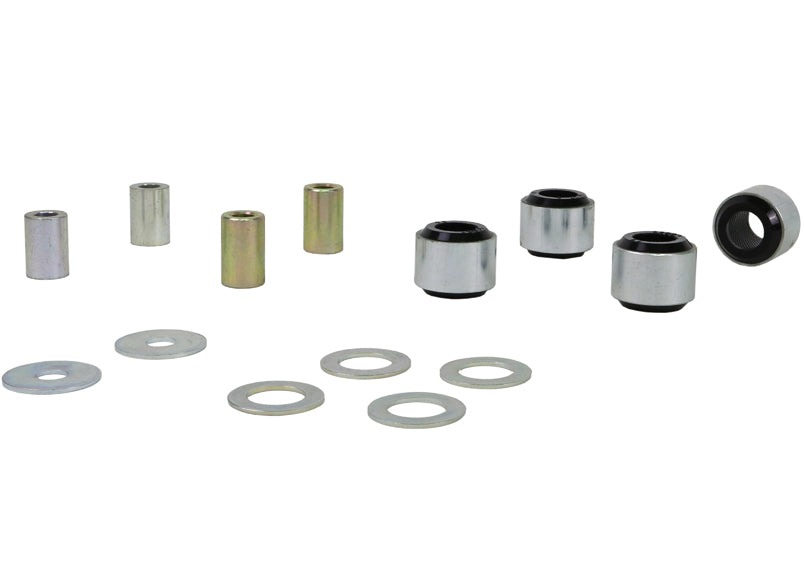

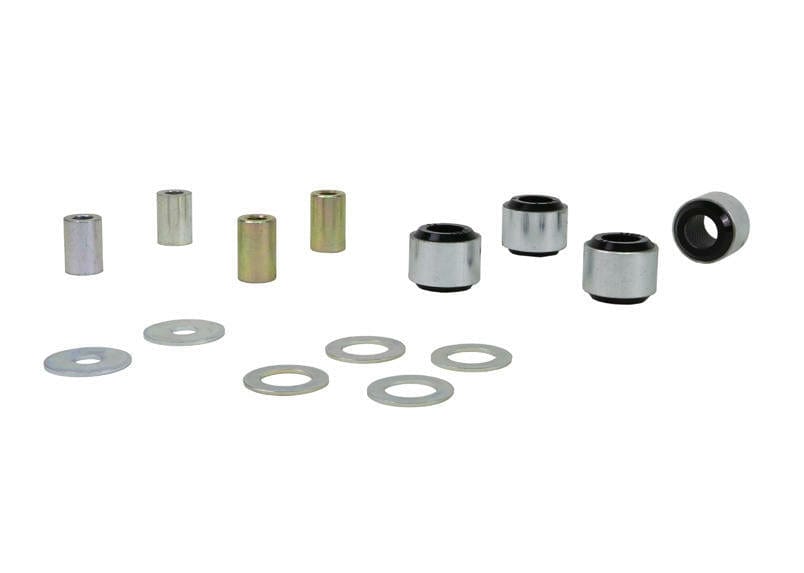

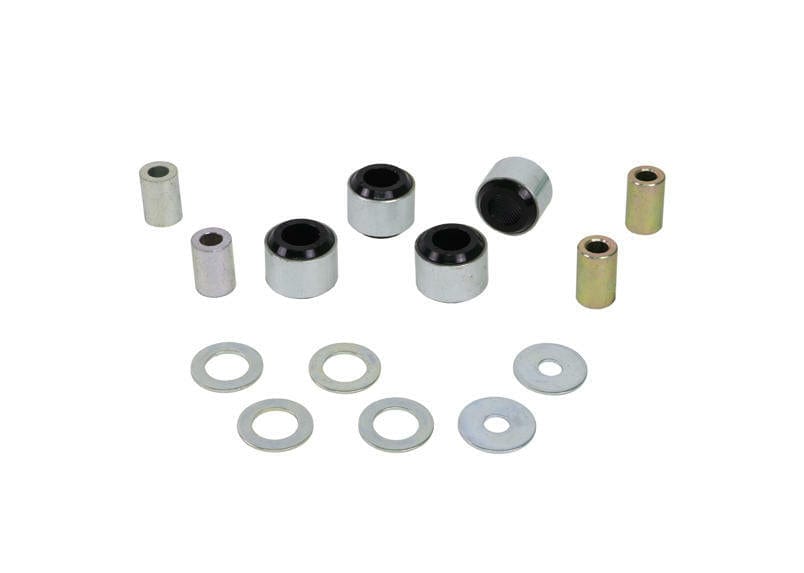

This Whiteline Rear Toe Link Bushing fits the 2005 Chrysler 300C Base, Limited, Touring (LX). This part is for the rear of the vehicle. Whiteline part number: W63345. In the box: 4 shell bushings, 4 tubes, and 6 washers.

Links in the rear suspension locate the wheel or axle, and each one pivots on a bushing. When the bushing is worn, the link moves more than it should, and alignment and stability change under load. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated moderate, with about 4 hours of work listed. Plan on a wheel alignment afterward. To go with it on the 300C, see Front and Rear Sway Bar Kit, Rear Trailing Arm Lower Front Bushing, and Rear Subframe Mount Bushing.

Features

  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Install guide: Instructions for fitting are packed in the box.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Bonded design: Bonding adds durability in high-load use.
Specifications
Part Number W63345
Part Name Toe Link Bushing
Vehicle 2005 Chrysler 300C Base, Limited, Touring
Drivetrain RWD/AWD
Chassis Code LX
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 40.3 mm
Bushing 2 Inner Diameter 12.2 mm
Bushing Quantity 4 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 4
Kit Contents 4 Shell Bushings, 4 Tubes, 6 Washers
Material Polyurethane
Mounting Hardware Included No
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005Chrysler300CRWD
2005Chrysler300CAWD
