Product Details

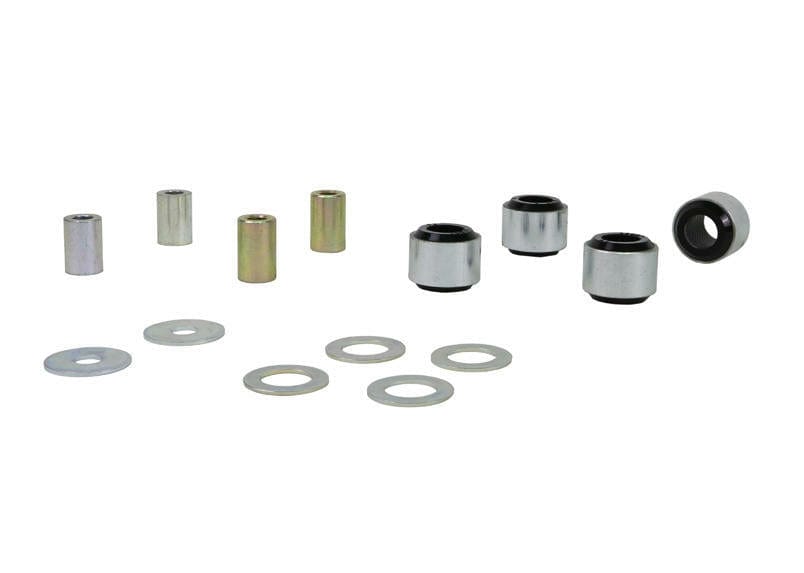

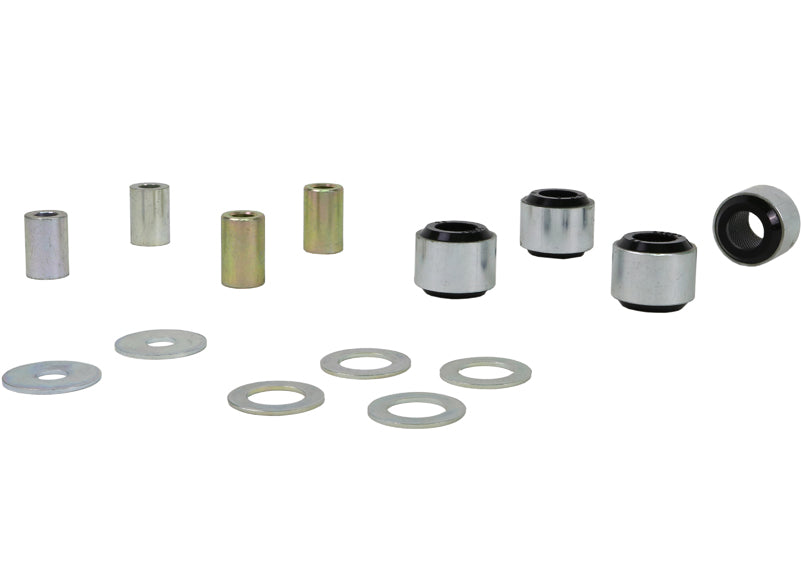

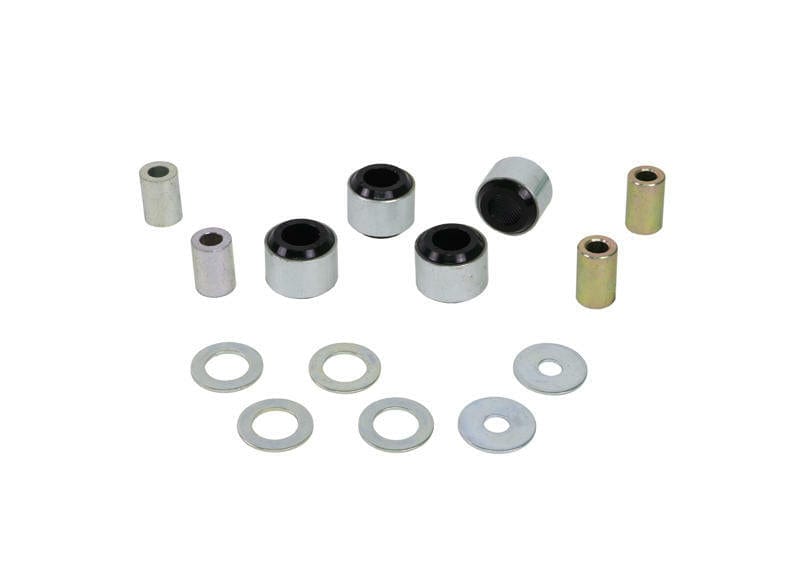

This Whiteline Rear Toe Link Bushing fits the 2005-2010 Chrysler 300 SRT8 C (LX). The kit contains 4 shell bushings, 4 tubes, and 6 washers. Position: rear. Part number W63345.

Links in the rear suspension locate the wheel or axle, and each one pivots on a bushing. When the bushing is worn, the link moves more than it should, and alignment and stability change under load. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a moderate job of about 4 hours. Get the car aligned once it is back on the ground. To go with it on the 300 SRT8, see Front and Rear Sway Bar Kit, Rear Trailing Arm Lower Front Bushing, and Rear Subframe Mount Bushing.

Features

  • Install guide: Written install instructions are included with the part.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Bonded design: The bushing is bonded for strength where loads are highest.
Specifications
Part Number W63345
Part Name Toe Link Bushing
Vehicle 2005-2010 Chrysler 300 SRT8 C
Drivetrain RWD
Chassis Code LX
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 40.3 mm
Bushing 2 Inner Diameter 12.2 mm
Bushing Quantity 4 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 4
Kit Contents 4 Shell Bushings, 4 Tubes, 6 Washers
Material Polyurethane
Mounting Hardware Included No
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005Chrysler300 SRT8RWD
2006Chrysler300 SRT8RWD
2007Chrysler300 SRT8RWD
2008Chrysler300 SRT8RWD
2009Chrysler300 SRT8RWD
2010Chrysler300 SRT8RWD
