Product Details

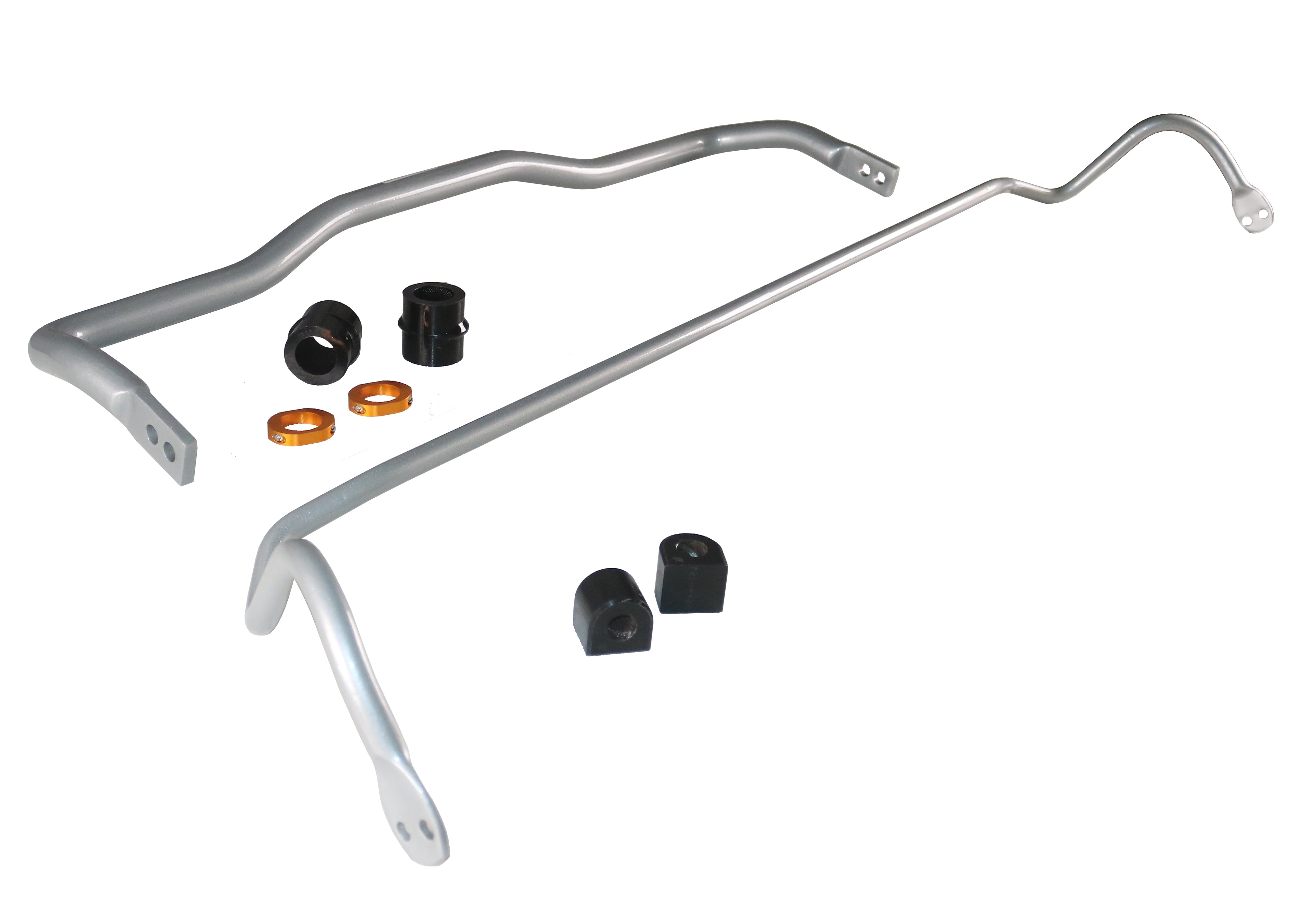

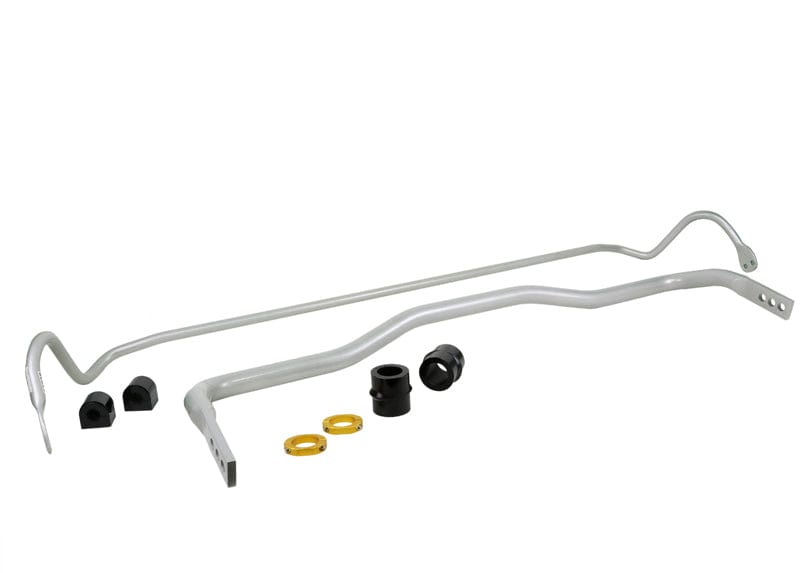

This Whiteline Front and Rear Sway Bar Kit fits the 2005-2010 Chrysler 300 SRT8 C (LX). This part is for the front and rear of the vehicle. Application note: Contains BCF12Z and BCR15Z. Whiteline part number: BCK003. Included: 2 sway bars, 4 bushings, and 2 lateral locks.

Front and rear sway bars work as a team. The bars resist roll by twisting, and their relative stiffness shapes whether the car feels planted or loose at the limit. This kit supplies both ends so the balance stays under control. Adjustable mounting points let you step the stiffness up or down without changing the bar.

Expect a moderate job of about 3 hours. No alignment is needed afterward. Other Whiteline parts we list for the 300 SRT8: Rear Subframe Mount Bushing, Rear Trailing Arm Lower Front Bushing, and Front Lower Radius Arm Bushing.

Features

  • Forged ends: Forged ends add strength at the point where the bar connects to the link.
  • Bar mounts: The mount bushings have a knurled bore and grease-holding lips.
  • PTFE lined: A PTFE lining lowers friction so the bushing needs no lubrication.
  • Install guide: Instructions for fitting are packed in the box.
  • Anodized alloy: Anodized alloy parts resist corrosion and wear and look good doing it.
  • Bushing compound: The synthetic elastomer used is low in compliance, so it flexes less.
Specifications
Part Number BCK003
Part Name Sway Bars
Vehicle 2005-2010 Chrysler 300 SRT8 C
Drivetrain RWD
Chassis Code LX
Bushing Material Polyurethane
Sway Bar Adjustable - Front Yes
Sway Bar Diameter - Front 33 mm
Sway Bar Included - Front Yes
Sway Bar Links Included - Front No
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Sway Bars, 4 Bushings, 2 Lateral Locks
Sway Bar Adjustable - Rear Yes
Sway Bar Diameter - Rear 18 mm
Sway Bar Included - Rear Yes
Sway Bar Links Included - Rear No
Wheel Alignment Required No
Notes Contains BCF12Z and BCR15Z

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005Chrysler300 SRT8RWDContains BCF12Z and BCR15Z
2006Chrysler300 SRT8RWDContains BCF12Z and BCR15Z
2007Chrysler300 SRT8RWDContains BCF12Z and BCR15Z
2008Chrysler300 SRT8RWDContains BCF12Z and BCR15Z
2009Chrysler300 SRT8RWDContains BCF12Z and BCR15Z
2010Chrysler300 SRT8RWDContains BCF12Z and BCR15Z
