Product Details

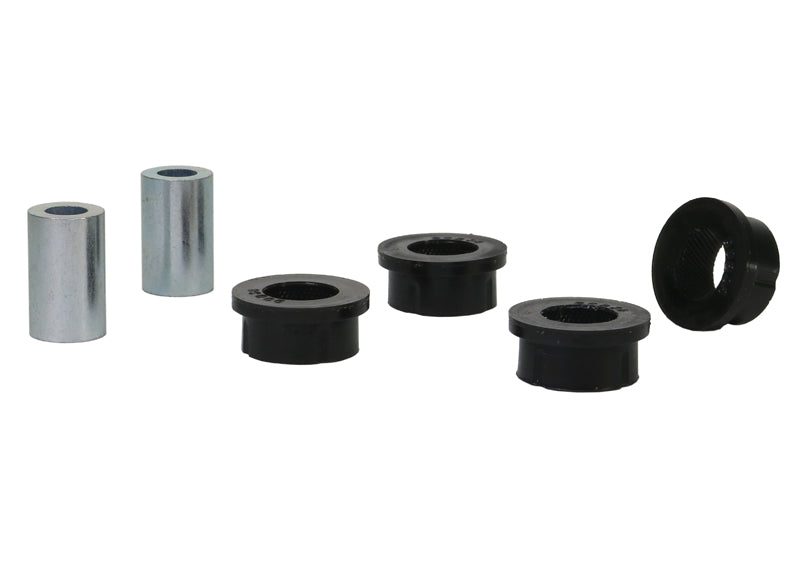

This Whiteline Rear Toe Arm Inner Bushing fits the 2016 Subaru WRX STI Series.HyperBlue (VA). It goes on the rear of the vehicle. Whiteline part number: W63583. Included: 4 bushings and 2 tubes.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired toe arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated moderate, with about 2 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the WRX STI, see 14mm Adjustable Front Camber Bolts, Adjustable Front Sway Bar Link, and Rear Subframe Mount Bushing.

Features

  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Easy to fit: Made with the installer in mind, so it goes in without special equipment.
  • Material: Built from polyurethane.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
Specifications
Part Number W63583
Part Name Toe Arm Bushing
Vehicle 2016 Subaru WRX STI Series.HyperBlue
Drivetrain AWD
Chassis Code VA
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 38 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2016SubaruWRX STIAWD
