Product Details

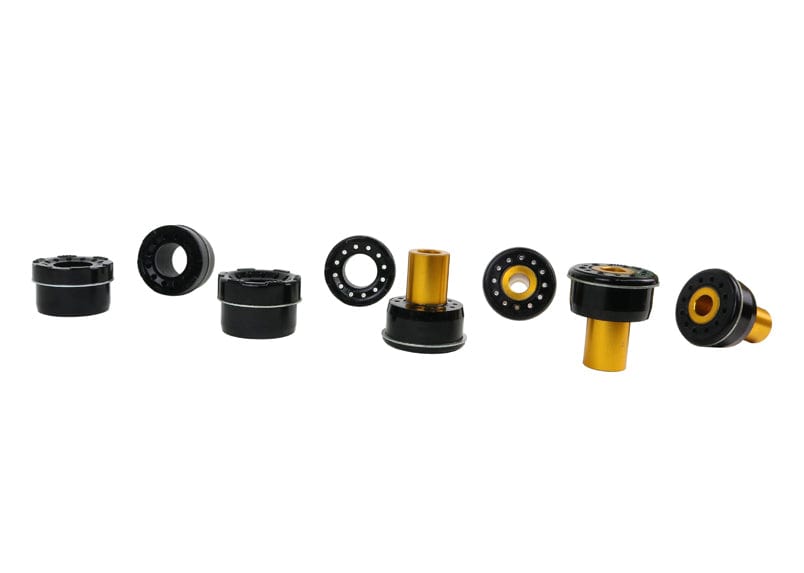

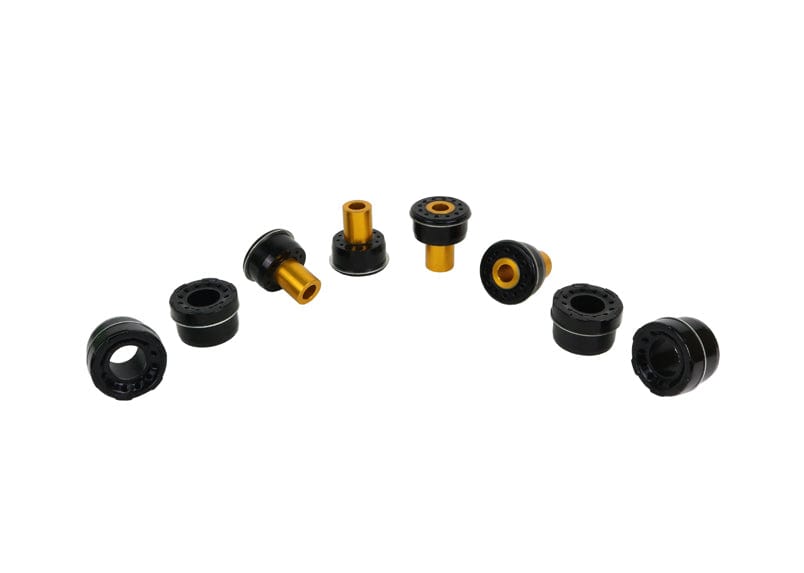

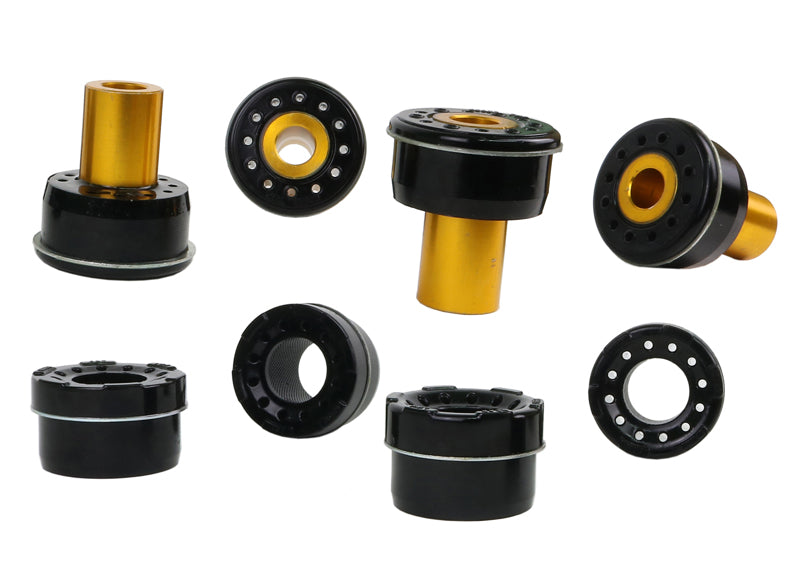

This Whiteline Rear Subframe Mount Bushing fits the 2015-2021 Subaru WRX STI Base, Limited (VA). In the box: 8 bushings and 4 tubes. Whiteline part number: KDT937. Application note: Positive traction kit: locks subframe to body. Chassis code: VA. Position: rear.

Factory subframe bushings are tuned for isolation, not precision, and under load they allow the rear crossmember to move relative to the body. These polyurethane bushings limit that movement, which gives a more consistent, predictable rear end when the car is pushed. It is built as a positive traction kit, which locks the subframe in place against the body.

Installation is rated moderate, with about 2 hours of work listed. Plan on a wheel alignment afterward. To go with it on the WRX STI, see 14mm Adjustable Front Camber Bolts, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Bushing material: Polyurethane bushings flex far less than rubber ones.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Serviceable: Includes a grease fitting for future maintenance.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Finish: A powder coated finish resists corrosion and wear.
Specifications
Part Number KDT937
Part Name Subframe Mount Bushing
Vehicle 2015-2021 Subaru WRX STI Base, Limited
Drivetrain AWD
Chassis Code VA
Bushing Color Black
Bushing Material Polyurethane
Grade Type Performance
Grease Fitting Included No
Greaseable Yes
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 8 Bushings, 4 Tubes
Mounting Brackets Included No
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Positive traction kit - locks subframe to body

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2015SubaruWRX STIAWDPositive traction kit - locks subframe to body
2016SubaruWRX STIAWDPositive traction kit - locks subframe to body
2017SubaruWRX STIAWDPositive traction kit - locks subframe to body
2018SubaruWRX STIAWDPositive traction kit - locks subframe to body
2019SubaruWRX STIAWDPositive traction kit - locks subframe to body
2020SubaruWRX STIAWDPositive traction kit - locks subframe to body
2021SubaruWRX STIAWDPositive traction kit - locks subframe to body
