Product Details

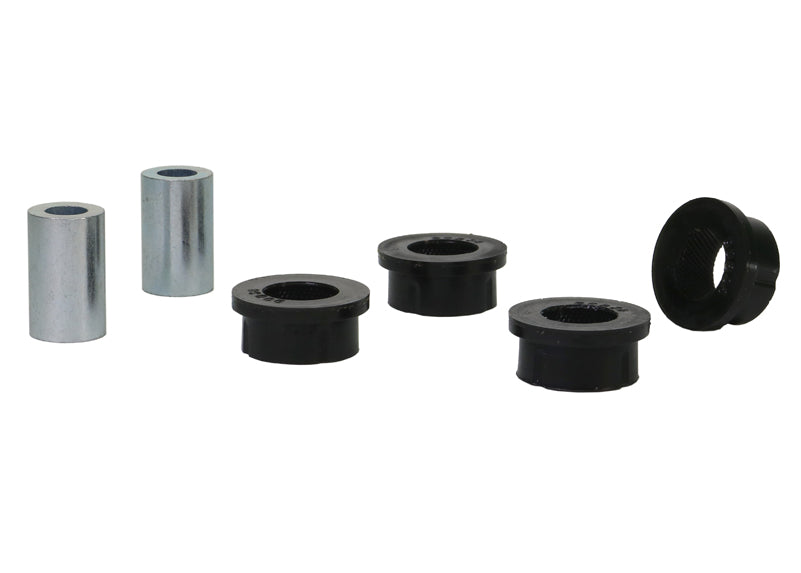

Looking for a rear toe arm bushing for your 2013-2016 Scion FR-S Base? The Whiteline Rear Toe Arm Inner Bushing is made for it. The part number is W63583. Chassis code: ZN6. Trim named on the listing: Base. Included: 4 bushings and 2 tubes. This part is for the rear of the vehicle.
A toe arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.
Expect a moderate job of about 2 hours. Get the car aligned once it is back on the ground. To go with it on the FR-S, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Sway Bar Vehicle Link Kit.
Features
- Easy to fit: Designed for an easy install with ordinary shop equipment.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Grease: Molybdenum disulfide grease is included to help the parts last.
- Material: The part is made of polyurethane.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
Specifications
| Part Number | W63583 |
| Part Name | Toe Arm Bushing |
| Vehicle | 2013-2016 Scion FR-S Base |
| Chassis Code | ZN6 |
| Bushing 1 Inner Diameter | 14.3 mm |
| Bushing 1 Outer Diameter | 38 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
