Product Details

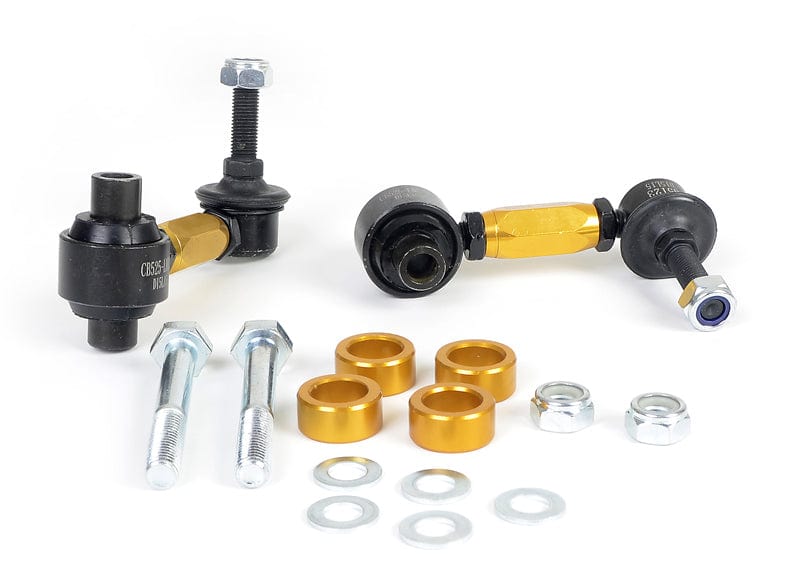

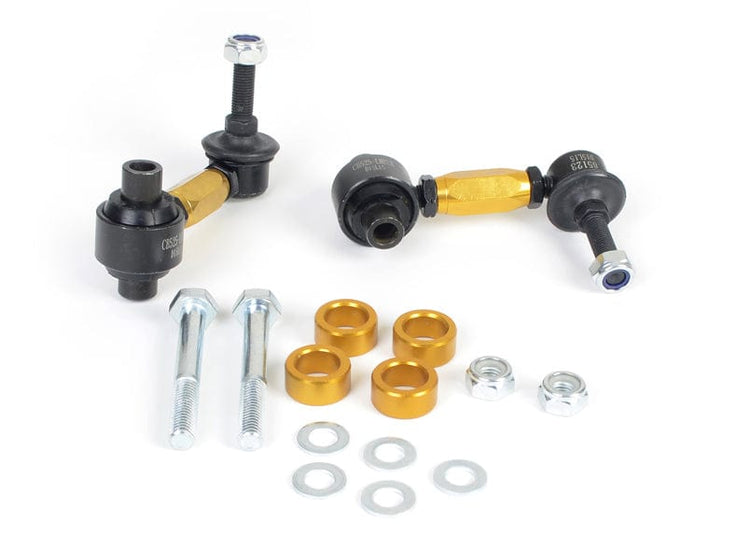

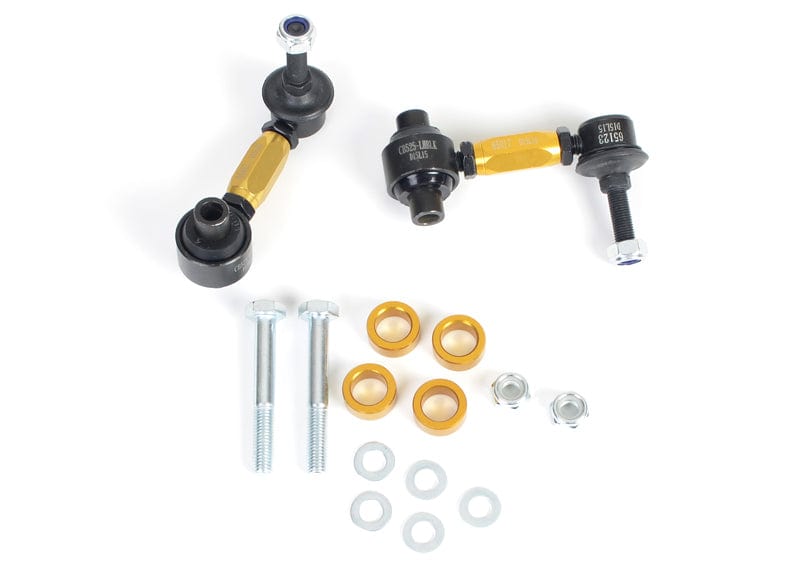

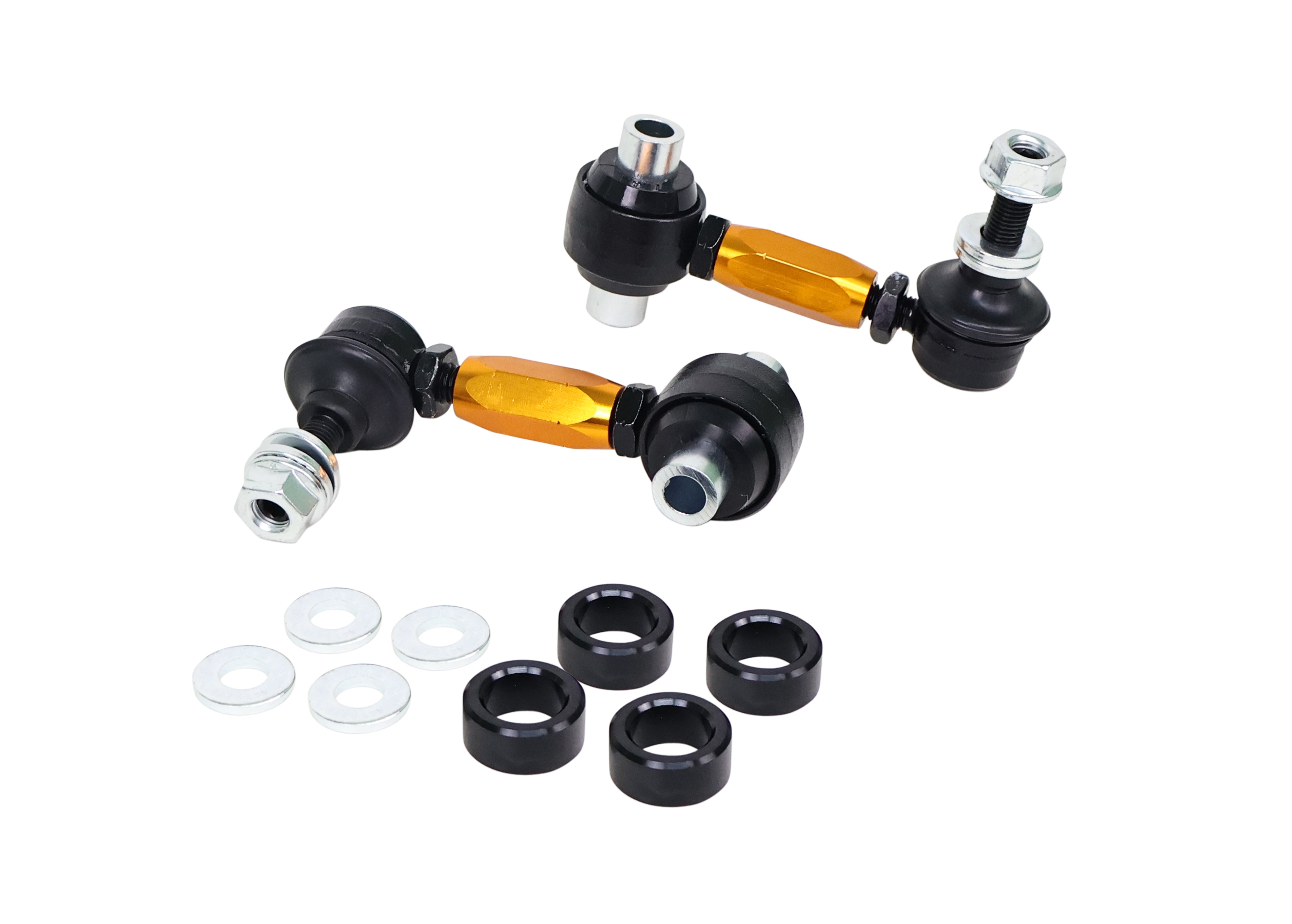

This Whiteline Adjustable Rear Sway Bar Link fits the 2013-2016 Scion FR-S Base (ZN6). It goes on the rear of the vehicle. Application note: Adjustable Extra Heavy Duty. You receive 2 links, 4 spacers, 2 bolts, 8 washers, and 2 nuts. The part number is KLC182.

The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Expect a moderate job of about 1 hour. No alignment is needed afterward. To go with it on the FR-S, see 14mm Adjustable Front Camber Bolts, Adjustable Sway Bar Vehicle Link Kit, and Rear Subframe Mount Bushing.

Features

  • Pre-greased: Joints arrive pre-greased and ready to install.
  • Warranty: Whiteline backs it with a warranty listed at 3 years and 60,000 miles.
  • Polyurethane bushings: Polyurethane bushings reduce flex and movement for a steadier feel.
  • DIY friendly: A straightforward bolt-on job for a home mechanic.
  • Hardware: Also in the box: locking nuts and washers.
  • Construction: The body is made from high-grade alloy for strength without added weight.
Specifications
Part Number KLC182
Part Name Sway Bar Link
Vehicle 2013-2016 Scion FR-S Base
Chassis Code ZN6
Adjustable Yes
Bolt Thread Diameter 10 mm
Bushing Material Polyurethane
Bushings Included Yes
Color Black
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links, 4 Spacers, 2 Bolts, 8 Washers, 2 Nuts
Length 90-115 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2013ScionFR-SRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2014ScionFR-SRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2015ScionFR-SRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2016ScionFR-SRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
