Product Details

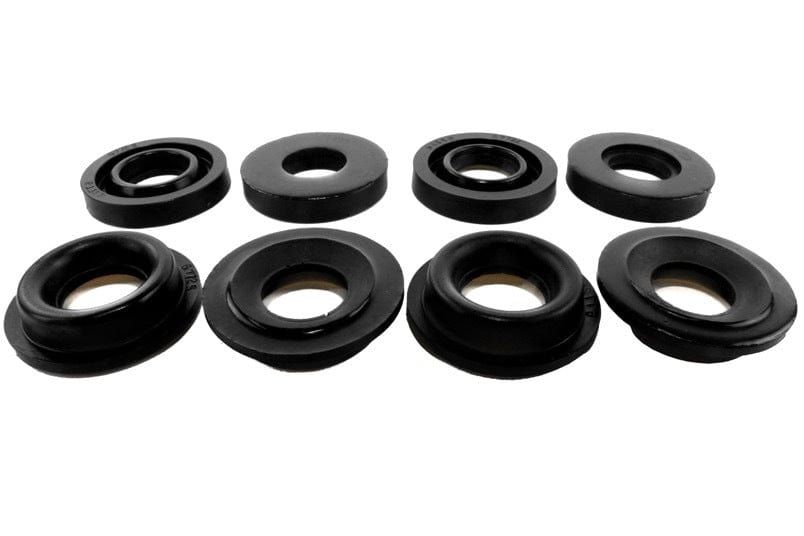

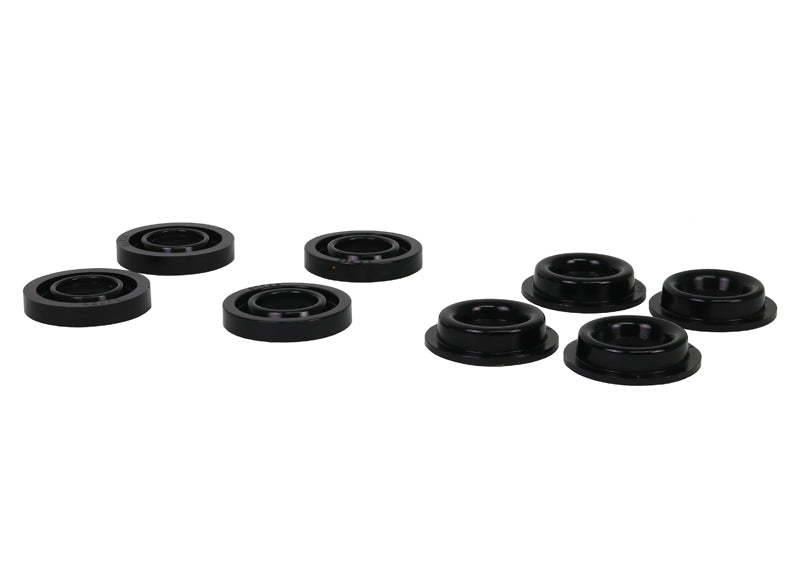

This Whiteline Rear Subframe Mount Bushing fits the 2013-2016 Scion FR-S Base (ZN6). The part number is KDT922. Whiteline's note for this fit: Positive traction kit: inserts only, locks subframe to body. This part is for the rear of the vehicle. The kit contains 8 insert bushings, an install guide, and grease.
Rubber subframe mounts compress and stretch every time the car loads up, and the subframe moves with them. Reducing that lost motion tends to show up as steadier tracking and a more immediate rear end in corners. This is a positive traction style kit, designed to lock the subframe to the body.
Expect a difficult job of about 4 hours. An alignment is required after installation. To go with it on the FR-S, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Sway Bar Vehicle Link Kit.
Features
- Grease: Moly grease is supplied to prolong the life of the parts.
- Insert design: Designed to fit with the factory bushing in place.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Install guide: An install guide comes in the box.
- Bonded design: A bonded design adds strength for high load applications.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
Specifications
| Part Number | KDT922 |
| Part Name | Subframe Mount Bushing |
| Vehicle | 2013-2016 Scion FR-S Base |
| Chassis Code | ZN6 |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 4 |
| Kit Contents | 8 Insert Bushings, Install Guide, Grease |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Positive traction kit - inserts only - locks subframe to body |
