Product Details

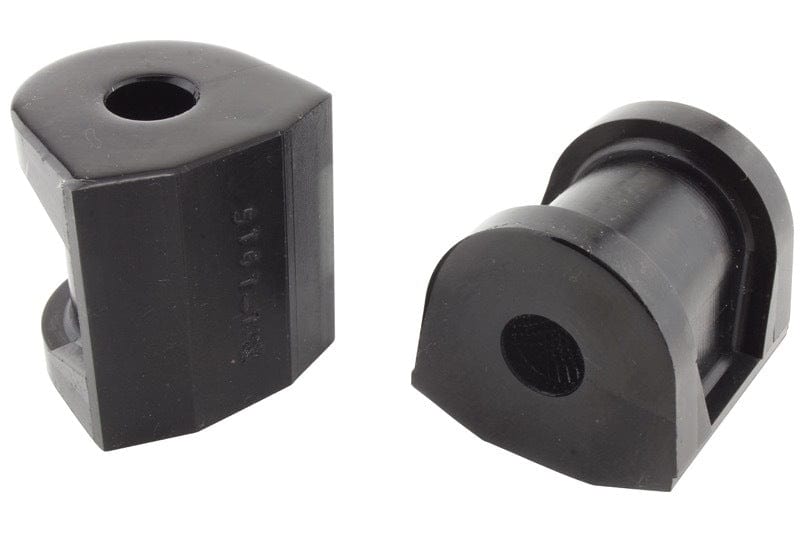

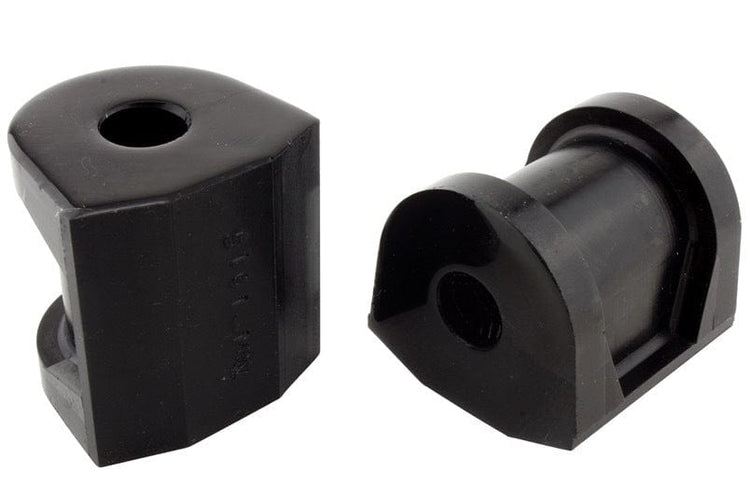

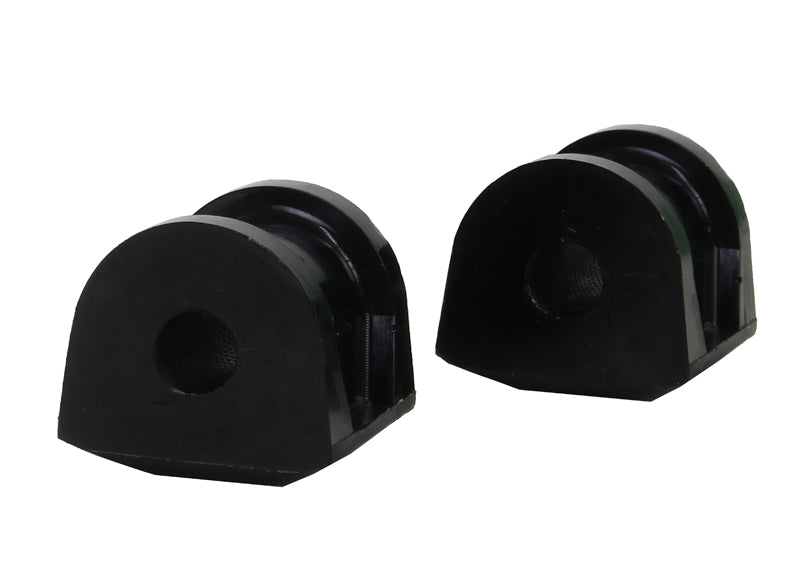

This Whiteline Rear Sway Bar Mount Bushing Kit fits the 2013-2016 Scion FR-S Base (ZN6). Part number W23448. You receive 2 bushings. This part is for the rear of the vehicle.

Sway bar mount bushings work as the bearings of the roll-control system. They need to hold the bar firmly without binding, and they have to cope with constant twisting. A new set restores that balance and quiets the knocks that worn ones make.

Installation is rated easy, with about 1 hour of work listed. It does not require a wheel alignment. To go with it on the FR-S, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Sway Bar Vehicle Link Kit.

Features

  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
Specifications
Part Number W23448
Part Name Sway Bar Mount Bushing
Vehicle 2013-2016 Scion FR-S Base
Chassis Code ZN6
Bar Diameter 14 mm
Grade Type Regular
Grease Fitting Included No
Inside Diameter 14 mm
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 2 Bushings
Mounting Hardware Included No
Outside Diameter 39 mm
Vehicle Placement Rear
Wheel Alignment Required No
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2013ScionFR-SRWD
2014ScionFR-SRWD
2015ScionFR-SRWD
2016ScionFR-SRWD
