Product Details

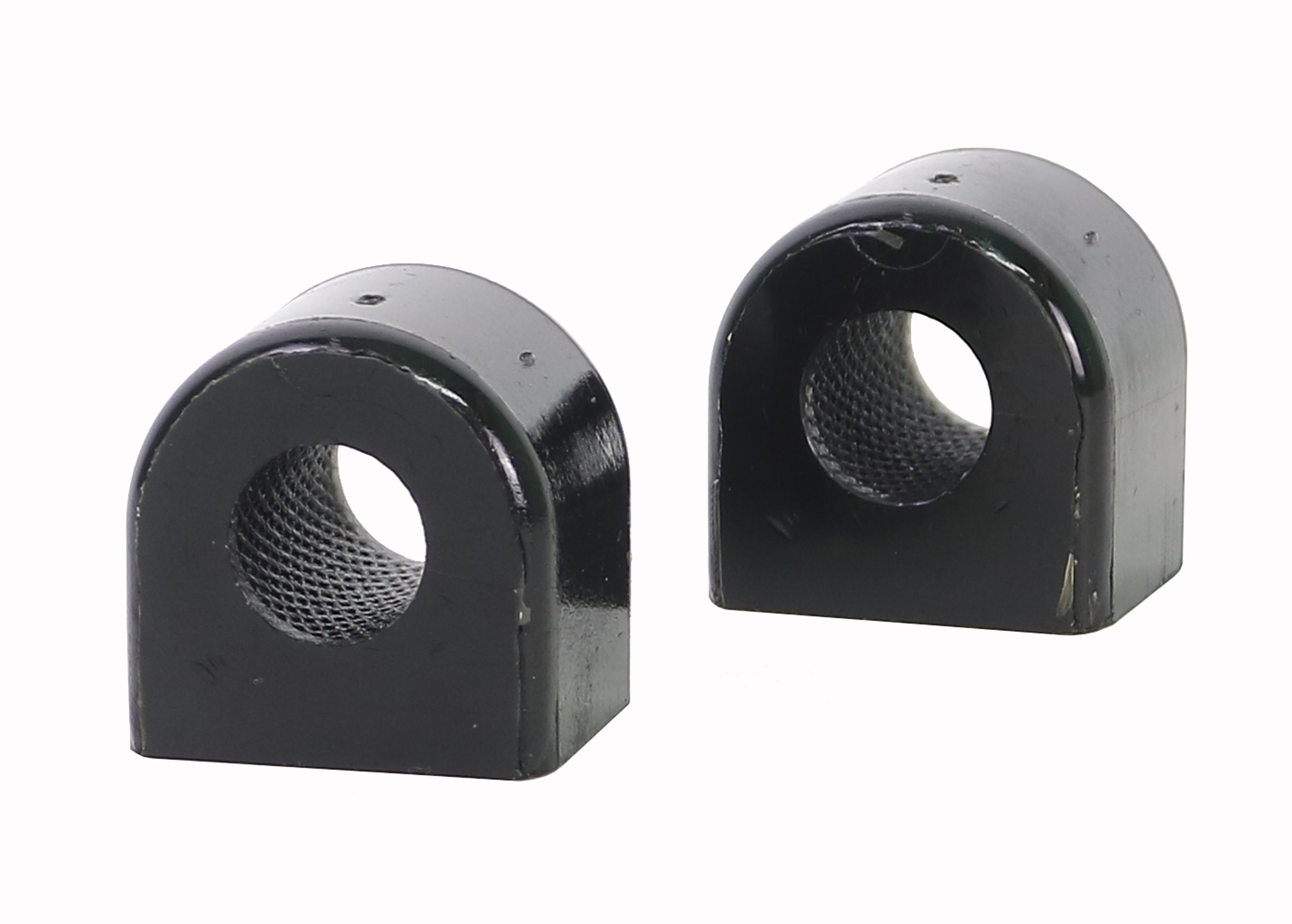

This Whiteline Rear Sway Bar Mount Bushing Kit fits the 2012-2023 Chrysler 300 SRT8 Base (LD). This part is for the rear of the vehicle. Chassis code: LD. In the box: 2 bushings. Whiteline part number: W23331.
A bar that moves in its mounts is a bar that is not working. Replacing soft or worn mount bushings keeps it centered and lets it start resisting body roll from the first degree of lean.
Installation is rated easy, with about 1 hour of work listed. It does not require a wheel alignment. To go with it on the 300 SRT8, see Rear Subframe Mount Bushing, Front and Rear Sway Bar Kit, and Rear Trailing Arm Lower Front Bushing.
Features
- Grease: Moly grease is supplied to prolong the life of the parts.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
Specifications
| Part Number | W23331 |
| Part Name | Sway Bar Mount Bushing |
| Vehicle | 2012-2023 Chrysler 300 SRT8 Base |
| Drivetrain | RWD |
| Chassis Code | LD |
| Bar Diameter | 18 mm |
| Grade Type | Regular |
| Grease Fitting Included | No |
| Inside Diameter | 14.5 mm |
| Installation Difficulty | Easy |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Bushings |
| Mounting Hardware Included | No |
| Outside Diameter | 39.7 mm |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | - |
