Product Details

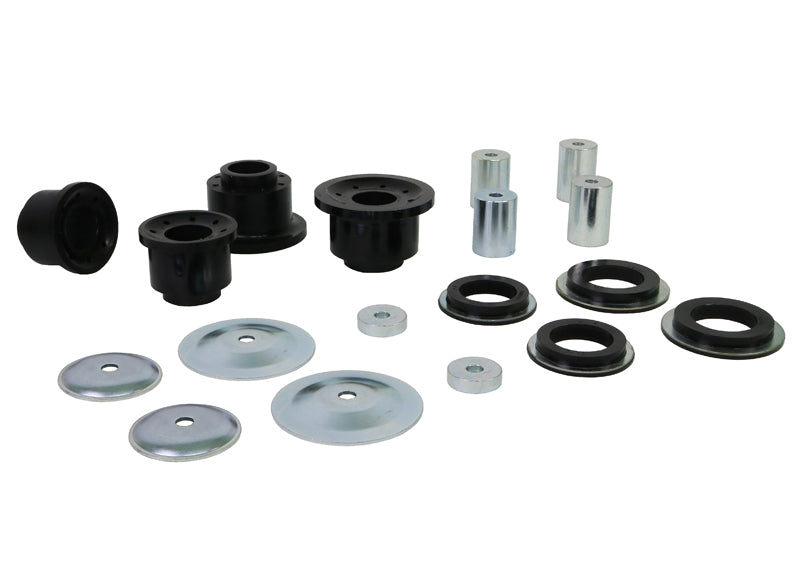

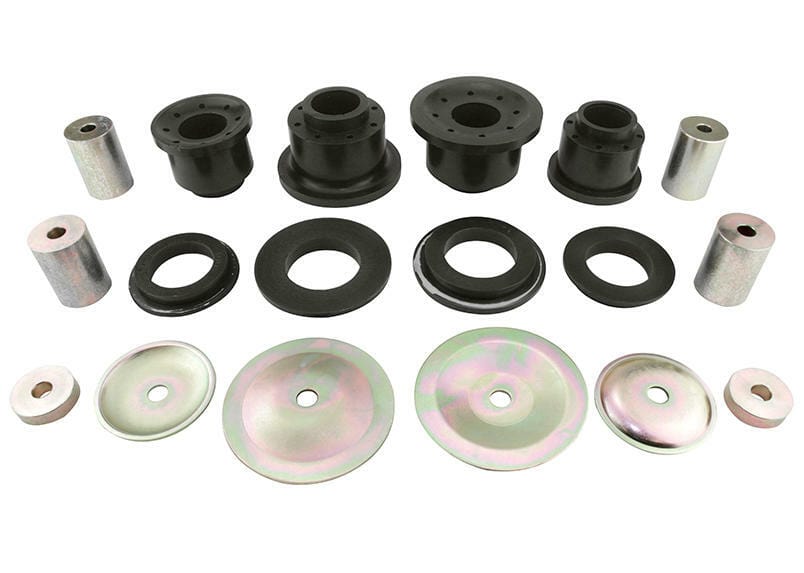

This Whiteline Rear Subframe Mount Bushing fits the 2012-2023 Chrysler 300 SRT8 Base (LD). This part is for the rear of the vehicle. Whiteline part number: W93343. In the box: 8 bushings, 4 tubes, 6 washers, an install guide, and grease.
Rubber subframe mounts compress and stretch every time the car loads up, and the subframe moves with them. Reducing that lost motion tends to show up as steadier tracking and a more immediate rear end in corners.
Installation is rated difficult, with about 4 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the 300 SRT8, see Front and Rear Sway Bar Kit, Rear Trailing Arm Lower Front Bushing, and Rear Sway Bar Mount Bushing Kit.
Features
- Install guide: Step-by-step installation instructions come with it.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
- Finish: Powder coating covers the metal for protection against chips and rust.
- Corrosion protection: The hardware is plated to stand up to road conditions.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
Specifications
| Part Number | W93343 |
| Part Name | Subframe Mount Bushing |
| Vehicle | 2012-2023 Chrysler 300 SRT8 Base |
| Drivetrain | RWD |
| Chassis Code | LD |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 4 |
| Kit Contents | 8 Bushings, 4 Tubes, 6 Washers, Install Guide, Grease |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
