Product Details

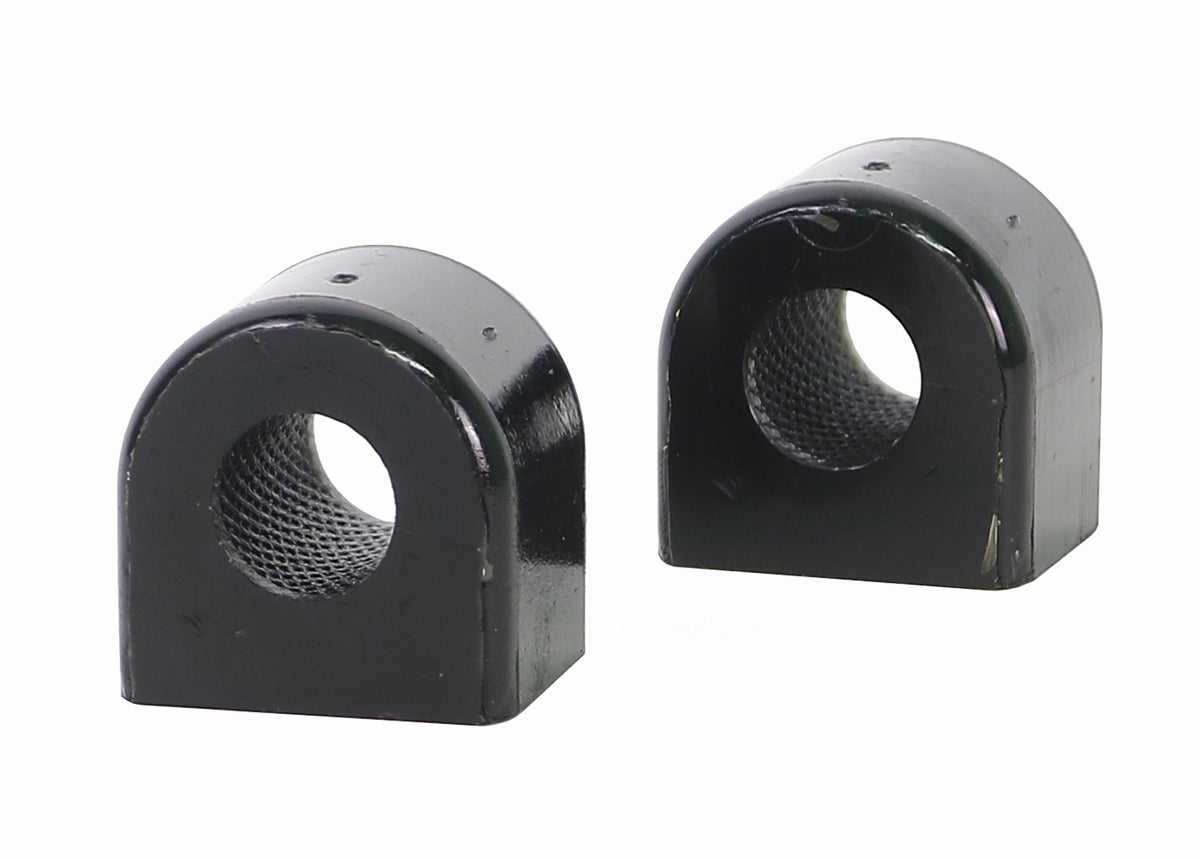

This Whiteline Rear Sway Bar Mount Bushing Kit fits the 2005-2023 Chrysler 300C Base, Limited (LX/LD). Part number W23331. In the box: 2 bushings. This part is for the rear of the vehicle.
Sway bar mount bushings work as the bearings of the roll-control system. They need to hold the bar firmly without binding, and they have to cope with constant twisting. A new set restores that balance and quiets the knocks that worn ones make.
Whiteline rates the install as easy and lists about 1 hour. A wheel alignment is not required. Other Whiteline parts we list for the 300C: Rear Subframe Mount Bushing, Front and Rear Sway Bar Kit, and Rear Trailing Arm Lower Front Bushing.
Features
- Grease: Molybdenum disulfide grease comes with it for a longer service life.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
Specifications
| Part Number | W23331 |
| Part Name | Sway Bar Mount Bushing |
| Vehicle | 2005-2023 Chrysler 300C Base, Limited |
| Drivetrain | RWD/AWD |
| Chassis Code | LX/LD |
| Bar Diameter | 18 mm |
| Grade Type | Regular |
| Grease Fitting Included | No |
| Inside Diameter | 14.5 mm |
| Installation Difficulty | Easy |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Bushings |
| Mounting Hardware Included | No |
| Outside Diameter | 39.7 mm |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | - |
