Product Details

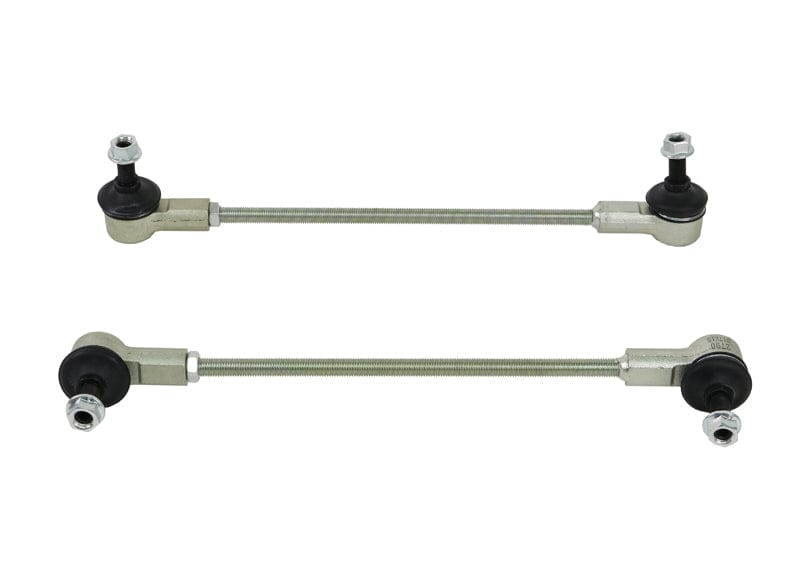

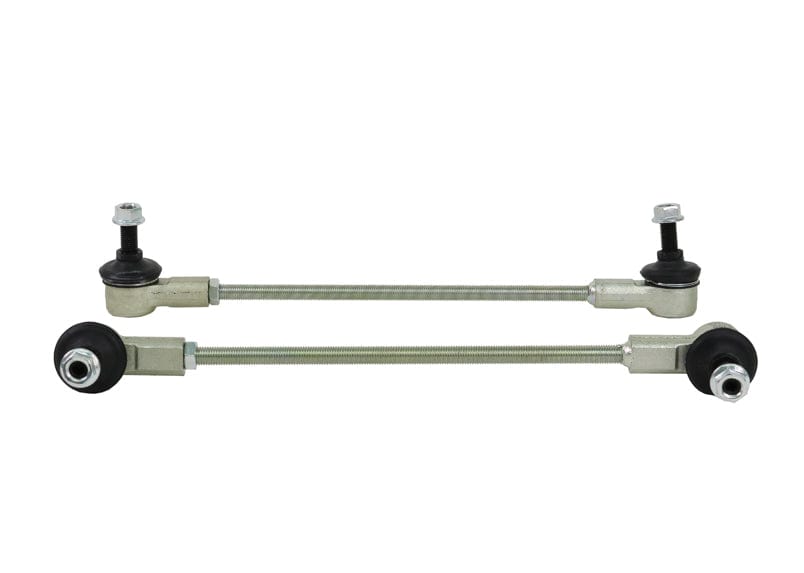

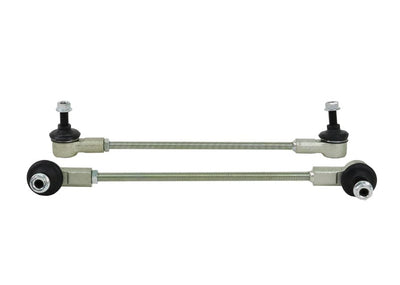

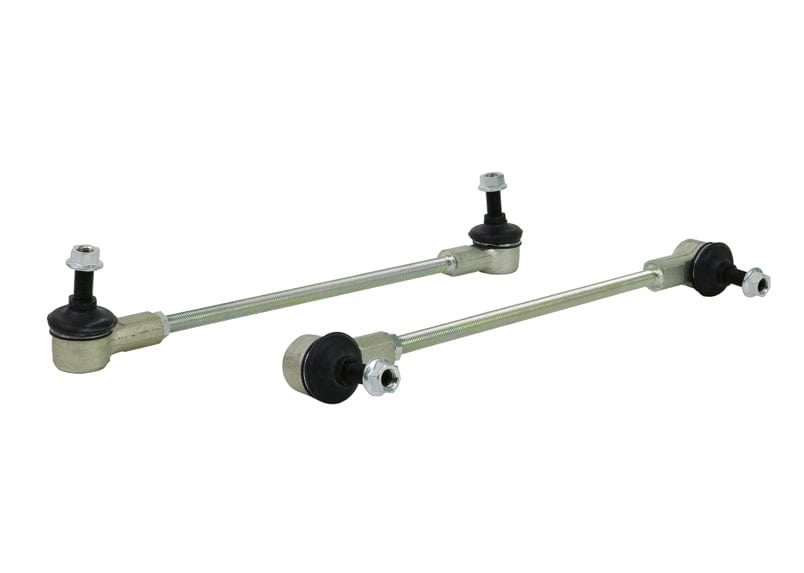

This Whiteline Rear Sway Bar Link fits the 2009 Hyundai Elantra Touring (HD). Whiteline part number: W23180. The kit contains 2 links. Position: rear.

The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in.

Installation is rated easy, with about 1 hour of work listed. No alignment is needed afterward. We also list Front Sway Bar Link Kit, Rear Lower Trailing Arm Bushing, and Front Lower Inner Rear Control Arm Bushing Kit - Double Offset for the Elantra.

Features

  • Install guide: An install guide comes in the box.
  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
  • Preload-free setup: Setting the length on the car lets the bar rest without preload.
  • Ball joints: Steel ball joint ends are built for heavy loads and free movement.
  • Easy to fit: Designed for an easy install with ordinary shop equipment.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
Specifications
Part Number W23180
Part Name Sway Bar Link
Vehicle 2009 Hyundai Elantra Touring
Chassis Code HD
Bolt Thread Diameter 10 mm
Grade Type Performance
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 2 Links
Length 80-320 mm
Material Steel
Vehicle Placement Rear
Wheel Alignment Required No
Notes Universal cut to length link - must cut to 76mm

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009HyundaiElantraFWDUniversal cut to length link - must cut to 76mm
