Product Details

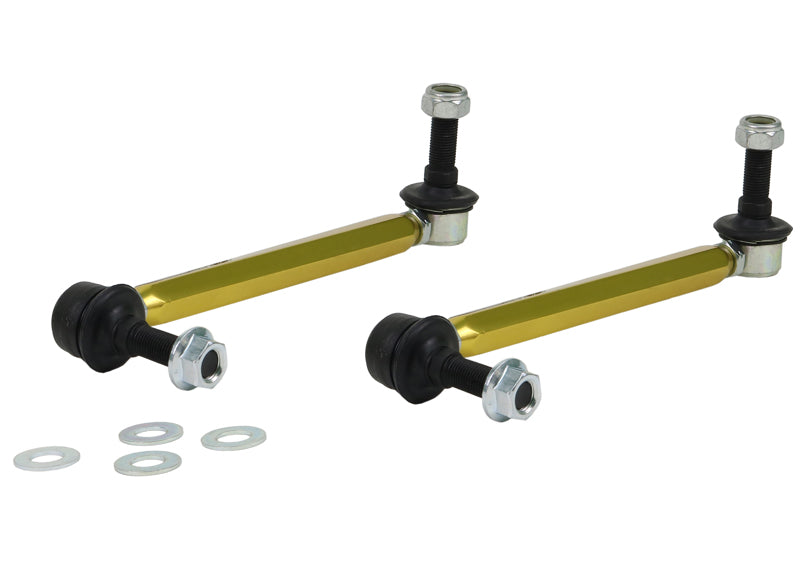

This Whiteline Front Sway Bar Link Kit fits the 2007-2010 Hyundai Elantra. Whiteline's note for this fit: Adjustable Extra Heavy Duty. The part number is KLC180-235. Chassis code: HD. It goes on the front of the vehicle. You receive 2 links.
A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.
Whiteline rates the install as moderate and lists about 1 hour. No alignment is needed afterward. Other Whiteline parts we list for the Elantra: Adjustable Rear Sway Bar Link, Rear Lower Trailing Arm Bushing, and Front Lower Inner Rear Control Arm Bushing Kit - Double Offset.
Features
- Easy to fit: Designed for an easy install with ordinary shop equipment.
- Hardware: The kit includes locking nuts and washers.
- Material: Built from aluminum alloy.
- Grease: Molybdenum disulfide grease comes with it for a longer service life.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
| Part Number | KLC180-235 |
| Part Name | Sway Bar Links |
| Vehicle | 2007-2010 Hyundai Elantra |
| Chassis Code | HD |
| Adjustable | Yes |
| Bolt Thread Diameter | 12 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 230-255 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 230-255mm. Bolt Diameter 12mm. |
