Product Details

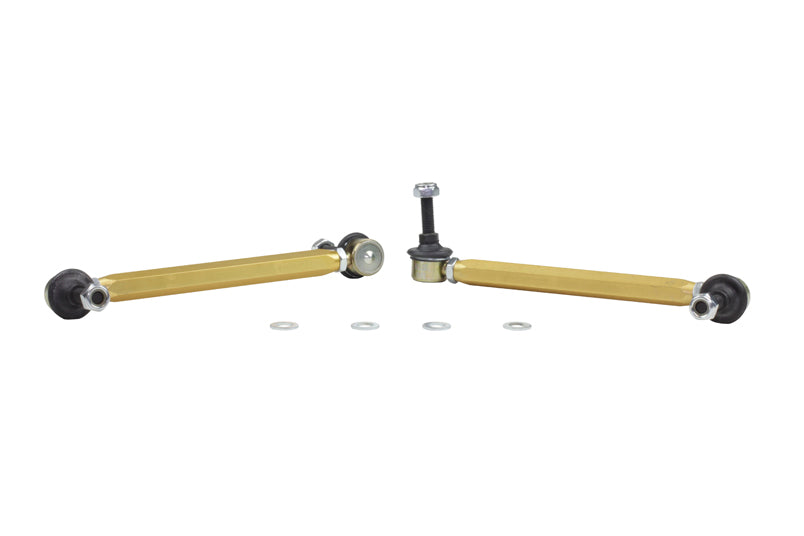

For the 2006-2011 Hyundai Elantra GLS, Limited (HD), Whiteline makes the Adjustable Rear Sway Bar Link. This part is for the rear of the vehicle. Whiteline part number: KLC106. The listing names the GLS and Limited trims. Included: 2 links.
The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.
Expect a moderate job of about 1 hour. A wheel alignment is not required. Working on the same car? We also list Front Sway Bar Link Kit, Rear Lower Trailing Arm Bushing, and Front Lower Inner Rear Control Arm Bushing Kit - Double Offset for the Elantra.
Features
- Hardware: Also in the box: locking nuts and washers.
- Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
- Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
- Install guide: Whiteline packs an install guide with it.
- Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
- Construction: Made from strong, light alloy.
Specifications
| Part Number | KLC106 |
| Part Name | Sway Bar Link |
| Vehicle | 2006-2011 Hyundai Elantra GLS, Limited |
| Chassis Code | HD |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 230-255 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | - |
