Product Details

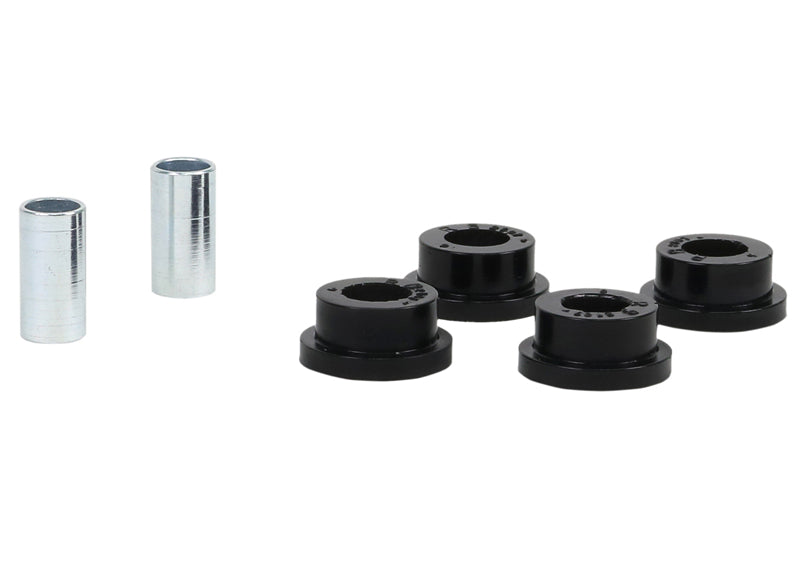

This Whiteline Rear Sway Bar Link Outer Bushing fits the 1988-1991 Toyota Corolla GTS (E90). This part is for the rear of the vehicle. In the box: 4 bushings and 2 tubes. Whiteline's note for this fit: Sway bar eyelet: 2 piece bushing design. The part number is W22107.

The bar can only resist roll as well as its links are attached. A worn link bushing adds slack that the bar must take up before it works, so replacing it is a low-cost way to bring back sharp response. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated easy, with about 1 hour of work listed. A wheel alignment is not required. Other Whiteline parts we list for the Corolla: Adjustable Rear Sway Bar Link, 12mm Adjustable Front Camber Bolts, and Front Control Arm Lower Inner Rear Bushing.

Features

  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
Specifications
Part Number W22107
Part Name Sway Bar Link Bushing
Vehicle 1988-1991 Toyota Corolla GTS
Chassis Code E90
Bushing Color Black
Bushing Material Polyurethane
Durometer 72
Grade Type Regular
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 4 Bushings, 2 Tubes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Sway bar eyelet - 2 piece bushing design

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
1988ToyotaCorollaSway bar eyelet - 2 piece bushing design
1989ToyotaCorollaSway bar eyelet - 2 piece bushing design
1990ToyotaCorollaSway bar eyelet - 2 piece bushing design
1991ToyotaCorollaSway bar eyelet - 2 piece bushing design
