Product Details

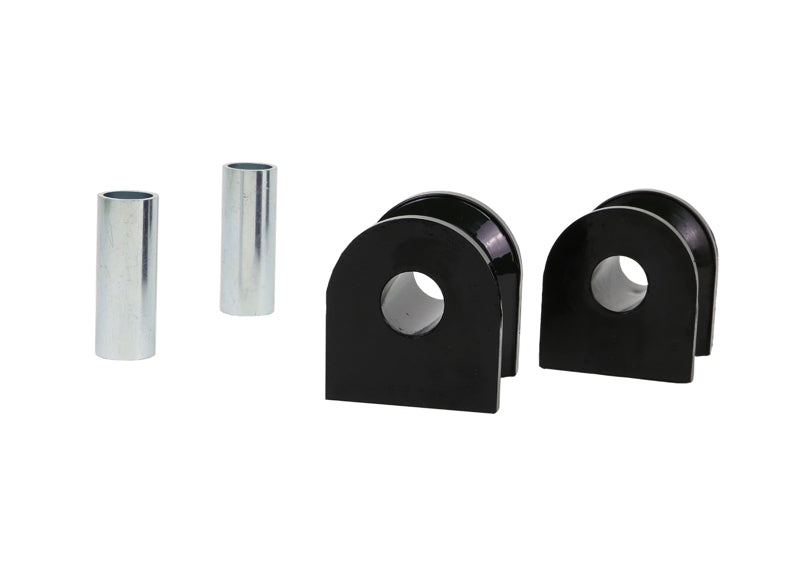

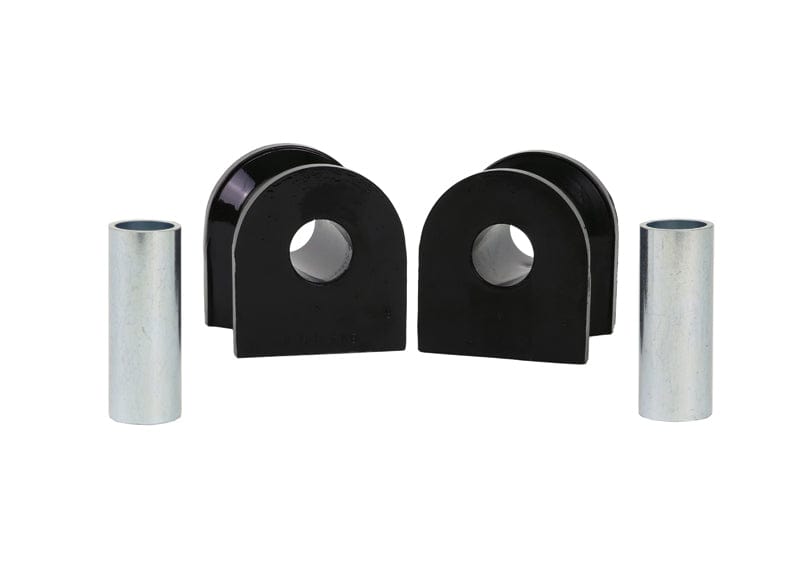

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 1988-1989 Toyota Corolla SR5 All Trac (E90). Placement: front. You receive 2 bushings and 2 tubes. The part number is W51499. Whiteline's note for this fit: Standard Replacement.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated difficult, with about 2.5 hours of work listed. An alignment is required after installation. To go with it on the Corolla, see Adjustable Rear Sway Bar Link, 12mm Adjustable Front Camber Bolts, and Front Sway Bar Washer Kit.

Features

  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Material: Polyurethane construction.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Easy to fit: Installation does not call for special skills or tools.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
Specifications
Part Number W51499
Part Name Control Arm Bushing
Vehicle 1988-1989 Toyota Corolla SR5 All Trac
Chassis Code E90
Bushing 1 Inner Diameter 18.2 mm
Bushing 1 Outer Diameter 58 mm
Bushing Quantity 2 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 2 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Standard Replacement

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
1988ToyotaCorollaStandard Replacement
1989ToyotaCorollaStandard Replacement
