Product Details

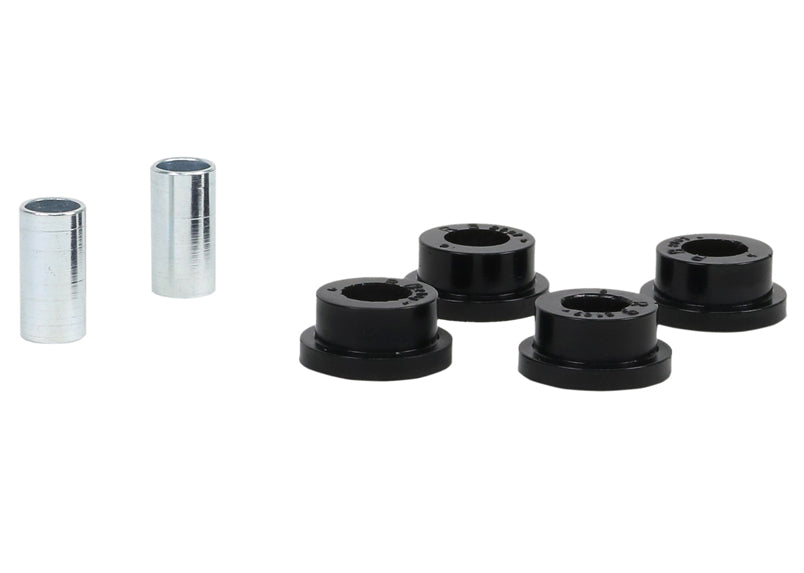

This Whiteline Rear Sway Bar Link Outer Bushing fits the 1988-1989 Toyota Corolla SR5 All Trac (E90). In the box: 4 bushings and 2 tubes. Part number W22107. Whiteline's note for this fit: Sway bar eyelet: 2 piece bushing design. Placement: rear.

The bar can only resist roll as well as its links are attached. A worn link bushing adds slack that the bar must take up before it works, so replacing it is a low-cost way to bring back sharp response. The polyurethane used here deflects much less than the original rubber under the same load.

Expect an easy job of about 1 hour. A wheel alignment is not required. To go with it on the Corolla, see Adjustable Rear Sway Bar Link, 12mm Adjustable Front Camber Bolts, and Front Control Arm Lower Inner Rear Bushing.

Features

  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Bushing material: Made of polyurethane, which resists deflection better than soft rubber.
Specifications
Part Number W22107
Part Name Sway Bar Link Bushing
Vehicle 1988-1989 Toyota Corolla SR5 All Trac
Chassis Code E90
Bushing Color Black
Bushing Material Polyurethane
Durometer 72
Grade Type Regular
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 4 Bushings, 2 Tubes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Sway bar eyelet - 2 piece bushing design

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
1988ToyotaCorollaSway bar eyelet - 2 piece bushing design
1989ToyotaCorollaSway bar eyelet - 2 piece bushing design
