Product Details

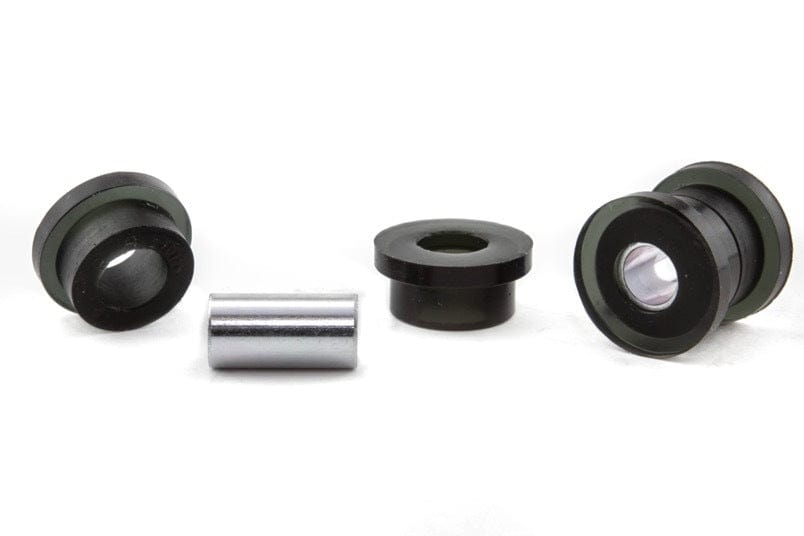

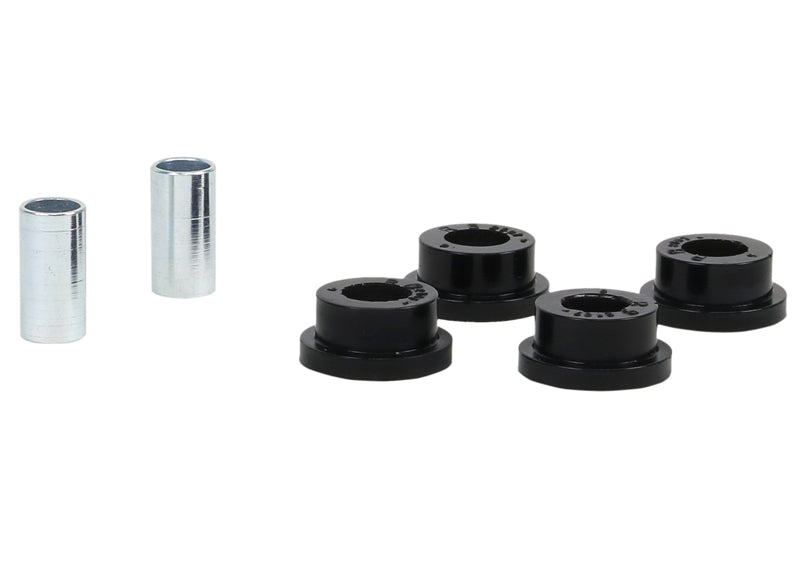

This Whiteline Rear Sway Bar Link Outer Bushing fits the 1984-1992 Toyota Corolla LE (E80/E90). Application note: Sway bar eyelet: 2 piece bushing design. Included: 4 bushings and 2 tubes. The part number is W22107. It goes on the rear of the vehicle.

A sway bar link has a bushing at each end where it connects to the bar and the suspension, and those bushings let the link pivot. When they are soft or worn, the bar takes up slack before it begins resisting body roll, which feels like a delay in turn-in and shows up as clunking. Replacing them restores a firm connection. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated easy, with about 1 hour of work listed. No alignment is needed afterward. To go with it on the Corolla, see Adjustable Rear Sway Bar Link, 12mm Adjustable Front Camber Bolts, and Front Control Arm Lower Inner Rear Bushing.

Features

  • Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
Specifications
Part Number W22107
Part Name Sway Bar Link Bushing
Vehicle 1984-1992 Toyota Corolla LE
Chassis Code E80/E90
Bushing Color Black
Bushing Material Polyurethane
Durometer 72
Grade Type Regular
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 4 Bushings, 2 Tubes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Sway bar eyelet - 2 piece bushing design

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
1984ToyotaCorollaSway bar eyelet - 2 piece bushing design
1985ToyotaCorollaSway bar eyelet - 2 piece bushing design
1986ToyotaCorollaSway bar eyelet - 2 piece bushing design
1987ToyotaCorollaSway bar eyelet - 2 piece bushing design
1988ToyotaCorollaSway bar eyelet - 2 piece bushing design
1989ToyotaCorollaSway bar eyelet - 2 piece bushing design
1990ToyotaCorollaSway bar eyelet - 2 piece bushing design
1991ToyotaCorollaSway bar eyelet - 2 piece bushing design
1992ToyotaCorollaSway bar eyelet - 2 piece bushing design
