Product Details

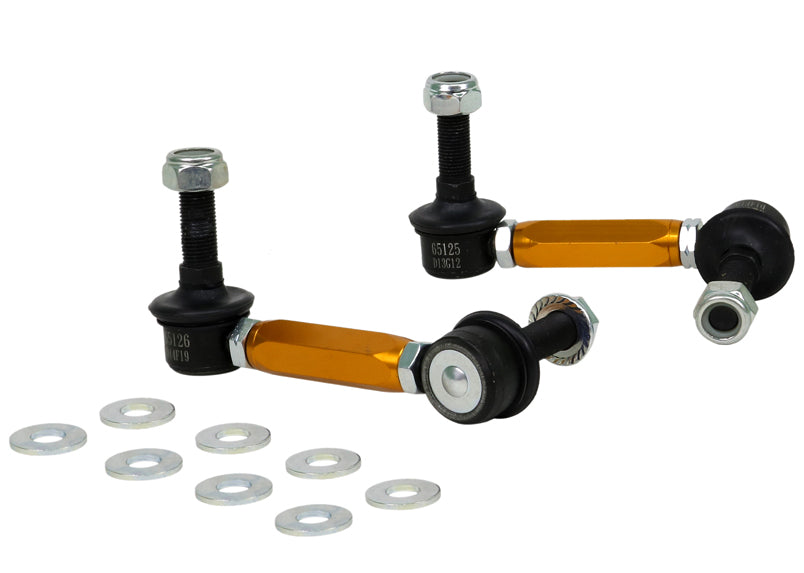

This Whiteline Rear Sway Bar Link fits the 2018-2023 Kia Stinger. Placement: rear. It is listed for the CK chassis. Order it as part number KLC180-115. Included: 2 links. Application note: Adjustable Extra Heavy Duty.
A sway bar link is the short rod that ties each end of the rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.
Installation is rated moderate, with about 1 hour of work listed. A wheel alignment is not required. Working on the same car? We also list Front Sway Bar Link Kit, Front and Rear Sway Bar Kit, and Adjustable 24mm Front Sway Bar for the Stinger.
Features
- Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
- Preload-free setup: Setting the length on the car lets the bar rest without preload.
- Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
- Construction: Made from strong, light alloy.
- Install guide: Instructions for fitting are packed in the box.
- Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
Specifications
| Part Number | KLC180-115 |
| Part Name | Sway Bar Link |
| Vehicle | 2018-2023 Kia Stinger |
| Chassis Code | CK |
| Drivetrain | AWD/RWD |
| Adjustable | Yes |
| Bolt Thread Diameter | 12 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 110-135 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | No |
| Washers Included | Yes |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 12mm. |
