Product Details

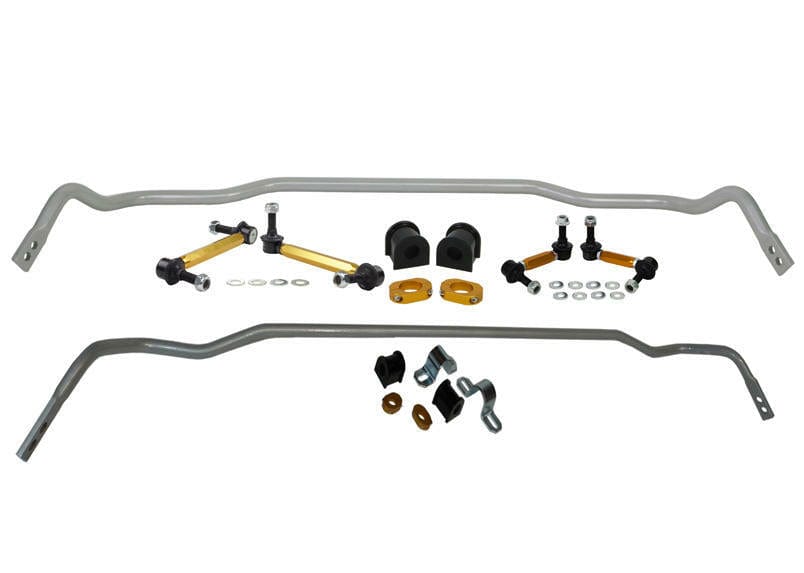

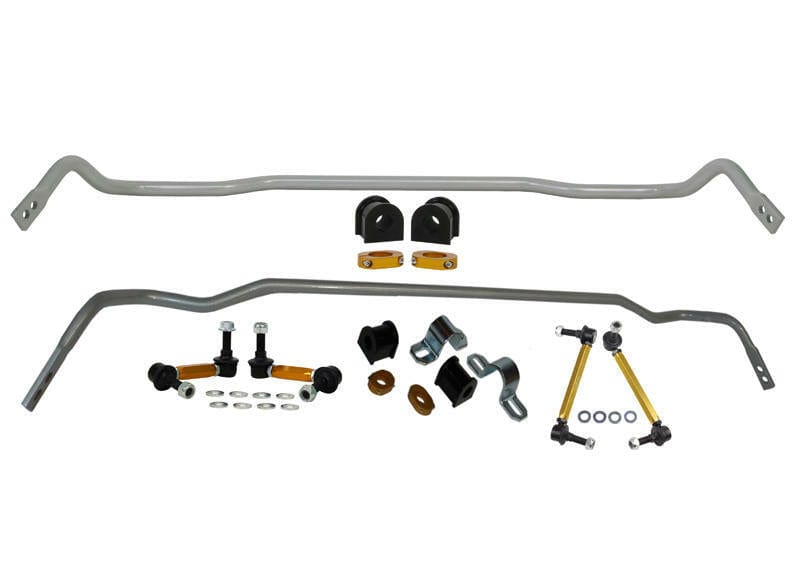

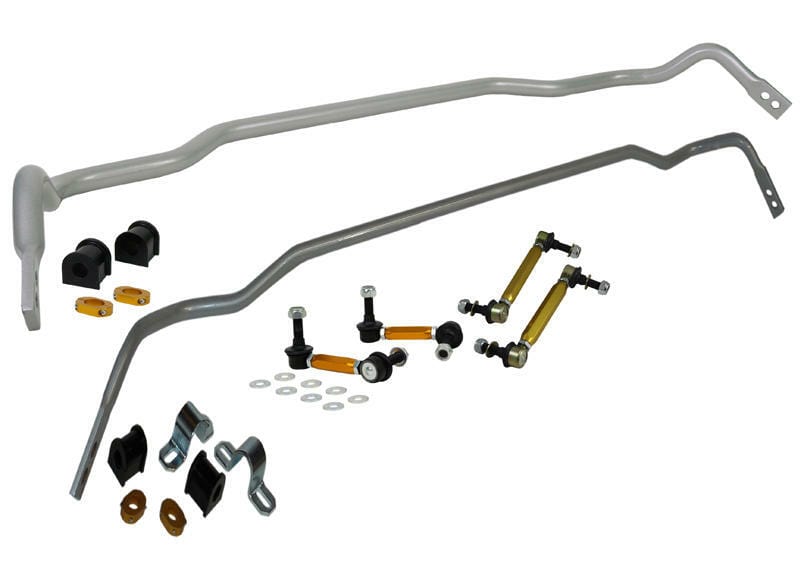

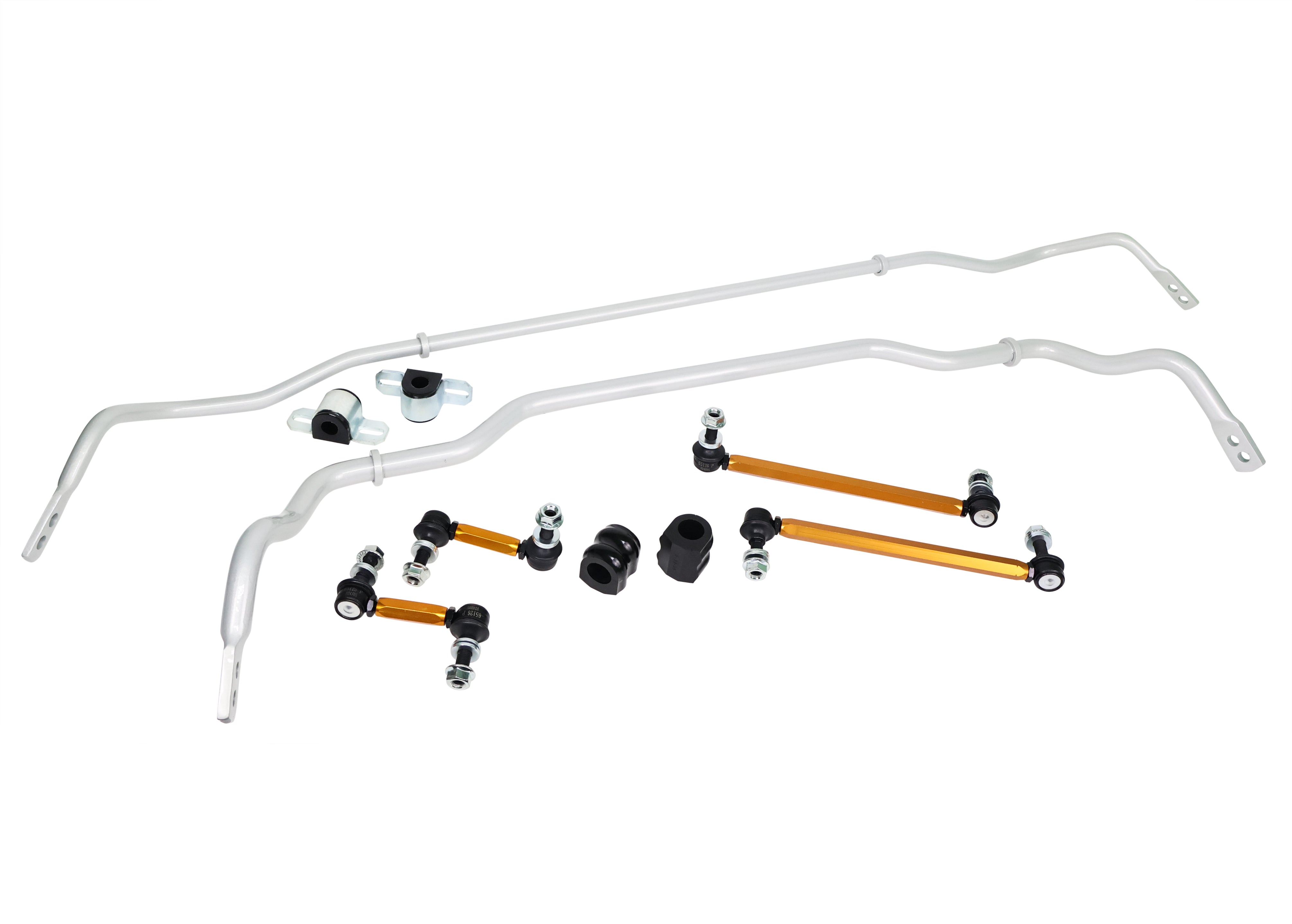

Made to fit the 2018-2023 Kia Stinger Base, GT, GT1, GT2, Premium (CK), the Front and Rear Sway Bar Kit from Whiteline. It goes on the front and rear of the vehicle. The listing names the Base, GT, GT1, GT2, and Premium trims. Part number BKK001. Included: 2 sway bars, 4 bushings, 2 saddles, 4 links, and 16 washers. Whiteline's note for this fit: Contains: Front and Rear Sway Bar kits with End links.
Front and rear sway bars work as a team. The bars resist roll by twisting, and their relative stiffness shapes whether the car feels planted or loose at the limit. This kit supplies both ends so the balance stays under control. The bar is adjustable, so the stiffness can be changed to suit the car and the road.
Installation is rated moderate, with about 3 hours of work listed. A wheel alignment is not required. Other Whiteline parts we list for the Stinger: Front Sway Bar Link Kit, Rear Sway Bar Link, and Adjustable 24mm Front Sway Bar.
Features
- Lateral locks: Lateral locks stop the bar sliding sideways under load.
- Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
- Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
- Roll control: Reduces body sway through turns.
Specifications
| Part Number | BKK001 |
| Part Name | Sway Bars |
| Vehicle | 2018-2023 Kia Stinger Base, GT, GT1, GT2, Premium |
| Chassis Code | CK |
| Bushing Material | Polyurethane |
| Sway Bar Adjustable - Front | Yes |
| Sway Bar Diameter - Front | 24 mm |
| Sway Bar Included - Front | Yes |
| Sway Bar Links Included - Front | Yes |
| Grade Type | Performance |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Sway Bars, 4 Bushings, 2 Saddles, 4 Links, 16 Washers |
| Sway Bar Adjustable - Rear | Yes |
| Sway Bar Diameter - Rear | 18 mm |
| Sway Bar Included - Rear | Yes |
| Sway Bar Links Included - Rear | Yes |
| Wheel Alignment Required | No |
| Notes | Contains: Front and Rear Sway Bar kits with End links, essential to Activate more grip |
