Product Details

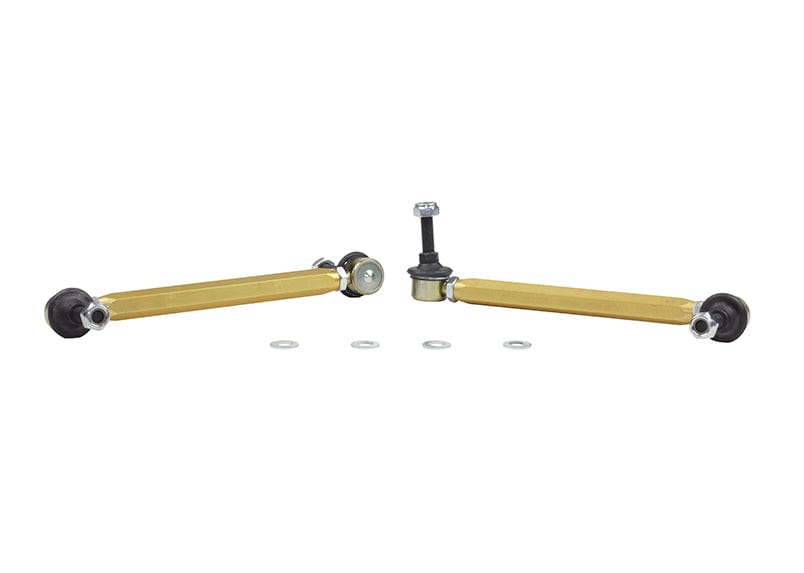

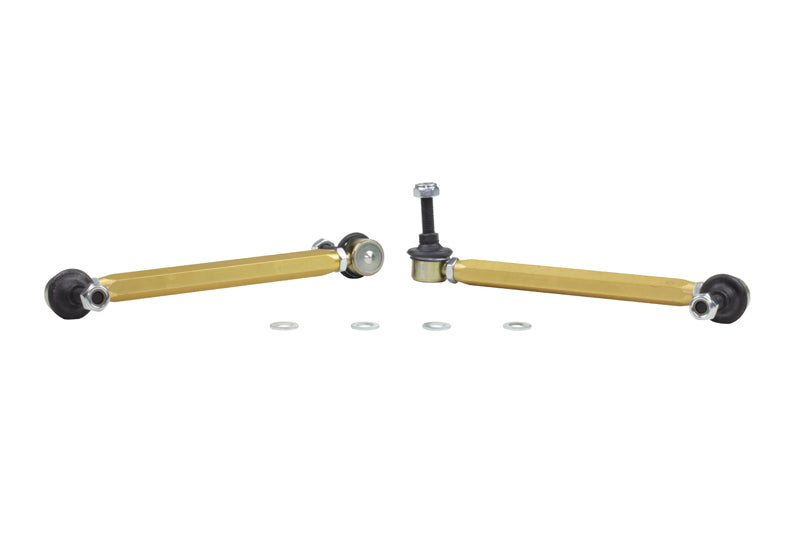

This Whiteline Adjustable Rear Sway Bar Link fits the 2010-2011 Hyundai Elantra Touring GLS, Touring SE (HD). The part number is KLC106. Placement: rear. In the box: 2 links.
A sway bar link is the short rod that ties each end of the rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.
Installation is rated moderate, with about 1 hour of work listed. A wheel alignment is not required. To go with it on the Elantra, see Front Sway Bar Link Kit, Rear Lower Trailing Arm Bushing, and Front Lower Inner Rear Control Arm Bushing Kit - Double Offset.
Features
- Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
- Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
- Pre-greased: Comes pre-greased, so it can go straight on the car.
- Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
- Hardware: Also in the box: locking nuts and washers.
- Anodized alloy: The alloy is anodized, adding a durable protective layer.
Specifications
| Part Number | KLC106 |
| Part Name | Sway Bar Link |
| Vehicle | 2010-2011 Hyundai Elantra Touring GLS, Touring SE |
| Chassis Code | HD |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 230-255 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | - |
