Product Details

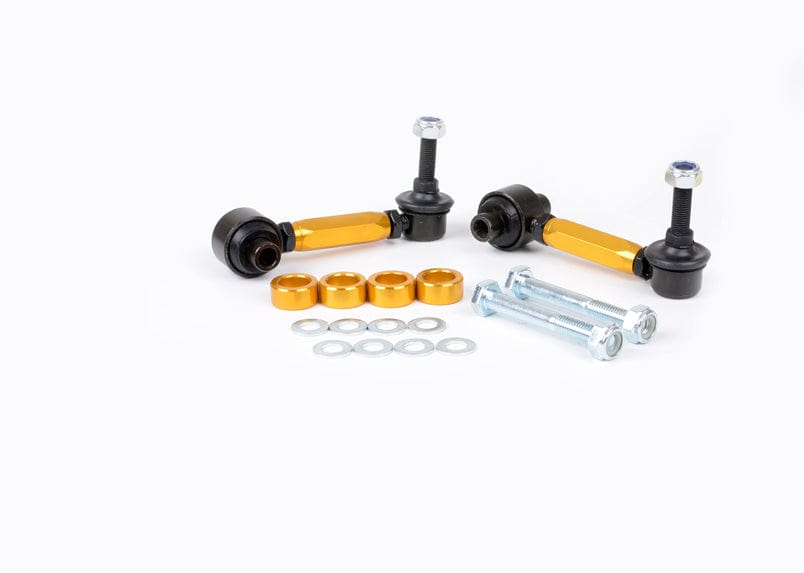

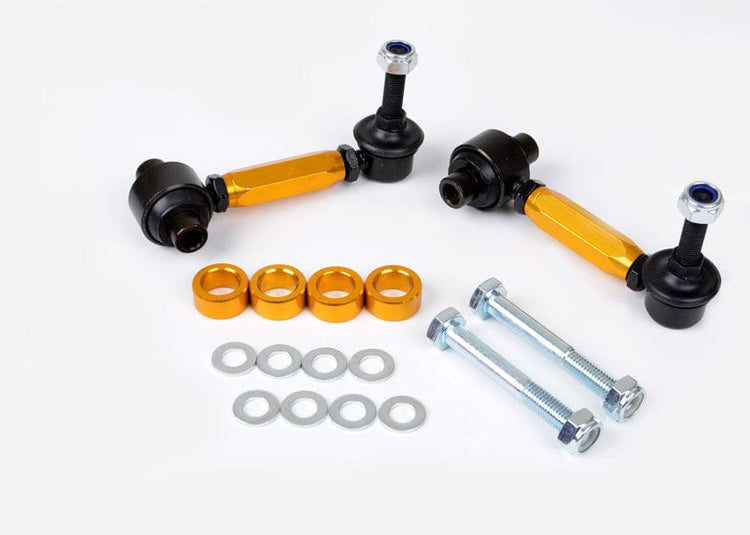

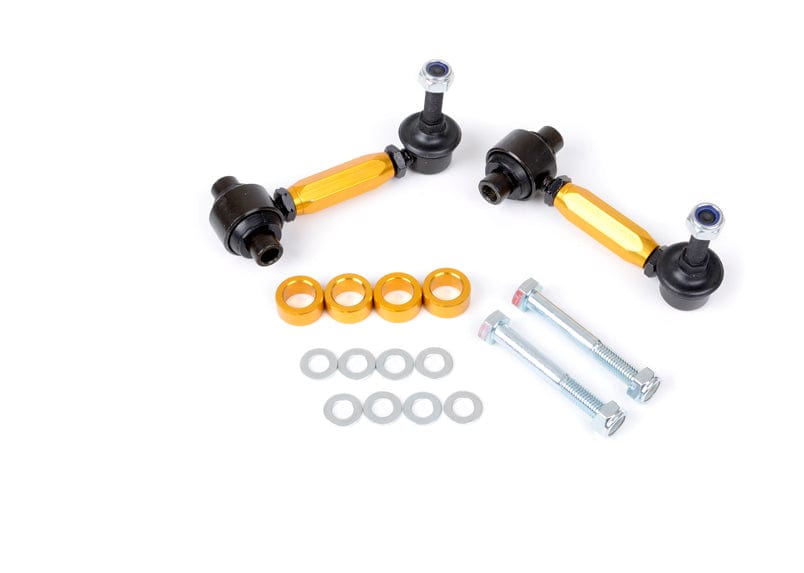

This Whiteline Adjustable Rear Sway Bar Link fits the 2015 Subaru XV Crosstrek Base (GP). Included: 2 links, 4 spacers, 2 bolts, 8 washers, and 2 nuts. The part number is KLC200. Position: rear. Whiteline's note for this fit: Adjustable Extra Heavy Duty.

The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Installation is rated moderate, with about 1 hour of work listed. No alignment is needed afterward. To go with it on the XV Crosstrek, see 14mm Adjustable Front Camber Bolts, Adjustable Sway Bar Vehicle Link Kit, and Rear Subframe Mount Bushing.

Features

  • Pre-greased: Comes pre-greased, so it can go straight on the car.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
  • Install guide: An install guide comes in the box.
  • Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
Specifications
Part Number KLC200
Part Name Sway Bar Link
Vehicle 2015 Subaru XV Crosstrek Base
Chassis Code GP
Adjustable Yes
Bolt Thread Diameter 10 mm
Bushing Color Black
Bushing Material Polyurethane
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links, 4 Spacers, 2 Bolts, 8 Washers, 2 Nuts
Length 110-135 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2015SubaruCrosstrekAWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
