Product Details

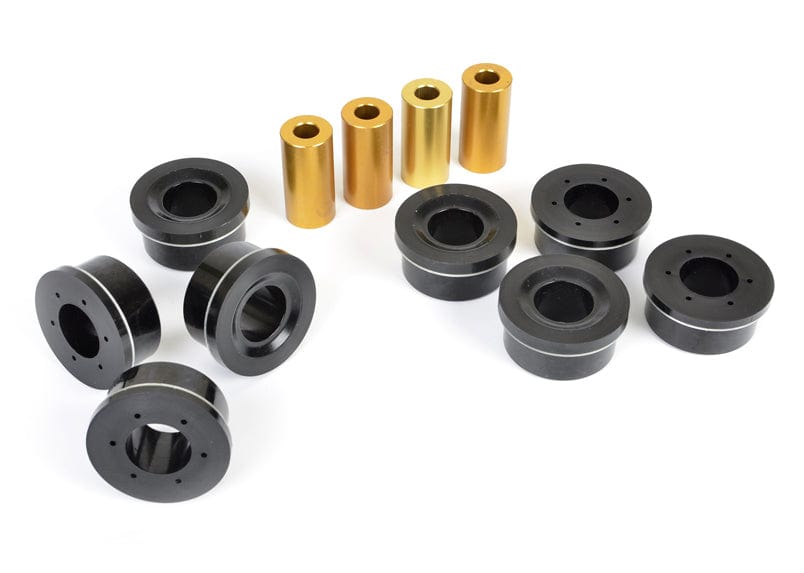

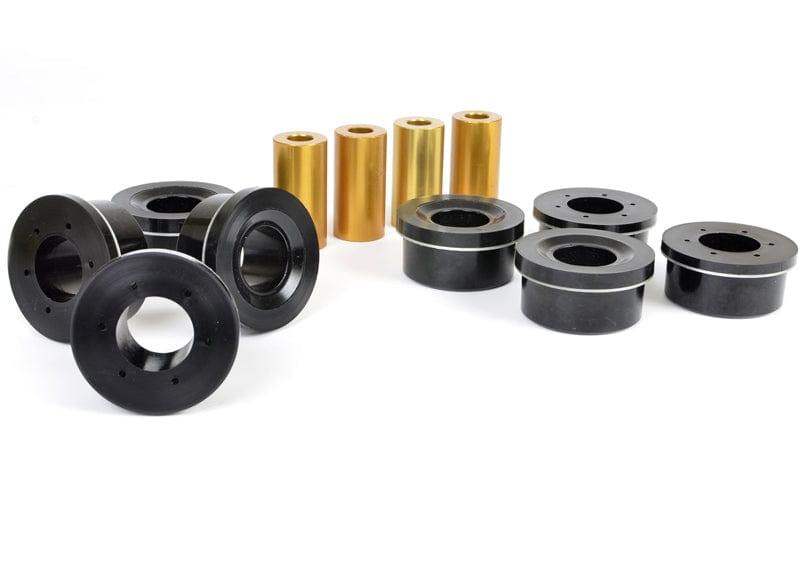

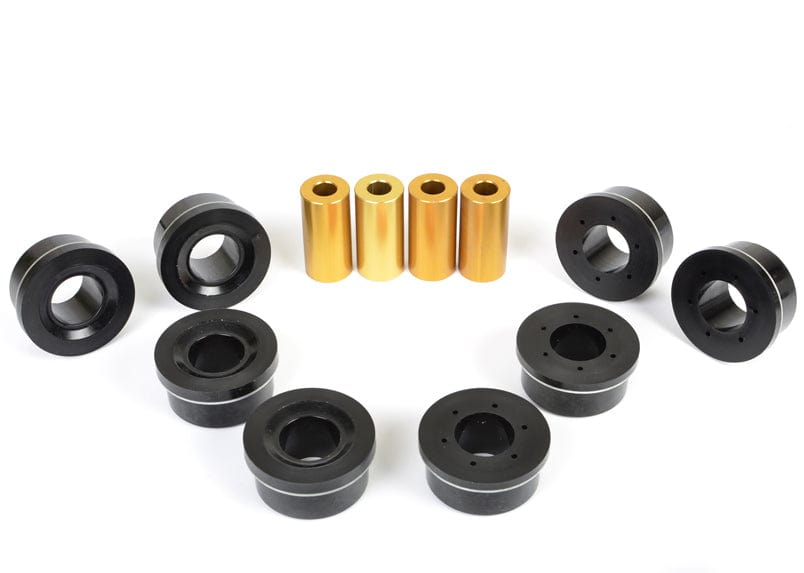

This Whiteline Rear Subframe Mount Bushing fits the 2013-2015 Subaru XV Crosstrek Limited, Premium (GP). In the box: 8 bushings and 4 tubes. Chassis code: GP. Position: rear. The part number is KDT907. Application note: Positive Traction Kit: Locks Subframe To Body.

The rear subframe is the cradle that the rear suspension arms bolt to, and the car is attached to it through rubber mounts that are soft on purpose. That softness lets the subframe shift under hard cornering or acceleration, which dulls the feel of the rear end. A firmer bushing set holds the subframe in position, so the rear responds more directly to steering and throttle. It is built as a positive traction kit, which locks the subframe in place against the body.

Whiteline rates the install as difficult and lists about 4 hours. An alignment is required after installation. To go with it on the XV Crosstrek, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Sway Bar Vehicle Link Kit.

Features

  • Finish: The metal parts are powder coated for durability.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Install guide: Step-by-step installation instructions come with it.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
Specifications
Part Number KDT907
Part Name Subframe Mount Bushing
Vehicle 2013-2015 Subaru XV Crosstrek Limited, Premium
Chassis Code GP
Installation Difficulty Difficult
Installation Time (hrs) 4
Kit Contents 8 Bushings, 4 Tubes
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Positive Traction Kit - Locks Subframe To Body

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2013SubaruCrosstrekAWDPositive Traction Kit - Locks Subframe To Body
2014SubaruCrosstrekAWDPositive Traction Kit - Locks Subframe To Body
2015SubaruCrosstrekAWDPositive Traction Kit - Locks Subframe To Body
