Product Details

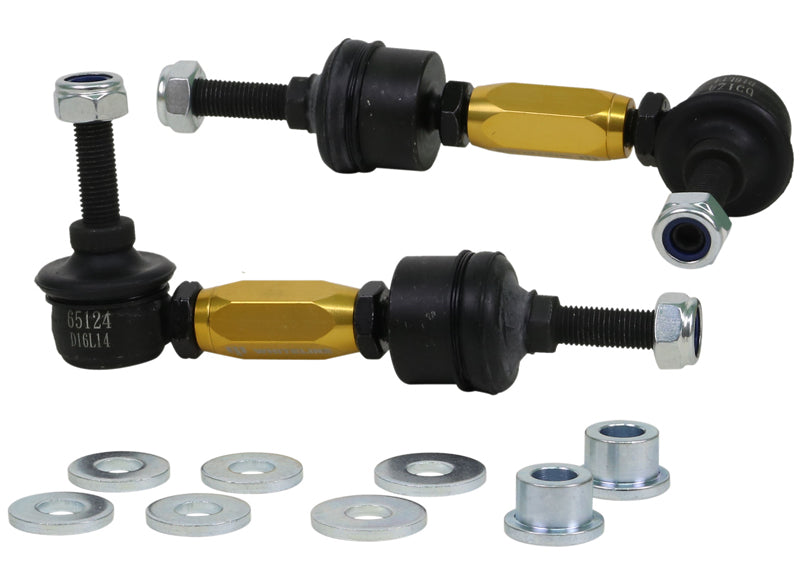

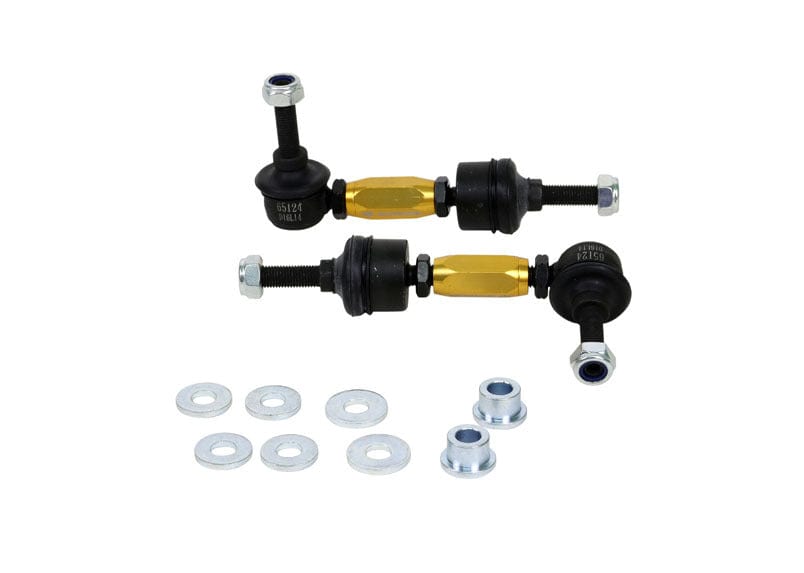

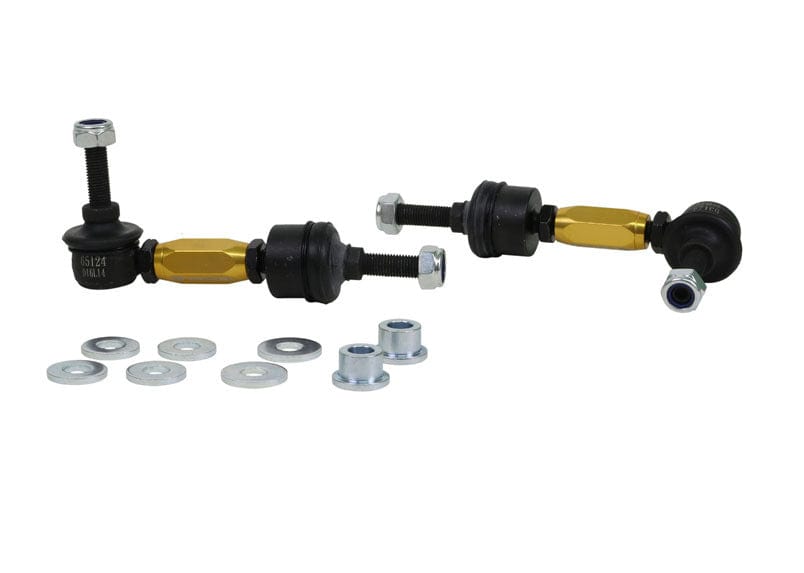

This Whiteline Adjustable Rear Sway Bar Link fits the 2013-2018 Ford Focus ST Base (C346). Part number KLC195. It goes on the rear of the vehicle. You receive 2 links, 2 spacers, and 6 washers. Application note: Adjustable Extra Heavy Duty.
A sway bar link is the short rod that ties each end of the rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.
Whiteline rates the install as moderate and lists about 1 hour. It does not require a wheel alignment. Other Whiteline parts we list for the Focus ST: Front and Rear Sway Bar Kit, Performance Lowering Spring Kit, and Heavy Duty Blade Adjustable 24mm Rear Sway Bar.
Features
- Preload-free setup: Length adjustment on the car lets you take preload out of the bar.
- Pre-greased: Comes pre-greased, so it can go straight on the car.
- Install guide: An install guide comes in the box.
- Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
- Corrosion protection: A protective plating covers the metal components to guard against corrosion.
- Construction: The body is made from high-grade alloy for strength without added weight.
Specifications
| Part Number | KLC195 |
| Part Name | Sway Bar Link |
| Vehicle | 2013-2018 Ford Focus ST Base |
| Drivetrain | FWD |
| Chassis Code | C346 |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links, 2 Spacers, 6 Washers |
| Length | 90-115 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm. |
