Product Details

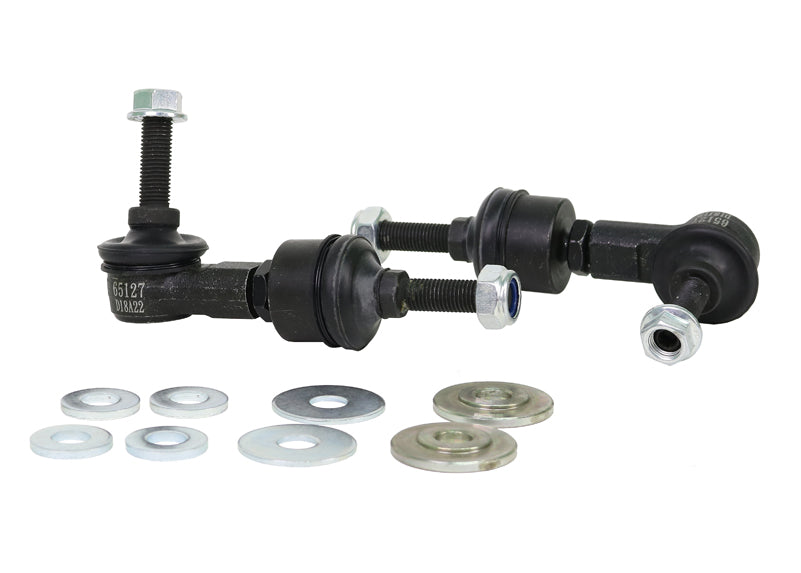

This Whiteline Rear Sway Bar Link fits the 1991-1998 Nissan 240SX Base, LE (S13/S14). Chassis code: S13/S14. In the box: 2 links. Position: rear. Application note: Suits Whiteline Sway Bar Only- Adjustable Extra Heavy Duty. The part number is KLC109.

A sway bar link is the short rod that ties each end of the rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Installation is rated moderate, with about 1 hour of work listed. No alignment is needed afterward. Other Whiteline parts we list for the 240SX: Rear Subframe Mount Bushing, 12mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.

Features

  • Material: Made from steel.
  • Compliance voids: Voids molded into the bushing allow suspension articulation and soften sharp road inputs.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Pre-greased: Comes pre-greased, so it can go straight on the car.
  • Install guide: Written install instructions are included with the part.
  • Hardware: Hardware supplied: locking nuts and washers.
Specifications
Part Number KLC109
Part Name Sway Bar Link
Vehicle 1991-1998 Nissan 240SX Base, LE
Chassis Code S13/S14
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 85-95 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Suits Whiteline Sway Bar Only- Adjustable Extra Heavy Duty

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1991Nissan240SXRWDSuits Whiteline Sway Bar Only- Adjustable Extra Heavy Duty
1992Nissan240SXRWDSuits Whiteline Sway Bar Only- Adjustable Extra Heavy Duty
1993Nissan240SXRWDSuits Whiteline Sway Bar Only- Adjustable Extra Heavy Duty
1994Nissan240SXRWDSuits Whiteline Sway Bar Only- Adjustable Extra Heavy Duty
1995Nissan240SXRWDSuits Whiteline Sway Bar Only- Adjustable Extra Heavy Duty
1996Nissan240SXRWDSuits Whiteline Sway Bar Only- Adjustable Extra Heavy Duty
1997Nissan240SXRWDSuits Whiteline Sway Bar Only- Adjustable Extra Heavy Duty
1998Nissan240SXRWDSuits Whiteline Sway Bar Only- Adjustable Extra Heavy Duty
