Product Details

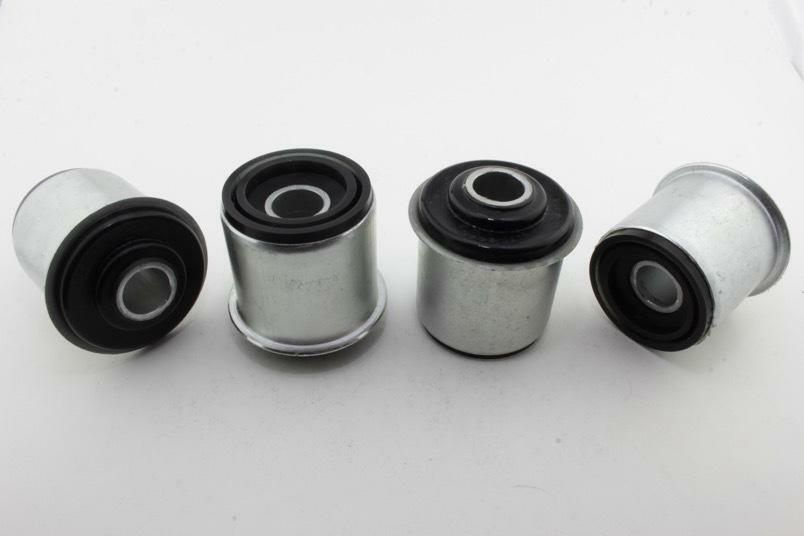

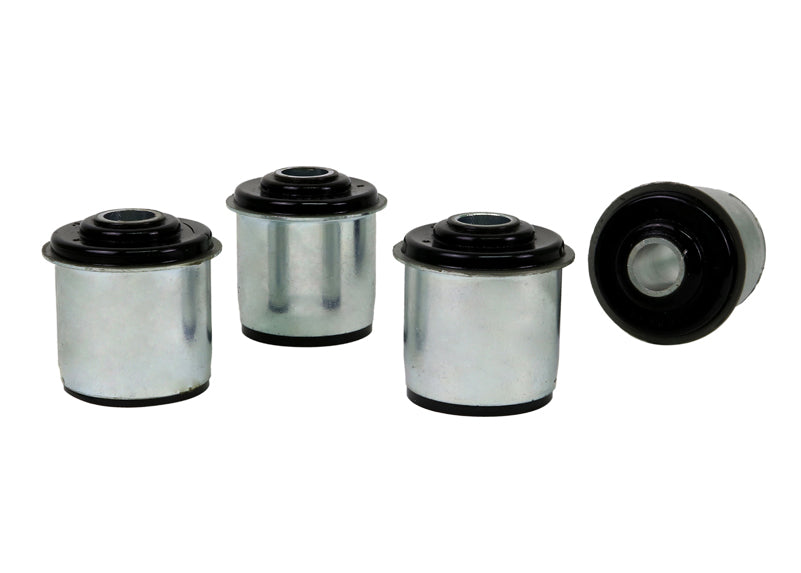

This Whiteline Rear Subframe Mount Bushing fits the 1989-1998 Nissan 240SX SE (S13/S14). The kit contains 4 shell bushings. Part number W92446. Placement: rear.

The rear subframe is the cradle that the rear suspension arms bolt to, and the car is attached to it through rubber mounts that are soft on purpose. That softness lets the subframe shift under hard cornering or acceleration, which dulls the feel of the rear end. A firmer bushing set holds the subframe in position, so the rear responds more directly to steering and throttle.

Expect a moderate job of about 4 hours. Plan on a wheel alignment afterward. To go with it on the 240SX, see 12mm Adjustable Front Camber Bolts, Front and Rear Sway Bar Kit, and Rear Sway Bar Link.

Features

  • Compliance voids: Voids molded into the bushing allow suspension articulation and soften sharp road inputs.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Bushing material: Made of polyurethane, which resists deflection better than soft rubber.
  • Bonded design: The bushing is bonded for strength where loads are highest.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Serviceable: A grease fitting is included, so the part can be re-greased as it ages.
Specifications
Part Number W92446
Part Name Subframe Mount Bushing
Vehicle 1989-1998 Nissan 240SX SE
Chassis Code S13/S14
Bushing Color Black
Bushing Height 76.6 mm
Bushing Inside Diameter 22.3 mm
Bushing Material Polyurethane
Bushing Outside Diameter 66.3 mm
Color Black
Durometer 72
Grade Type Performance
Grease Fitting Included No
Greaseable Yes
Installation Difficulty Moderate
Installation Time (hrs) 4
Kit Contents 4 Shell Bushings
Material Polyurethane
Mounting Brackets Included No
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1989Nissan240SXRWD
1990Nissan240SXRWD
1991Nissan240SXRWD
1992Nissan240SXRWD
1993Nissan240SXRWD
1994Nissan240SXRWD
1995Nissan240SXRWD
1996Nissan240SXRWD
1997Nissan240SXRWD
1998Nissan240SXRWD
