Product Details

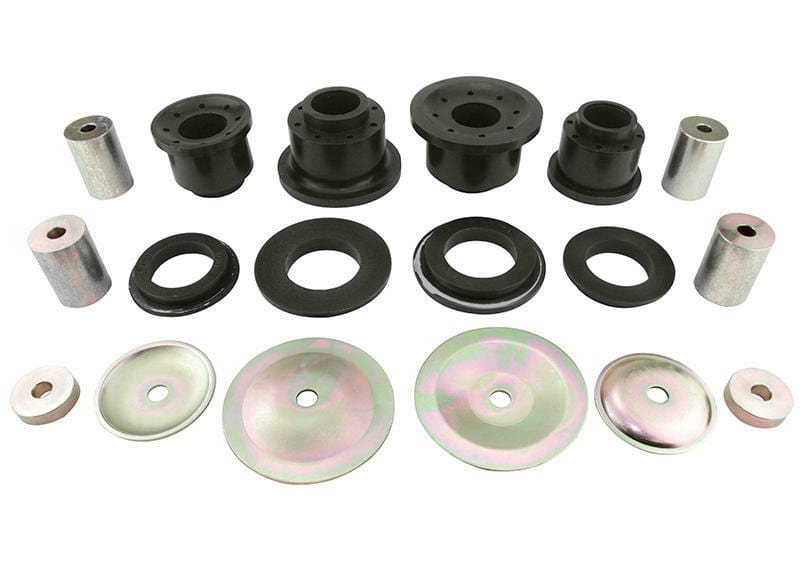

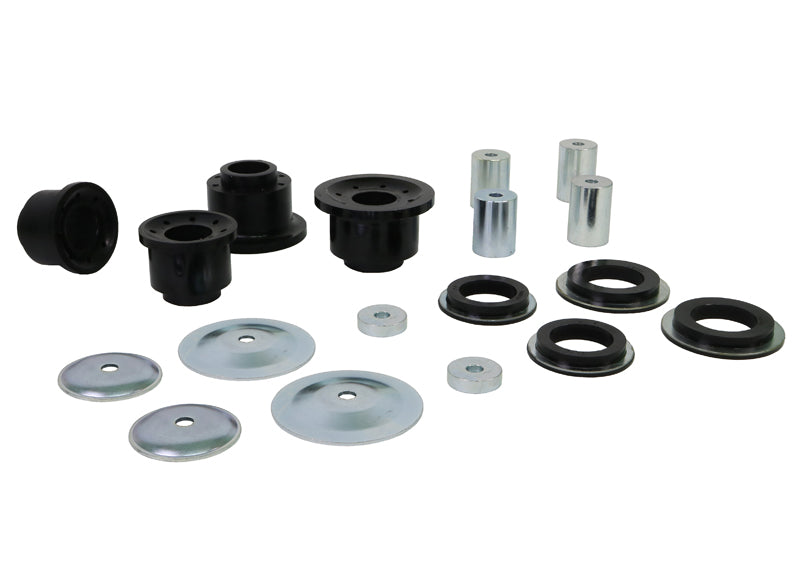

This Whiteline Rear Subframe Mount Bushing fits the 2015 Chrysler 300C Platinum (LD). You receive 8 bushings, 4 tubes, 6 washers, an install guide, and grease. The part number is W93343. It goes on the rear of the vehicle.

The rear subframe is the cradle that the rear suspension arms bolt to, and the car is attached to it through rubber mounts that are soft on purpose. That softness lets the subframe shift under hard cornering or acceleration, which dulls the feel of the rear end. A firmer bushing set holds the subframe in position, so the rear responds more directly to steering and throttle.

Installation is rated difficult, with about 4 hours of work listed. Plan on a wheel alignment afterward. We also list Front and Rear Sway Bar Kit, Rear Trailing Arm Lower Front Bushing, and Rear Sway Bar Mount Bushing Kit for the 300C.

Features

  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Install guide: Whiteline packs an install guide with it.
Specifications
Part Number W93343
Part Name Subframe Mount Bushing
Vehicle 2015 Chrysler 300C Platinum
Drivetrain RWD/AWD
Chassis Code LD
Bushing Color Black
Bushing Material Polyurethane
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 4
Kit Contents 8 Bushings, 4 Tubes, 6 Washers, Install Guide, Grease
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2015Chrysler300CRWD
2015Chrysler300CAWD
