Product Details

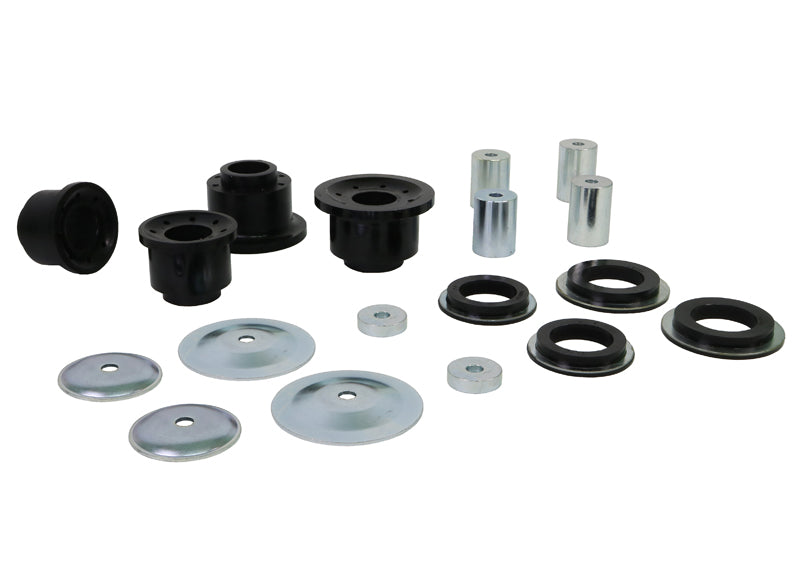

This Whiteline Rear Subframe Mount Bushing fits the 2013 Chrysler 300 SRT8 Core (LD). Part number W93343. In the box: 8 bushings, 4 tubes, 6 washers, an install guide, and grease. This part is for the rear of the vehicle.
The rear subframe is the cradle that the rear suspension arms bolt to, and the car is attached to it through rubber mounts that are soft on purpose. That softness lets the subframe shift under hard cornering or acceleration, which dulls the feel of the rear end. A firmer bushing set holds the subframe in position, so the rear responds more directly to steering and throttle.
Whiteline rates the install as difficult and lists about 4 hours. Get the car aligned once it is back on the ground. To go with it on the 300 SRT8, see Front and Rear Sway Bar Kit, Rear Trailing Arm Lower Front Bushing, and Rear Sway Bar Mount Bushing Kit.
Features
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Install guide: Whiteline packs an install guide with it.
- Finish: Powder coat finish guards the metal against chips and corrosion.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Corrosion protection: Plated finish keeps rust off the hardware.
Specifications
| Part Number | W93343 |
| Part Name | Subframe Mount Bushing |
| Vehicle | 2013 Chrysler 300 SRT8 Core |
| Drivetrain | RWD |
| Chassis Code | LD |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 4 |
| Kit Contents | 8 Bushings, 4 Tubes, 6 Washers, Install Guide, Grease |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
