Product Details

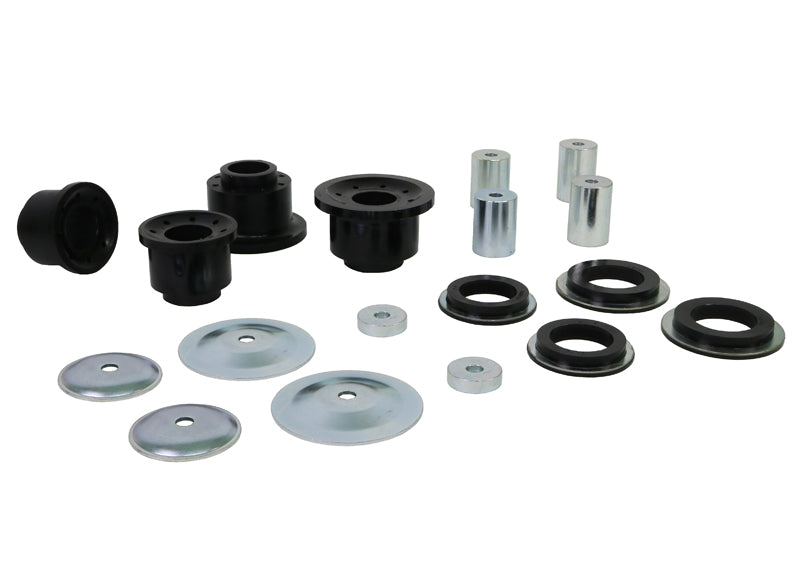

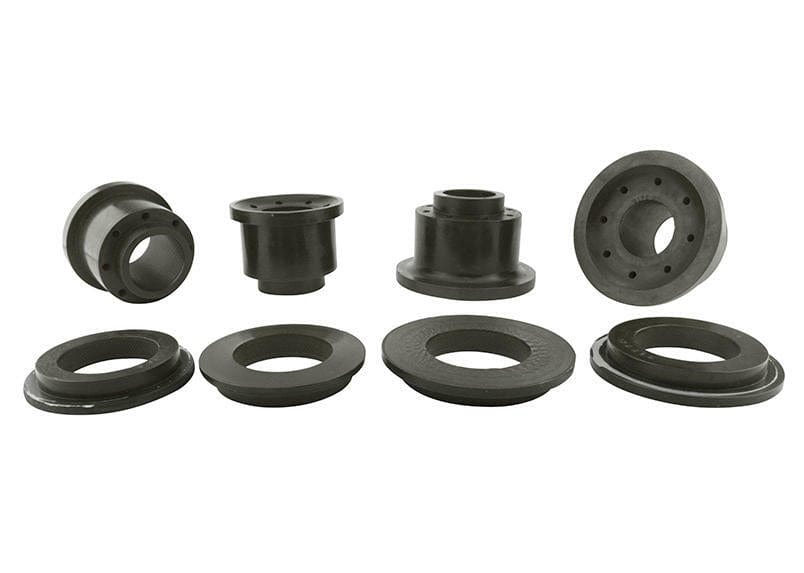

This Whiteline Rear Subframe Mount Bushing fits the 2006-2008 Dodge Magnum SRT8 (LX). You receive 8 bushings, 4 tubes, 6 washers, an install guide, and grease. This part is for the rear of the vehicle. Part number W93343.

Rubber subframe mounts compress and stretch every time the car loads up, and the subframe moves with them. Reducing that lost motion tends to show up as steadier tracking and a more immediate rear end in corners.

Whiteline rates the install as difficult and lists about 4 hours. An alignment is required after installation. Other Whiteline parts we list for the Magnum: Front and Rear Sway Bar Kit, Rear Trailing Arm Lower Front Bushing, and Front Lower Radius Arm Bushing.

Features

  • Bushing material: Made of polyurethane, which resists deflection better than soft rubber.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
Part Number W93343
Part Name Subframe Mount Bushing
Vehicle 2006-2008 Dodge Magnum SRT8
Drivetrain RWD/AWD
Chassis Code LX
Bushing Color Black
Bushing Material Polyurethane
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 4
Kit Contents 8 Bushings, 4 Tubes, 6 Washers, Install Guide, Grease
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2006DodgeMagnumRWD
2006DodgeMagnumAWD
2007DodgeMagnumRWD
2007DodgeMagnumAWD
2008DodgeMagnumRWD
2008DodgeMagnumAWD
