Product Details

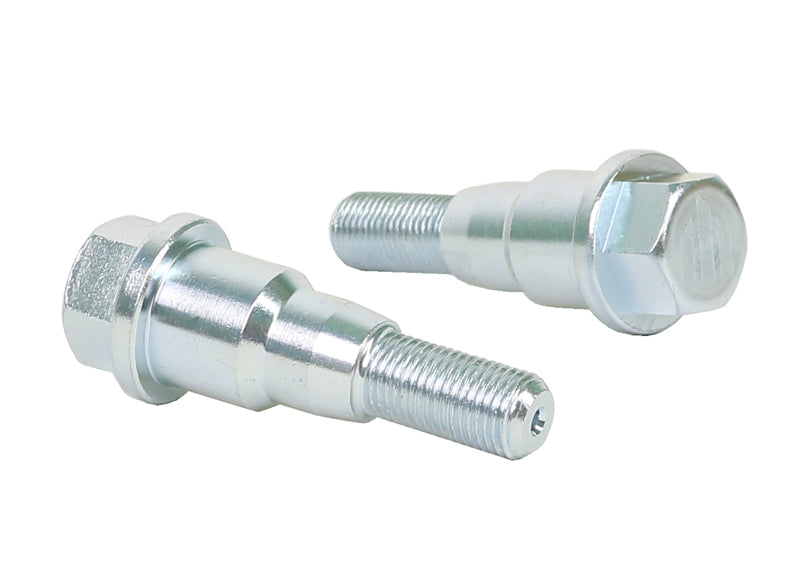

This Whiteline Rear Subframe Lock Kit fits the 2002-2007 Subaru Impreza WRX Base (GD/GG). Whiteline's note for this fit: Locks Diff Carrier To Body. Order it as part number KSB750. The kit contains 2 bolts. Position: rear.

The subframe is bolted to the body through rubber mounts that let it move. A lock kit holds the subframe in place against the body, so it cannot shift under cornering loads and the rear wheels keep the alignment they were set to.

Whiteline rates the install as moderate and lists about 2 hours. Plan on a wheel alignment afterward. To go with it on the Impreza WRX Base, see Front Control Arm Lower Inner Rear Bushing, Rear Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Install guide: Written install instructions are included with the part.
Specifications
Part Number KSB750
Part Name Subframe Lock Kit
Vehicle 2002-2007 Subaru Impreza WRX Base
Drivetrain AWD
Chassis Code GD/GG
Bolt Length 55 mm
Bolt Thread Diameter 12 mm
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 2 Bolts
Mounting Brackets Included No
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Locks Diff Carrier To Body

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2002SubaruWRXAWDLocks Diff Carrier To Body
2003SubaruWRXAWDLocks Diff Carrier To Body
2004SubaruWRXAWDLocks Diff Carrier To Body
2005SubaruWRXAWDLocks Diff Carrier To Body
2006SubaruWRXAWDLocks Diff Carrier To Body
2007SubaruWRXAWDLocks Diff Carrier To Body
