Product Details

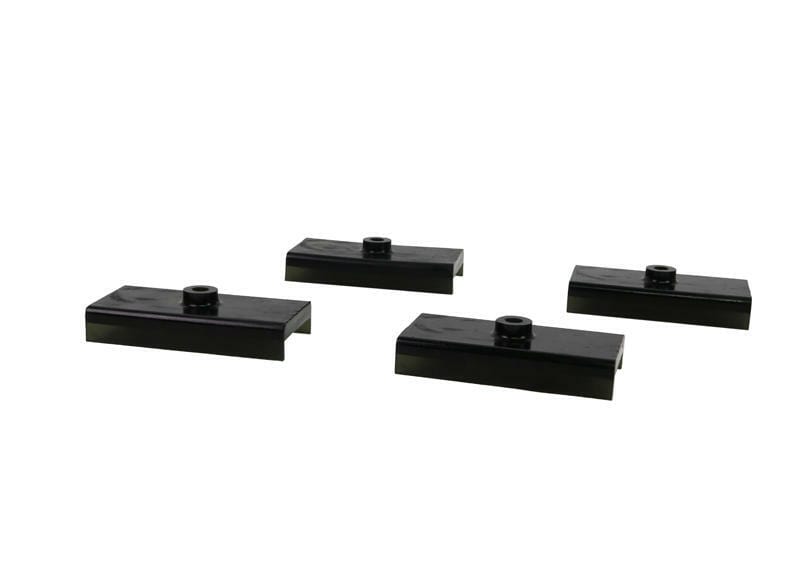

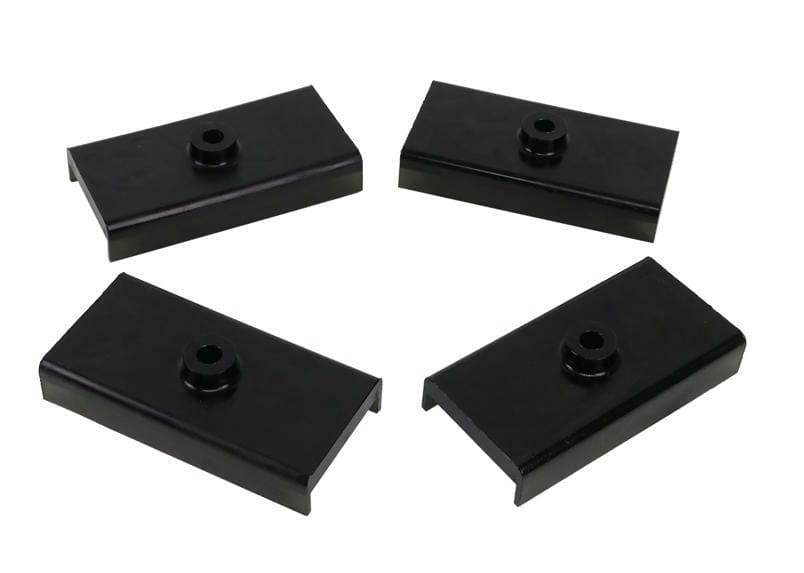

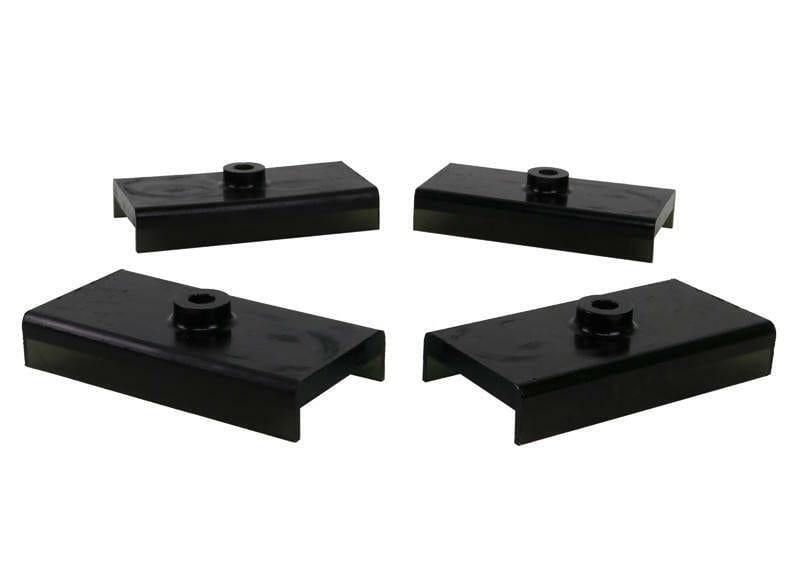

This Whiteline Rear Leaf Spring Saddle Insulator Kit fits the 1965-1973 Ford Mustang Base (Fox). You receive 4 bushings. Placement: rear. The part number is W71413. Whiteline's note for this fit: Some modifications to spring plate center hole might be needed in addition to longer U-bolts.

Replacing the saddle insulator restores the cushion between the spring and its seat. That brings back the original ride height at that point and takes out the squeaks and shifting that a worn one allows. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a moderate job of about 1.5 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Mustang: Front Sway Bar Washer Kit, Front Sway Bar Link, and Tie Rod Boot Kit.

Specifications
Part Number W71413
Part Name Leaf Spring Saddle Insulator
Vehicle 1965-1973 Ford Mustang Base
Drivetrain RWD
Chassis Code Fox
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 1.5
Kit Contents 4 Bushings
Material Polyurethane
Mounting Hardware Included No
Shape Rectangular
Thickness 21 mm
Universal or Specific Fit Specific Fit
Vehicle Placement Rear
Wheel Alignment Required Yes
Width 63.5 mm
Notes Suits vehicles with 2.5 inch wide springs with 1 inch diameter pins - some modifications to spring plate center hole might be needed in addition to longer U-bolts

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1965FordMustangRWDSuits vehicles with 2.5 inch wide springs with 1 inch diameter pins - some modifications to spring plate center hole might be needed in addition to longer U-bolts
1966FordMustangRWDSuits vehicles with 2.5 inch wide springs with 1 inch diameter pins - some modifications to spring plate center hole might be needed in addition to longer U-bolts
1967FordMustangRWDSuits vehicles with 2.5 inch wide springs with 1 inch diameter pins - some modifications to spring plate center hole might be needed in addition to longer U-bolts
1968FordMustangRWDSuits vehicles with 2.5 inch wide springs with 1 inch diameter pins - some modifications to spring plate center hole might be needed in addition to longer U-bolts
1969FordMustangRWDSuits vehicles with 2.5 inch wide springs with 1 inch diameter pins - some modifications to spring plate center hole might be needed in addition to longer U-bolts
1970FordMustangRWDSuits vehicles with 2.5 inch wide springs with 1 inch diameter pins - some modifications to spring plate center hole might be needed in addition to longer U-bolts
1971FordMustangRWDSuits vehicles with 2.5 inch wide springs with 1 inch diameter pins - some modifications to spring plate center hole might be needed in addition to longer U-bolts
1972FordMustangRWDSuits vehicles with 2.5 inch wide springs with 1 inch diameter pins - some modifications to spring plate center hole might be needed in addition to longer U-bolts
1973FordMustangRWDSuits vehicles with 2.5 inch wide springs with 1 inch diameter pins - some modifications to spring plate center hole might be needed in addition to longer U-bolts
