Product Details

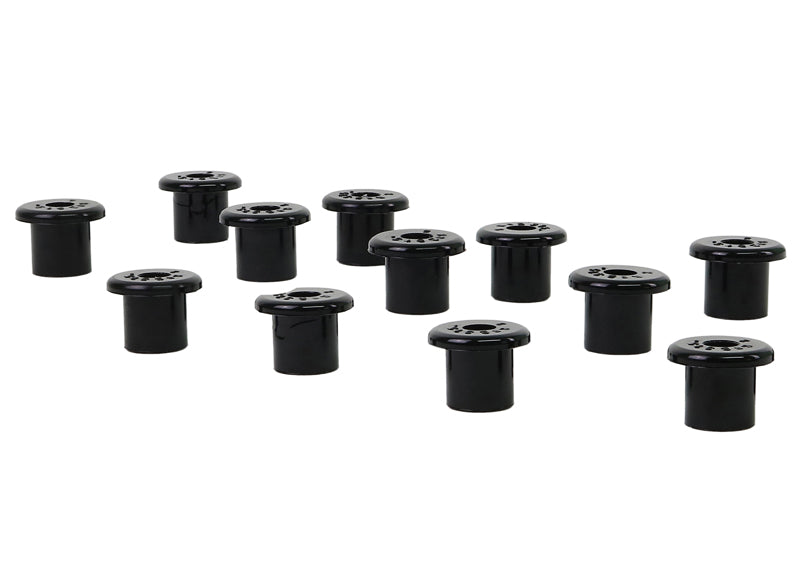

Fitted to the 1976-1983 Jeep CJ5: the Whiteline Rear Leaf Spring and Shackle Bushing Kit. Whiteline part number: W72315. It goes on the rear of the vehicle. In the box: 12 bushings. Chassis code: CJ. Application note: Suits some Models.
Leaf spring bushings do a lot of work: the spring flexes and changes length as it moves, and the eye and shackle pivots absorb it. Replacing worn ones puts the axle back where it belongs. The polyurethane used here deflects much less than the original rubber under the same load.
Expect a moderate job of about 3 hours. An alignment is required after installation. Working on the same car? We also list Body Mount Bushing Kit, Transmission Mount Bushing Kit, and Front Lower Shock Absorber Bushing Kit for the Jeep CJ5.
Features
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Bushing material: Polyurethane bushings flex far less than rubber ones.
- Install guide: Whiteline packs an install guide with it.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
Specifications
| Part Number | W72315 |
| Part Name | Leaf Spring Bushings |
| Vehicle | 1976-1983 Jeep CJ5 |
| Chassis Code | CJ |
| Bushing Color | Black |
| Bushing Inside Diameter | 11 mm |
| Bushing Length | 25.6 mm |
| Bushing Material | Polyurethane |
| Bushing Outside Diameter | 22.2 mm |
| Durometer | 85 |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 12 Bushings |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | 22mm OD - suits some Models |
