Product Details

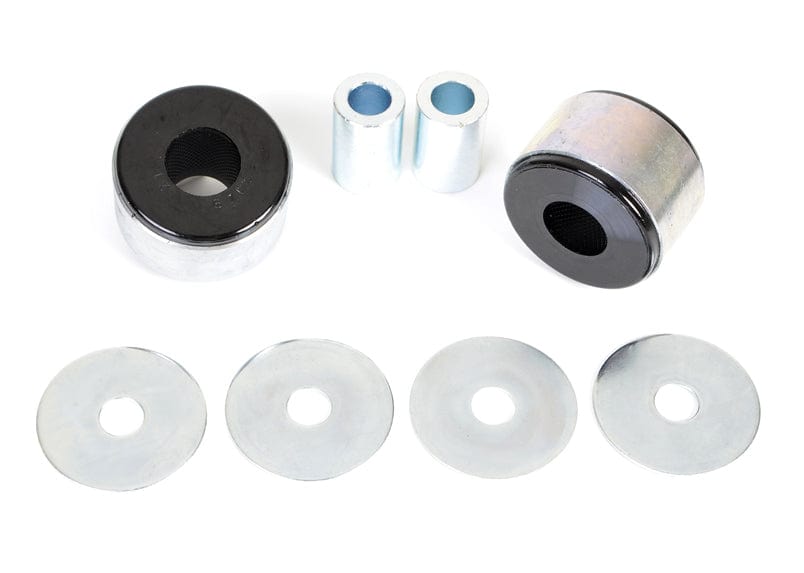

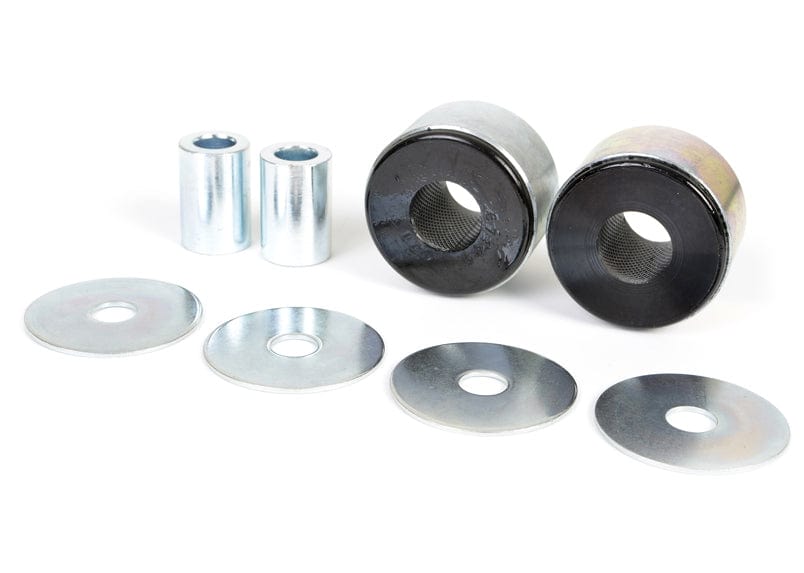

This Whiteline Rear Differential Mount In Cradle Bushing fits the 2001-2004 Subaru Outback L.L. Bean (BE/BH/BP). Included: 2 shell bushings, 2 tubes, 4 washers, an install guide, and grease. Chassis code: BE/BH/BP. It goes on the rear of the vehicle. Whiteline part number: KDT906.

Holding the differential still is about predictability. Rubber that is too soft lets it twist and move as load comes on and off, so the car squats and lurches a little more than it needs to. A firmer mount keeps it where it should be. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a difficult job of about 4 hours. Plan on a wheel alignment afterward. Other Whiteline parts we list for the Outback: Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Front Bushing, and 14mm Adjustable Front Camber Bolts.

Features

  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Install guide: Whiteline packs an install guide with it.
  • Finish: The metal parts are powder coated for durability.
  • Bonded design: Bonding adds durability in high-load use.
Specifications
Part Number KDT906
Part Name Differential Mount Bushing
Vehicle 2001-2004 Subaru Outback L.L. Bean
Drivetrain AWD
Chassis Code BE/BH/BP
Bushing Color Black
Bushing Material Polyurethane
Color Black
Durometer 85
Installation Difficulty Difficult
Installation Time (hrs) 4
Kit Contents 2 Shell Bushings, 2 Tubes, 4 Washers, Install Guide, Grease
Material Polyurethane
Mounting Hardware Included No
Universal or Specific Fit Specific Fit
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Positive diff retention OD = 60mm

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2001SubaruOutbackAWDPositive diff retention OD = 60mm
2002SubaruOutbackAWDPositive diff retention OD = 60mm
2003SubaruOutbackAWDPositive diff retention OD = 60mm
2004SubaruOutbackAWDPositive diff retention OD = 60mm
