Product Details

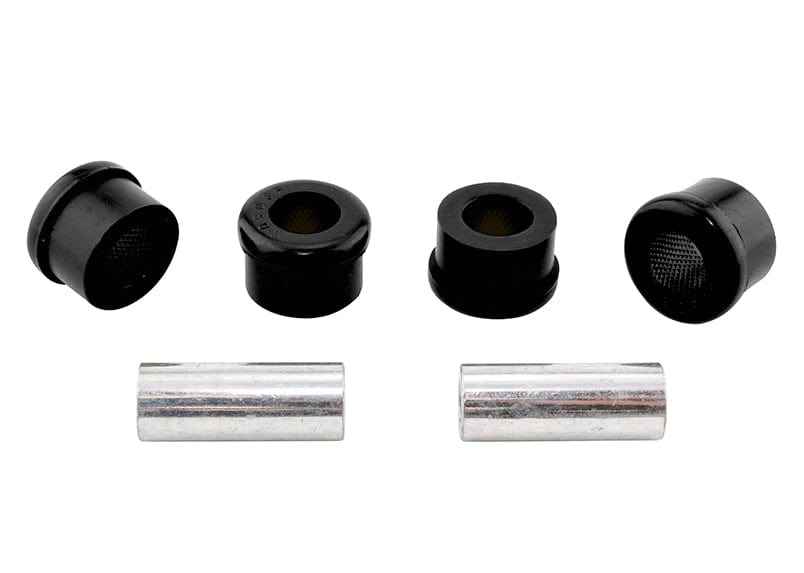

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2003-2004 Subaru Outback H6, L.L. Bean (BP), L.L. Bean. Trims: H6 and L.L. Bean. This part is for the front of the vehicle. In the box: 4 bushings and 2 tubes. Order it as part number W0506.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated difficult, with about 2.5 hours of work listed. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front Steering Rack And Pinion Mount Bushing for the Outback.

Features

  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Material: Made from polyurethane.
Specifications
Part Number W0506
Part Name Control Arm Bushing
Vehicle 2003-2004 Subaru Outback H6, L.L. Bean
Chassis Code BP
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 37.4 mm
Bushing Quantity 4 Bushings
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2003SubaruOutbackAWD
2004SubaruOutbackAWD
