Product Details

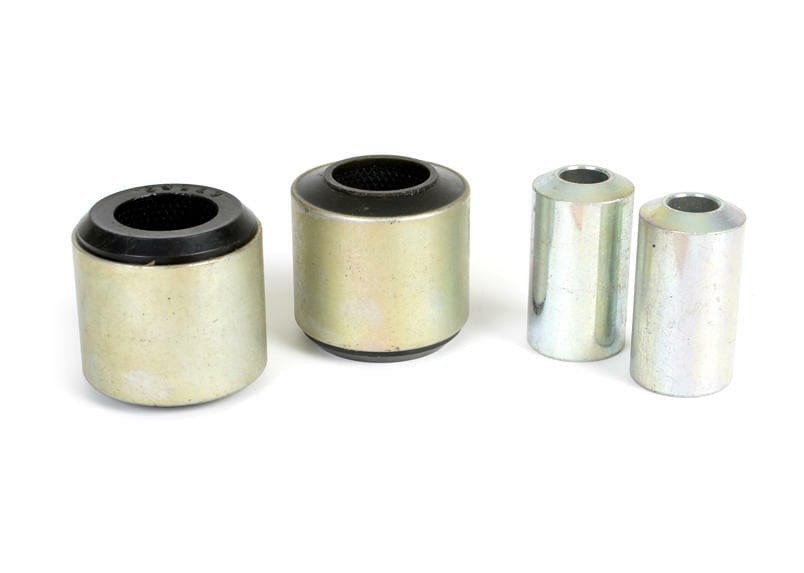

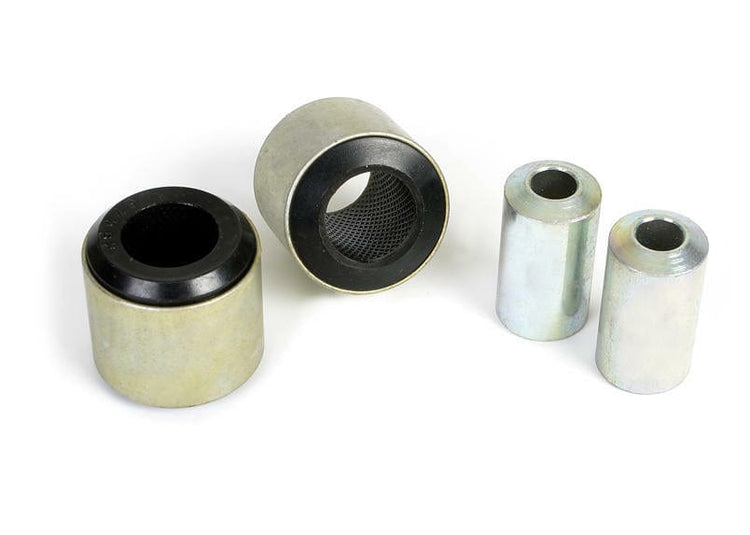

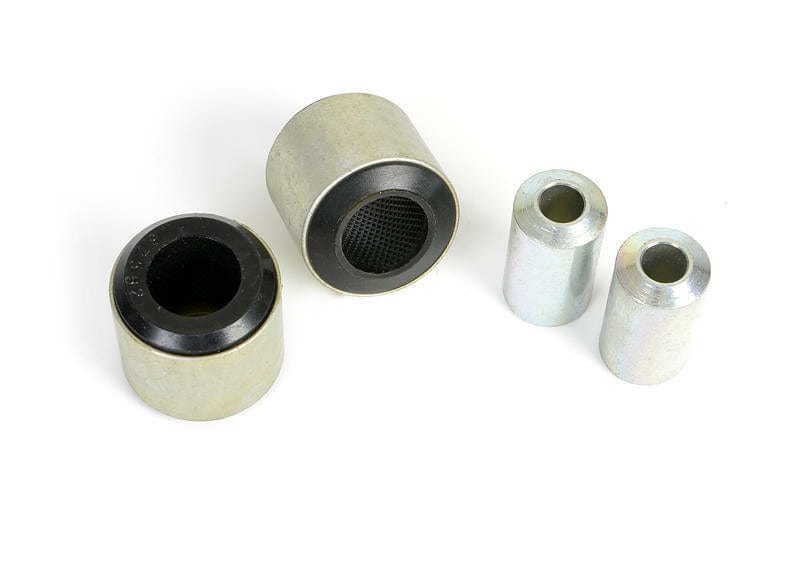

This Whiteline Rear Control Arm Upper Rear Outer Bushing fits the 2006 BMW 325i 3 Series (E90). In the box: 2 shell bushings and 2 tubes. Application note: Fits outer position of OEM arm 33-32-2-406-292. This part is for the rear of the vehicle. Whiteline part number: W63402.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated moderate, with about 3 hours of work listed. Plan on a wheel alignment afterward. To go with it on the 325i 3 Series, see Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Rear Subframe Mount Bushing.

Features

  • Material: The part is made of polyurethane.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Bonded design: A bonded design adds strength for high load applications.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
Part Number W63402
Part Name Control Arm Bushing
Vehicle 2006 BMW 325i 3 Series
Chassis Code E90
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 45.4 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Fits outer position of OEM arm 33-32-2-406-292

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2006BMW325iRWDFits outer position of OEM arm 33-32-2-406-292
