Product Details

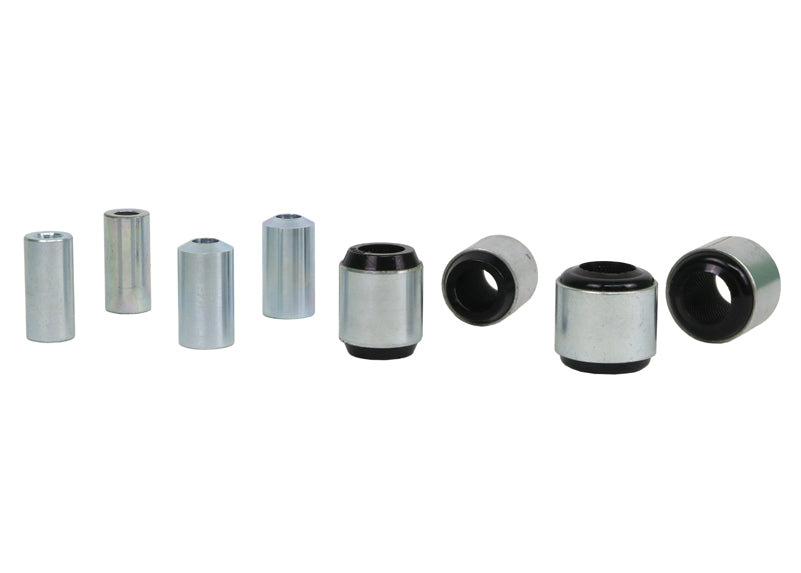

This Whiteline Rear Control Arm Upper Rear Bushing fits the 2012-2016 BMW 328i xDrive 3 Series (F30). Included: 4 shell bushings and 4 tubes. Position: rear. Application note: Fits OEM Arm 33-32-6-792-543 (Left) and 33-32-6-792-544 (Right). The part number is W63593. Chassis code: F30.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a moderate job of about 2 hours. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, Rear Subframe Mount Bushing, and Rear Differential Mount Bushing for the 328i xDrive 3 Series.

Features

  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Bonded design: The bushing is bonded for extra strength under heavy loads.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Install guide: Instructions for fitting are packed in the box.
  • Material: Polyurethane construction.
  • Corrosion protection: Plated finish keeps rust off the hardware.
Specifications
Part Number W63593
Part Name Control Arm Bushing
Vehicle 2012-2016 BMW 328i xDrive 3 Series
Chassis Code F30
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 38 mm
Bushing 2 Inner Diameter 12.2 mm
Bushing Quantity 4 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 4 Shell Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Fits OEM Arm 33-32-6-792-543 (Left) and 33-32-6-792-544 (Right)

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2012BMW328iAWDFits OEM Arm 33-32-6-792-543 (Left) and 33-32-6-792-544 (Right)
2013BMW328iAWDFits OEM Arm 33-32-6-792-543 (Left) and 33-32-6-792-544 (Right)
2014BMW328iAWDFits OEM Arm 33-32-6-792-543 (Left) and 33-32-6-792-544 (Right)
2015BMW328iAWDFits OEM Arm 33-32-6-792-543 (Left) and 33-32-6-792-544 (Right)
2016BMW328iAWDFits OEM Arm 33-32-6-792-543 (Left) and 33-32-6-792-544 (Right)
