Product Details

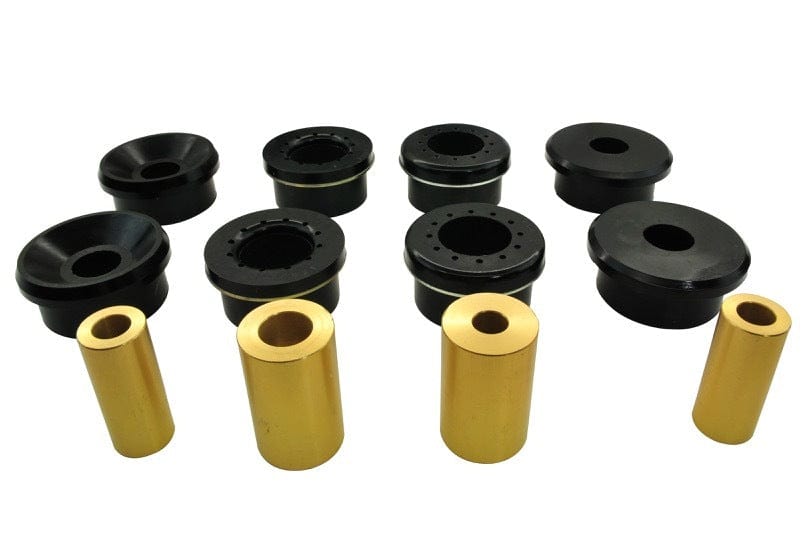

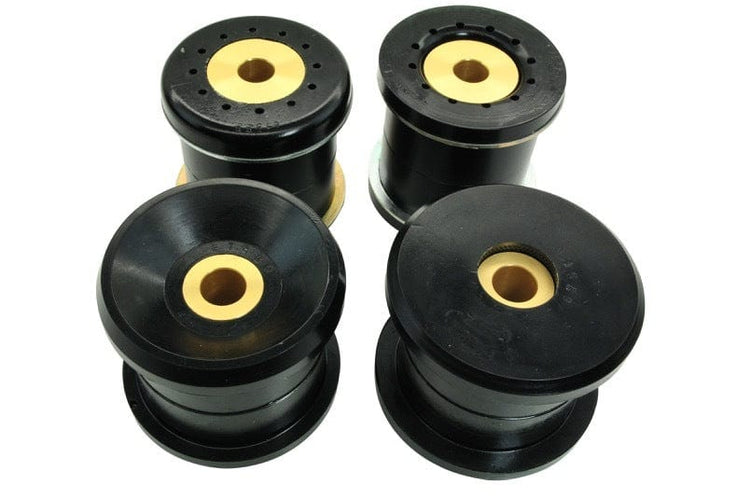

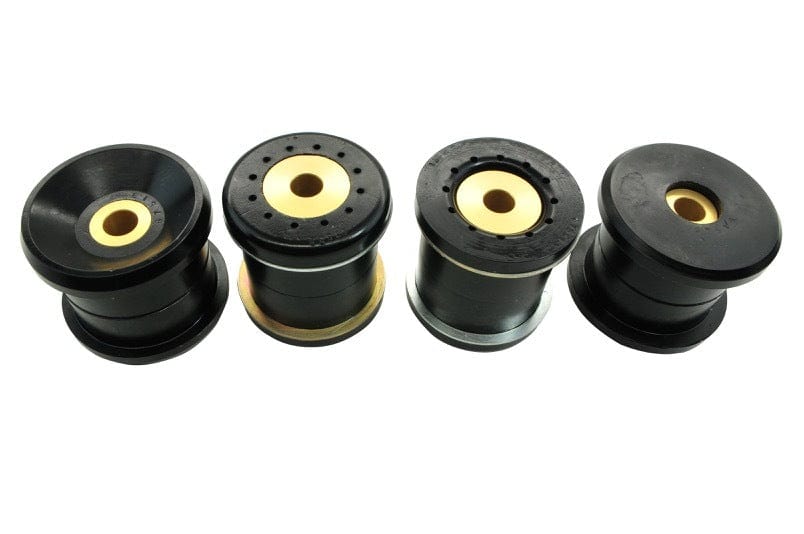

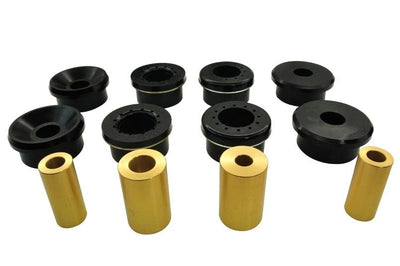

This Whiteline Rear Subframe Mount Bushing fits the 2009-2016 BMW 328i xDrive 3 Series (E90/F30). Included: 8 bushings, 4 tubes, an install guide, and grease. Position: rear. The part number is KDT917.

The rear subframe is the cradle that the rear suspension arms bolt to, and the car is attached to it through rubber mounts that are soft on purpose. That softness lets the subframe shift under hard cornering or acceleration, which dulls the feel of the rear end. A firmer bushing set holds the subframe in position, so the rear responds more directly to steering and throttle.

Installation is rated difficult, with about 4 hours of work listed. Plan on a wheel alignment afterward. To go with it on the 328i xDrive 3 Series, see Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Rear Lower Trailing Arm Bushing.

Features

  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Finish: The metal parts are powder coated for durability.
  • Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
  • Install guide: An install guide comes in the box.
Specifications
Part Number KDT917
Part Name Subframe Mount Bushing
Vehicle 2009-2016 BMW 328i xDrive 3 Series
Chassis Code E90/F30
Bushing Color Black
Bushing Material Polyurethane
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 4
Kit Contents 8 Bushings, 4 Tubes, Install Guide, Grease
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009BMW328iAWD
2010BMW328iAWD
2011BMW328iAWD
2012BMW328iAWD
2013BMW328iAWD
2014BMW328iAWD
2015BMW328iAWD
2016BMW328iAWD
